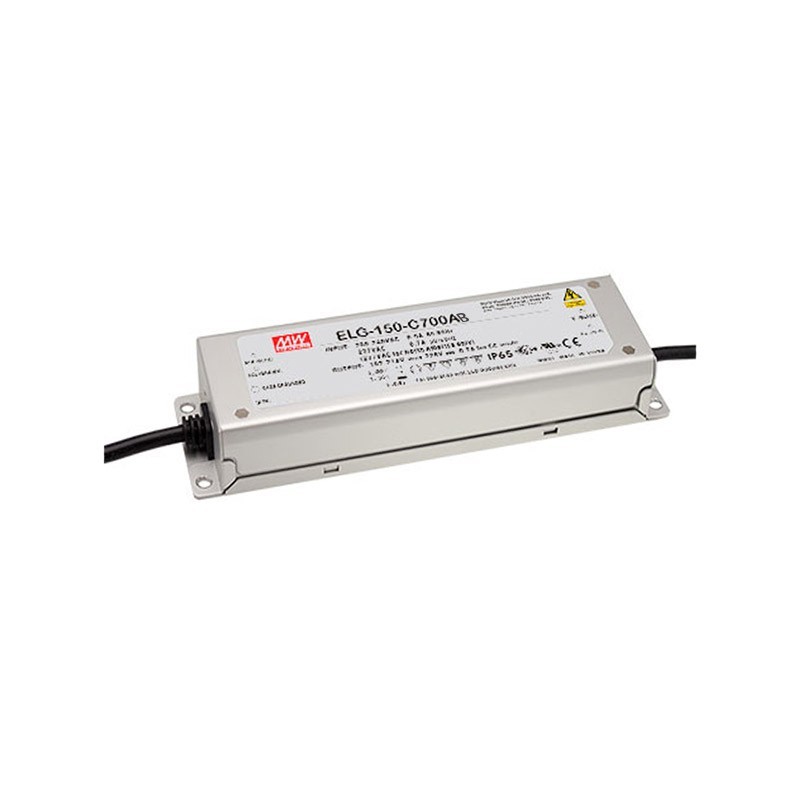

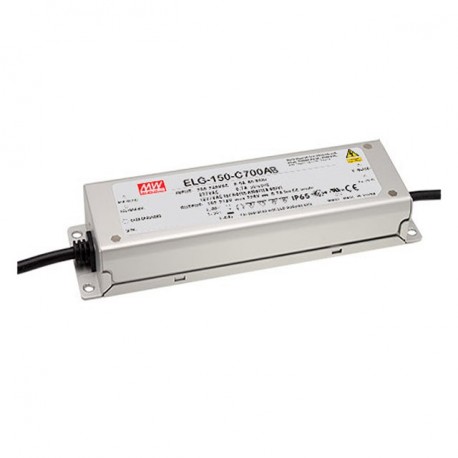

ELG-150-C500AB-3Y MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, 3 wire in..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in metal boxIP65.

Input range100-305Vca47-63Hz.

Output in constant current500mA.Adjustable by external potentiometer (250-500mA).

Range of output voltage with current mode constant150 to 300Vccaccording to demand load.

Power:150W.

Efficiency typical:92%.

Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.

Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.

Input class I with grounding.Input with 3 wires for ground.

Factor corrector, power>0.95to 230vac at full load.

Consumption without load <0.5 W.

Operating temperature range of caseTcfrom-40ºCup+90ºC.

Dimensions (Length x Width x Height):219 x 63 x 35.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version AB, the output current can be adjusted byexternal potentiometerlocated in the housing of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.

The series ELG are LED drivers, class I grounded.This version 3 has a ground wire on the input (3 wire). You can order versions in that it uses the chassis of the source as a connection to the earth, removing from the end of the model -3Y. For example ELG-150-C500AB.

With metal housing IP65. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.

Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
