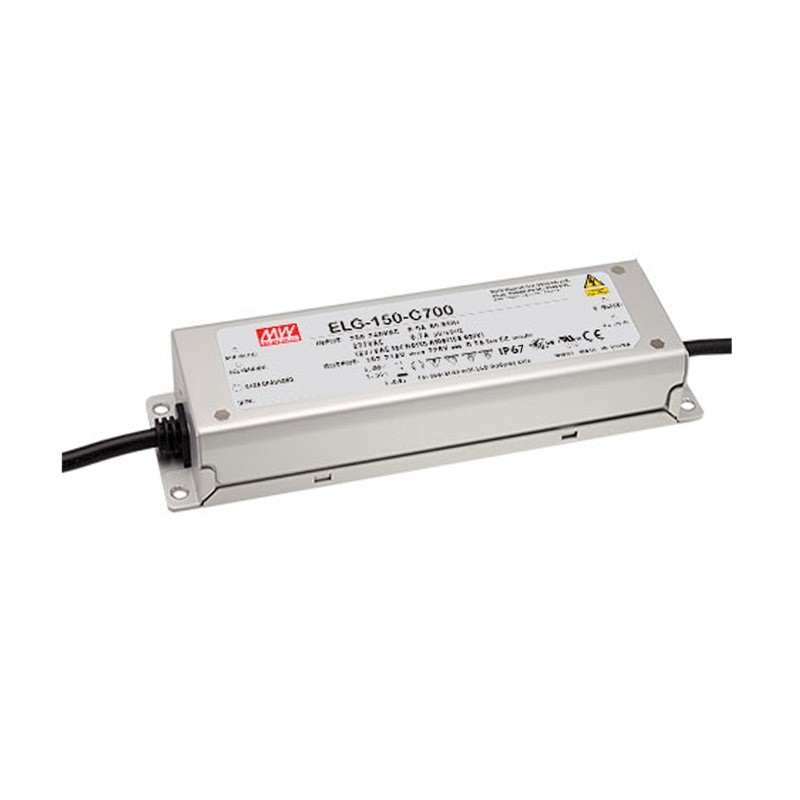

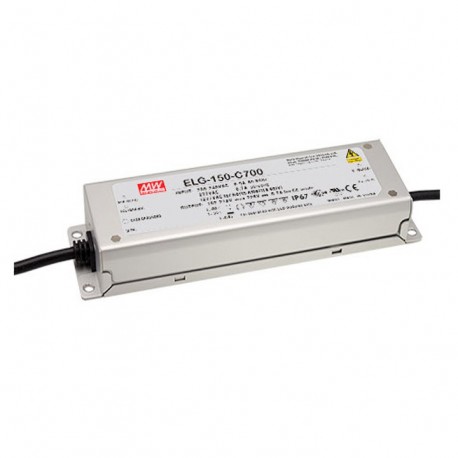

ELG-150-C1400D2 MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, Output 107V..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in metal box sealedIP67.

Input range100-305Vca47-63Hz.

Output in constant current1400mA.

Range of output voltage with current mode constant54 to 107Vccaccording to demand load.

Power:149,8 W.

Efficiency typical:91%.

Regulation Smart Dimmingwith programmable functions.

Input class I with grounding.

Factor corrector, power>0.95to 230vac at full load.

Consumption without load <0.5 W.

Operating temperature range of caseTcfrom-40ºCup+90ºC.

Dimensions (Length x Width x Height):219 x 63 x 35.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.

The series ELG are LED drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-150-C1400D2-3Y.

With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.

The version of D2 with Smart Timer Dimming allows you to program through a PC, the curves of regulation of the driver. We can set up between 2 and 5 different levels for the night. You can make bends fixed on the basis of a few hours of operation, a proportional adjustment which can adjust the intervals according to the power-on hours, or an adjustment with the point of midnight, which maintains the central level fixed, and adjusts the times of the curves of the ends. In this way we can achieve greater energy savings and adjust the brightness levels according to the level of occupation.

In addition to these adjustments in the versions of D2 you can limit the maximum output current, for example if we use a driver 1050mA and you only need to 900mA can be adjusted to the maximum value of the output current. We can also go to offsetting the loss of brightness of the LEDs with the hours of operation to always maintain a level of constant brightness.

The adjustment of the transitions between different levels of regulation can be set up, so we can get a flowing transition between levels, for example the 100% and 50%. Each level you can set your own transition.

This driver also saved the hours of operation of the driver and the LED module, and allows a function to Override, which allows us to easily disable from the box on the programming in for example the case of an accident or a party we would want to have the maximum light level for a night.

The driver does not have a clock physical that is always working, if not that you have a timer that counts the operating hours of the past 7 days and based on those hours applied to the appropriate settings. Can be set up so that no account is taken of readings below a certain number of hours for which no account is taken of possible outages or problems with the programming of on and off of the box.

With version Smart Timer dimming can achieve energy savings most important, always maintaining a level of brightness appropriate and with a stand-alone system that enables us to avoid any maintenance cost.

To be able to program the computer we need the programming interface SDP-001 that allows you to connect the drivers ELG to a PC through the USB port. To be able to program the computer we need to connect it to the LED modules and the power grid.
