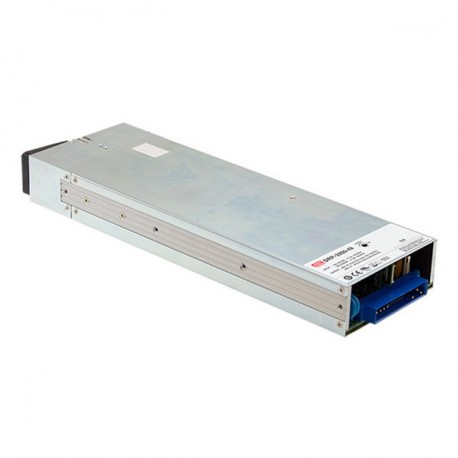

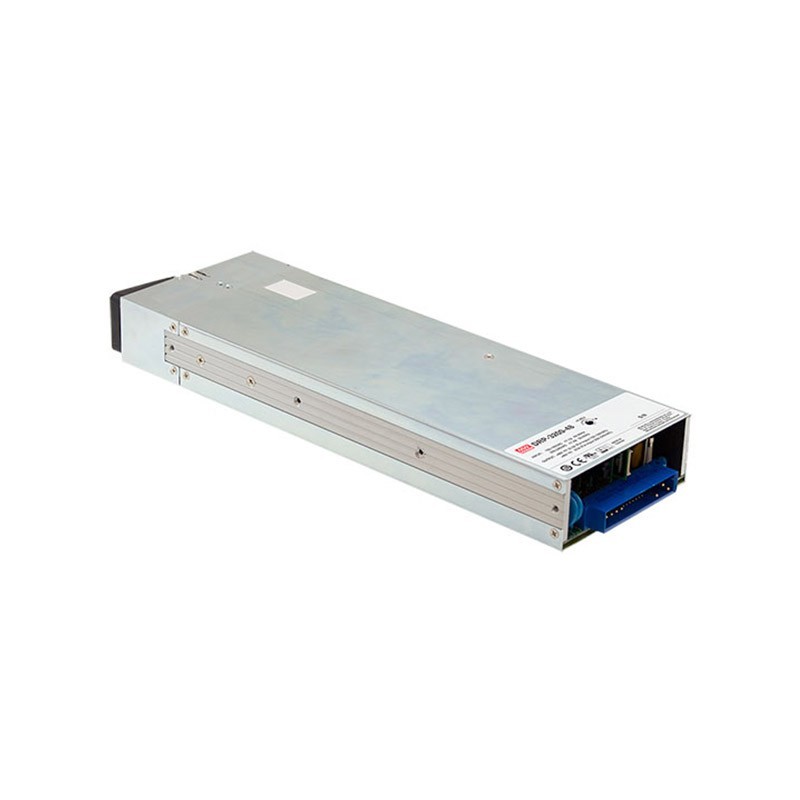

DRP-3200-48 MEANWELL AC-DC Single output Rack front end power supply, Output 48VDC / 67A, 1U low profile, Co..
DRP-3200-48
MEANWELL
AC-DC Single output Rack front end power supply, Output 48VDC / 67A, 1U low profile, Cooling by built-in DC fan, remote ON/OFF, Hot-swap, Built-in OR-ing FET
DIN RAIL > DRP
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | DRP-3200-48 |
|---|---|
| Long Description | Power supply for 19" Rack programmable viaITwoCand PMBus. FormatRack 19". Range of universal input90-264vac.47-63Hz. Output voltage48vdc.Adjustable by potentiometer (47,5-58,8 Vcc) using external signal 0,4-4,7 Vdc from 50% to 125%or configurable by protocol ITwoCorPMBus. Output intensity67A. Range of output current 0-67A according to demand load. Adjustable by external signal from 20% up to 100%or configurable by protocol ITwoCorPMBus. Power:3216W. Efficiency typical:94.5 per cent. Paralelizable up to 4 units with sharing of active current and diode mosfet protection integrated in the source. Hot Swap. Change in hot Factor corrector, power>0,97to 230vac at full load. Protocols ITwoCandPMBus. Remote on / off. Auxiliary outputs of 5V AT 0.3 A and-12V at 0.8 A. 2-colored LED indicator the status of the equipment. Protection against short circuit, over load, over voltage and temperature. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:325 x 107 x 41. 5 years of warranty. Manufacturer: MEAN WELL. The power supplies of the series DRP-3200 are designed to install in the Rack DHP-1UT that supports up to 4 sources DRP-3200.These sources allow you to configure both the output current as the output voltage through RTwoC and PMBus, and optionally via CANBus. Can be connected in parallel up to 4 sources protected by a diode Mosfet for the protection of the current investment. They have a wide range of temperature from -30ºC up to +70ºC. Have a high efficiency and auxiliary outputs of 5V and 12V. The function Hot-Swap or hot-swap allows us to replace any damaged equipment without having to stop the system, or to increase the power at any time. Protection against short circuit, over load, over voltage and temperature. The series DRP-3200 is certified, CE, UL, EAC, UL/en/IEC 62368-1, IN 55032/55024. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | 19"Rack |
| Subformato | 1U |
| Applications | Industrial, Telecommunications |
| Series | DRP-3200 |
| State | New |
| Warranty (Years) | 5,00 |
| Height (mm) | 41.00 |
| Width (mm) | 107.00 |
| Long/Background | 325.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Pin |
| Output voltage | 48,00 |
| Power (W) | 3.216,00 |
| Peak Power (W) | Three thousand two hundred sixteen |
| Output connector | Screw-Type |
| Fan | Yes |
| Alarms | Over Temperature, Input Fault, Output OK, Overload |
| Interface | I2C, PMBus |
| Isolation (V) | 3.000,00 |
| Approvals | EC, EAC, UL |
