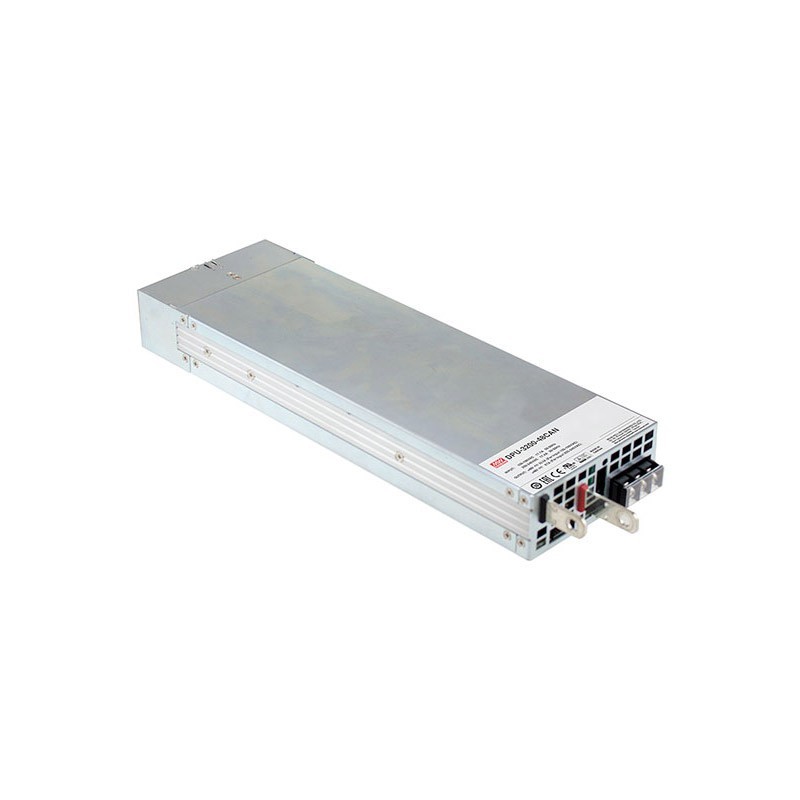

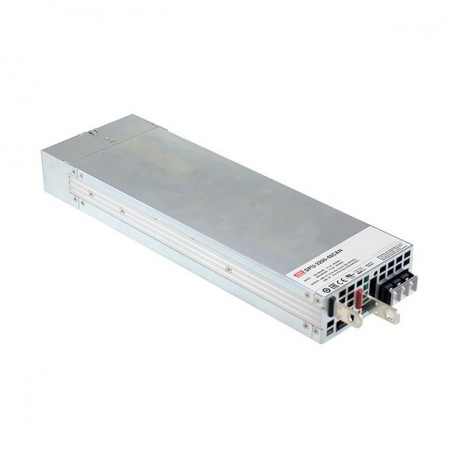

DPU-3200-48 MEANWELL AC-DC Single output enclosed power supply, Output 48VDC / 67A, 1U low profile, Cooling ..

Programmable power supply usingITwoC.

Format in metal box.

Range of universal input90-264vac.47-63Hz.

Output voltage48vdc.Adjustable by potentiometer (47,5-58,8 Vcc) using external signal 0,4-4,7 Vdc from 50% to 125%or configurable by protocol I^TwoC.

Output intensity67A. Range of output current 0-67A according to demand load. Adjustable by external signal from 20% up to 100%or configurable by protocol I^TwoC.

Power:3216W.

Efficiency typical:94.5 per cent.

Paralelizable up to 5 units with sharing of active current and diode mosfet protection integrated in the source.

Factor corrector, power>0,97to 230vac at full load.

Protocol I^TwoC.

Remote on / off.

Role of sensing in order to compensate the drop voltage on the output cables.

Auxiliary outputs of 5V 0.3 Aand 12V 0.8 A.

2-colored LED indicator the status of the equipment.

Protection against short circuit, over load, over voltage and temperature.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:380 x 140 x 60.

5 years of warranty.

Manufacturer: MEAN WELL.

The power supplies of the series DPU-3200 have a design encapsulated with metal case. Designed for applicationsindustrial automation and control factory, application of radio-frequency, redundant systems, laser machines and instruments of measurement and testing..These sources allow you to configure both the output current as the output voltage through R^TwoC or an analog signal 0-5V, or optionally using the protocolsPMBus andCANBus.

The sources DPU-3200 carry integrated the function of sensing to compensate the voltage drop on the output cables (depending on the thickness of the cable and the amount of amps, as well as the distance causes it to lose tension, compensándolo this function). Is can compensate for up to 0.5 V.

Can be connected in parallel up to 5 sourceswith sharing active power (up to 16,000 W) to provide greater power.They have a wide range of temperature from -30ºC up to +70ºC and a high-efficiency, with auxiliary outputs of 5V/300mA, and 12V/800mA. Protection against short circuit, over load, over voltage and temperature.

The series DRP-3200 is certified, CE, UL, EAC, UL/en/IEC 62368-1, IN 55032/55024.
