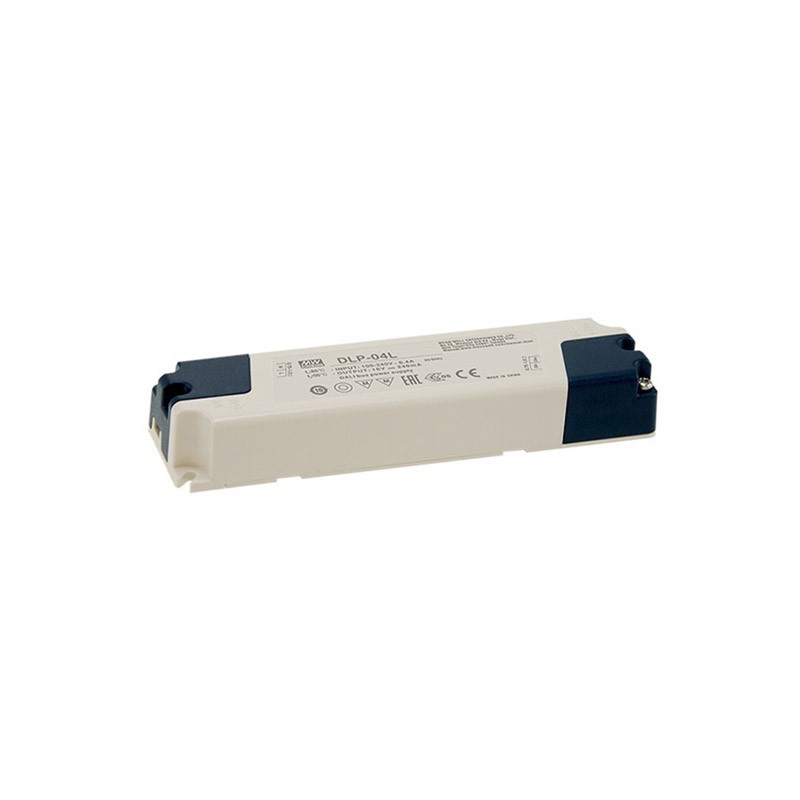

DLP-04L MEANWELL DALI Ultra Slim Bus Power Supply, Output 18.7VDC / 0.24A, Linear type
DLP-04L
MEANWELL
DALI Ultra Slim Bus Power Supply, Output 18.7VDC / 0.24A, Linear type
LED DRIVERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | DLP-04L |
|---|---|
| Long Description | Power supply for BUS DALI. Especially designed to supply the communication buses DALI. Format type-linear. Input range90-264vac.47-63Hz. Output in constant current240mA. Range of output voltage with current mode constantBy 15.3 to 18.7 Vdcaccording to demand load. Power:To 3.84 W. Input class II without grounding. Consumption without load: <0.5 W. Operating temperature range of caseTcfrom-20ºCup+60ºC. Dimensions (Length x Width x Height) [mm]:145 x 38 x 22. 3 years of warranty. Manufacturer: MEAN WELL. The series DLP-04, are the sources of supply specially designed to feed the BUS to DALI. With high efficiency and small size, providing 240mA for gear control DALI devices and DALI, which does not have circuits of power. Low consumption without load. These sources have protection against short circuits or overloads, withstanding peaks of the input of up to 300Vac for 5 seconds. Ventilation for free circulation of air, and evidence of burning at 100% load. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | Narrow |
| Applications | Building automation, Lighting |
| Series | DLP-04L |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | 22.00 |
| Width (mm) | 38.00 |
| Long/Background | 145.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Screw-Type |
| Intensity of Minimum Output (mA) | 240,00 |
| Intensity of Output Maximum (mA) | 240,00 |
| Output current mA | 200, 250 |
| Power (W) | To 3.84 |
| Peak Power (W) | 3.84 |
| Output connector | Screw-Type |
| Isolation (V) | 3.000,00 |
| Approvals | CE, ENEC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
