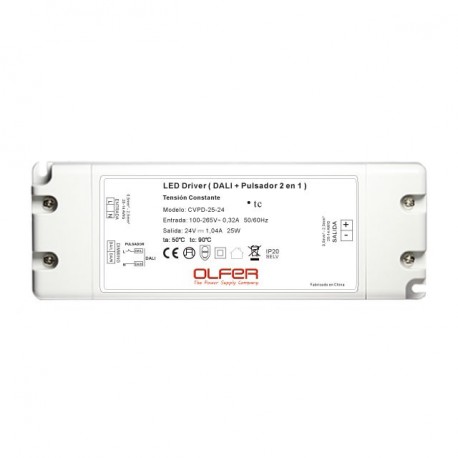

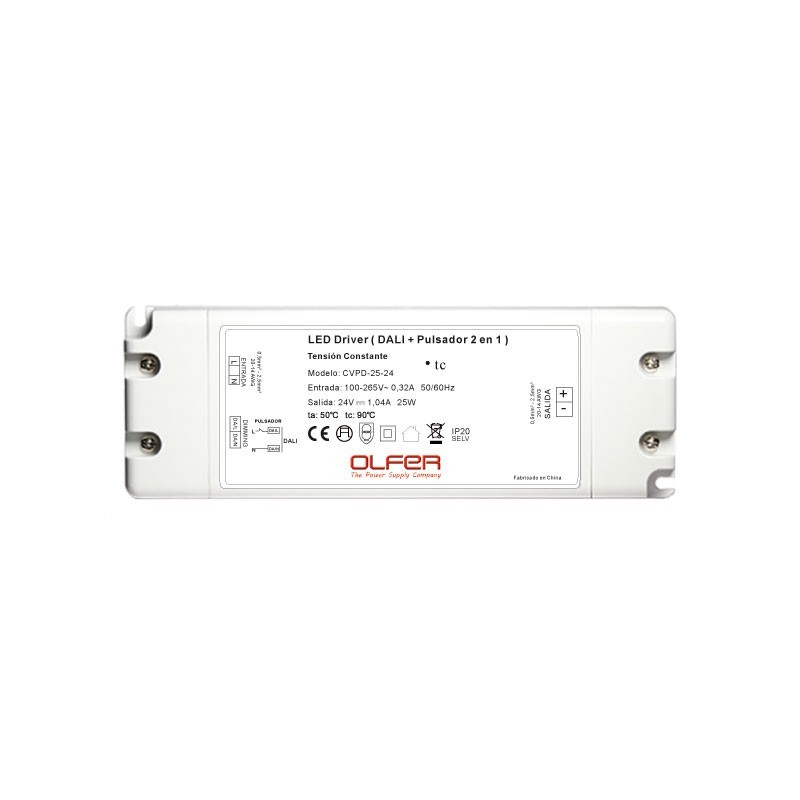

CVPD-25-24 MEANWELL AC-DC Multi-Stage LED driver Constant Current (CC), Input: 100-265VAC. Output: 24VDC. 1,..
Reference: CVPD-25-24
Manufacturer: MEANWELL
Description:
AC-DC Multi-Stage LED driver Constant Current (CC), Input: 100-265VAC. Output: 24VDC. 1,04A. Power: 25W. Dimming with DALI & push
Categories:
- MEANWELL > OPEN FRAME > PD
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| Name | CVPD-25-24 |
|---|---|
| Long Description | LED driver dimmable by DALI and push button. Specially designed to feed LED strips. Format in plastic boxIP20. Input range100-265Vca47-63Hz. Output voltage24vdc. Output intensity1,04 To. Range of current output 0-1,04 according To the demand load. Power:25W. Efficiency typical:82%. Regulation DALIof 0.1% to 100% of the output intensity and push button. Certificate to DALI. Input class II without grounding. Factor corrector, power>0,9to 230vac at full load. Operating temperature range of caseTcfrom-40ºCup+50ºC. Dimensions (Length x Width x Height):155 x 54 x 20mm. 5 years of warranty. Manufacturer:OLFER. The number CVPD-25 are LED drivers with dimming DALI and push button, with output constant voltage with PFC included. This source is designed to work directly with LED strips or LED bulbs of 24V which is fed at constant voltage and are adjustable. Has a high efficiency as well as the active correction of the power factor. Allows the switching on and off by the regulation and has a minimum value of regulation of 0.1%, thus providing a perfect adjustment.. The number CVPD-25 are LED drivers class II without grounding. With plastic housing, IP20. These sources are designed for applications with LED strips, LED panels, signage, retro-lighting, furniture and interior design. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | OLFER |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP20 |
| Applications | Lighting |
| Series | CVPD |
| State | New |
| Warranty (Years) | 5,00 |
| Height (mm) | 20.00 |
| Width (mm) | 54.00 |
| Long/Background | 155.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 100,00 |
| AC input Max | 265,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Output voltage | 24,00 |
| Power (W) | 25,00 |
| Peak Power (W) | Twenty five |
| Dimming | DALI, Push-button |
| Output connector | Cable |
| Isolation (V) | 3.750,00 |
| Approvals | EC |
