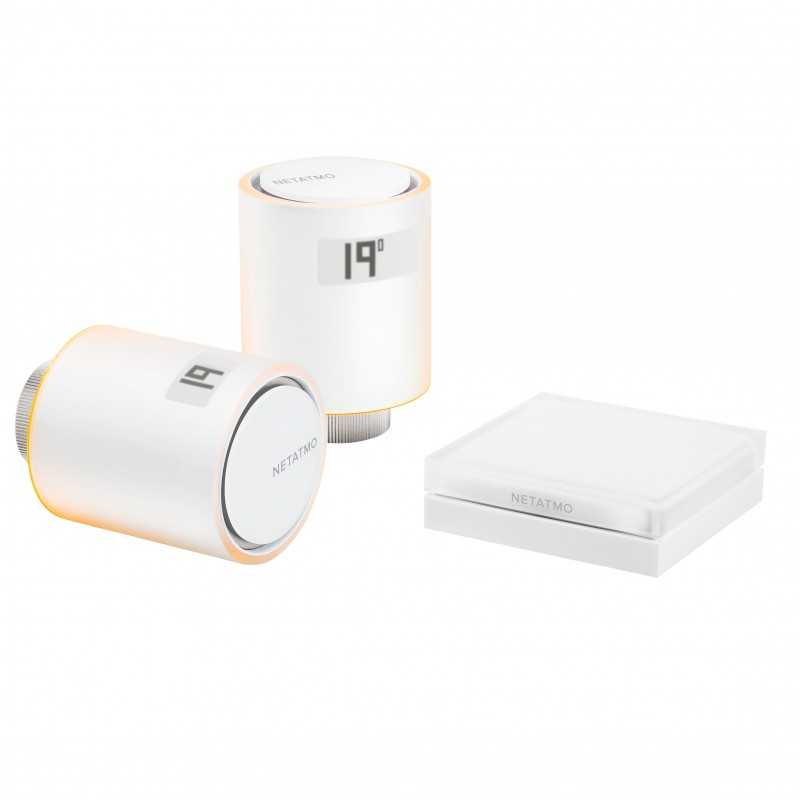

NVP-PRO LEGRAND NETATMO SMART VALVE PACK

For homes with community, collective or district heating. They can replace existing thermostatic or manual valves. Installation of the valves horizontally or vertically. Continuous temperature measurement thanks to 2 integrated sensors. It allows the control of the hot water flow and a precise adjustment of the temperature. Functions: - Differentiated heating programming in each room: allows you to heat the house whenever you want, how you want and whenever you need it. - Away and Anti-freeze modes and Open Window Detection function: allow you to save energy. - Remote control of the thermostatic heads from a smartphone. If necessary, possibility of using the classic hand control. Measuring temperature: 0 °C to 50 °C/+/- 0.5 °C. Set temperature: 5 °C to 30 °C with setting +/- 0.5 °C. Valve measurements: Ø 58 mm, depth 80mm (with fixing ring). Relay measurements: 24x83x83mm. Composition: - 2 intelligent thermostatic valves - 1 relay - 10 radiator adapters suitable for most brands of water radiators such as Danfoss, Heimeier, Giacomini, Honeywell, etc. - 2x4 color adhesives (yellow, blue, orange, green) - 2x2 AA batteries.

Adjustment element	Other
Temperature sensor model	Other
Medium	Air
Suitable for immersion tube	Yes
Connection size insert probe	Other
Suitable for radiator	Yes
With anti-theft security system	No
Suitable for anti-theft protection	No
Blocking/limiting adjustment range	Yes
Mechanically lockable at zero (off) position	No
Response Time	1 sec
Suitable for heating	Yes
Suitable for refrigeration	No
Suitable for tap water	Yes
Frost protected	No
Remote control	Yes
Max. length of cable/capillary tube to remote control element	0 m
Length of cable/capillary tube to remote sensor	0 m
Diameter remote sensor	0 mm
Length remote sensor	0 mm
Bluetooth operated	No
Operation by Application	Yes
With web-based management	Yes
Width	58 mm
Height	58 mm
Depth	80 mm
Impact resistance	Not applicable
Protection Class (IP)	IP30
Operating Temperature	0-50 °C

Storage temperature	0-50 °C
Type of voltage	AC/DC
Nominal Voltage	2.5-3 V
Nominal current	0.00001-0.6 A
Standby consumption	0.01 mA
Colour	White
Halogen-free	Yes
Contains battery and/or accumulator	Yes
Addressable	No
IEC Designation	LR 6
Battery or accumulator (Pack1)	Accumulator (non-rechargeable)
Item Composition (Pack1)	Alkaline
Pack Number1	4
Number of individual items (Pack1)	1
Weight of an individual item (Pack1)	92 g
Location of Pack1	Included in the packaging
Regulatory Type (Pack1)	P : Portable (standard format)
Connected Object	Yes
Method of operation	Wifi network, RF
App download platform	App Store, Google Play Store
With voice command	Yes
Programmable	Yes
Connection Protocol Interoperability	Yes
Possibility of connection via Internet box	Yes
Supported voice assistants	Google Assistant, Apple Siri, Amazon Alexa
Product usage function	Thermal comfort management
App Name	Home + Control
Programming medium	Smartphone apps
Software update duration (years)	3

ETIM for NVP-PRO Valves/taps/controls (EC011295)

Feature Name	Feature Value
Suitable for heating (EF024797)	Yes
Suitable for immersion tube (EF021263)	Yes
With anti-theft security (EF022454)	No
Connection size insert probe (EF021266)	Other
Mechanically lockable at zero (off) position (EF020111)	No
Suitable for tap water (EF021265)	Yes
Frost protected (EF020110)	No
Length remote sensor (EF021260)	0 mm
Operation by Bluetooth (EF013759)	No
Temperature sensor model (EF021262)	Other
Suitable for radiator (EF021261)	Yes
Adjustment element (EF020108)	Other
Length of cable/capillary tube to remote sensor (EF021257)	0 m
Diameter remote sensor (EF021259)	0 mm
Max. length of cable/capillary tube to remote control element (EF021258)	0 m
Suitable for anti-theft protection (EF020649)	No
Remote operation (EF003848)	Yes
With web interface (EF009645)	Yes
Response time (EF004094)	1 s
Blocking/limiting adjustment range (EF021197)	Yes
Medium (EF022463)	Air
Operation by app (EF012384)	Yes
Suitable for cooling (EF024798)	No
