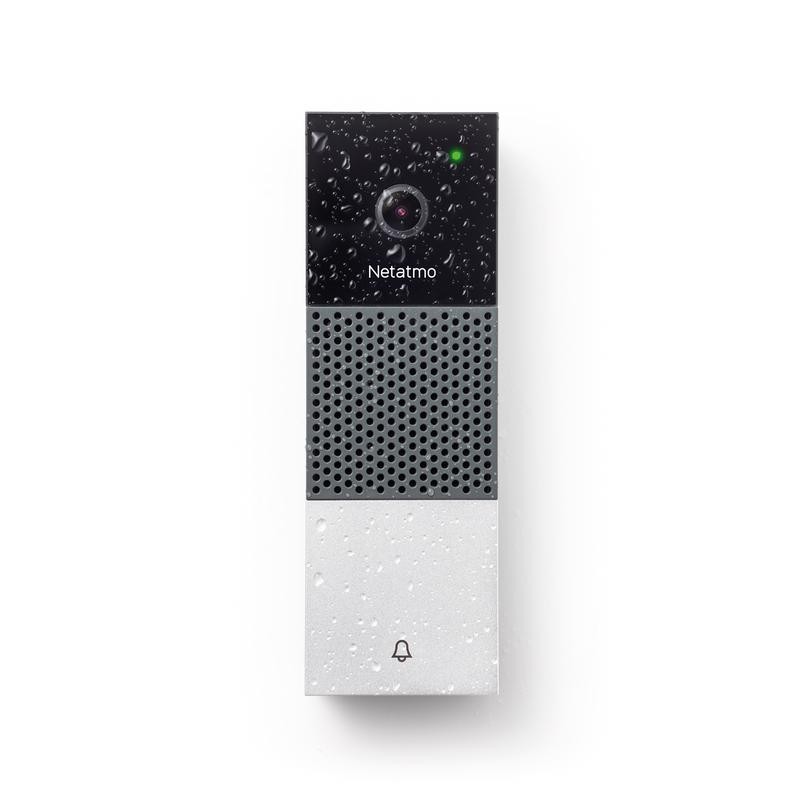

NDB-PRO LEGRAND NETATMO SMART VIDEO DOORBELL

Smart Video Doorbell with video call and alerts on your smartphone. Immediate alert on your smartphone in the event of an intrusion into the property thanks to the person detection function. With infrared LED night vision system. Running with Netatmo's App Security, some features are also supported by Bticino's Classe300X and Classe100X Door Entry App. Downloading and configuring App Security and Door Entry requires a smartphone or tablet equipped with the following systems: OS 10 minimum or Android 5.0 minimum. No subscription required, no usage costs, and free updates. 8 Gb microSD card included for secure local video storage (capacity up to 32 Gb). Additional storage possible in a personal Dropbox or FTP account. Compatible with Apple Homekit, Google Assistant and Alexa (voice control and connected environments). Ability to customize alerts in Netatmo App Security settings and deselect alert zones to receive only useful notifications. Weather resistant: IP44 and HZO protection. Requires a wired chime and chime. Camera: 2 MP with infrared night vision, 5x digital zoomVideo: 1,080p high definition, H.264 coding, HDR. Viewing angle: 140° diagonal. Sound: high-quality speaker and microphone. Connection: Wi-Fi 802.11 b/g/n (2.4 GHz). Dimensions: 136x45x29mm. Composition: - 1 Smart video doorbell - 1 8 GB MicroSD card (included in the doorbell) - 1 wall mount - 1 25º inclined bracket - 1 finish plate - 1 chime module - 1 cable connector - 1 drilling template - 1 additional fuse - Screws and plugs - 1 HomeKit card.

Form	Other
With nameplate	No
With light	No
Lamp voltage	8-230 V
Material	Other
Type of mounting	Surface mounted (plaster)
Colour	Black
Wireless	No
Installation Depth	29 mm
Width	45 mm
Height	135 mm
Protection Class (IP)	IP4X
Impact resistance	IK08
Operating Temperature	-10-40 °C
Storage temperature	-10-25 °C
Type of voltage	AC
RAL number	9017
Halogen-free	Yes
Connection Method	Screw-on terminal
Terminal capacity	0.4-1.5 mm²
Label Space/Print Area	No

Contains battery and/or accumulator	Yes
IEC Designation	LP552035, LP552035
Battery or accumulator (Pack1)	Accumulator (rechargeable)
Item Composition (Pack1)	Lithium-ion
Pack Number1	1
Number of individual items (Pack1)	1
Weight of an individual item (Pack1)	5.8
Location of Pack1	The product includes a battery
Regulatory Type (Pack1)	P : Portable (standard format)
Connected Object	Yes
Method of operation	Wifi network
App download platform	App Store, Google Play Store
With voice command	Yes
Programmable	Yes
Connection Protocol Interoperability	Yes
Possibility of connection via Internet box	Yes
Supported voice assistants	Google Assistant, Apple Siri, Amazon Alexa
Product usage function	Automatic intercoms
App Name	Home + Security
Programming medium	Smartphone apps
Software update duration (years)	3

ETIM for NDB-PRO Communication systems (EC000132)

Feature Name	Feature Value
Shape (EF000051)	Other
Height (EF000040)	135 mm
With name plate (EF000362)	No
Material (EF002169)	Other
Mounting method (EF000003)	Surface mounted
Wireless (EF000046)	No
With lighting (EF003829)	No
Colour (EF000007)	Black
Built-in depth (EF000218)	29 mm
Width (EF000008)	45 mm
