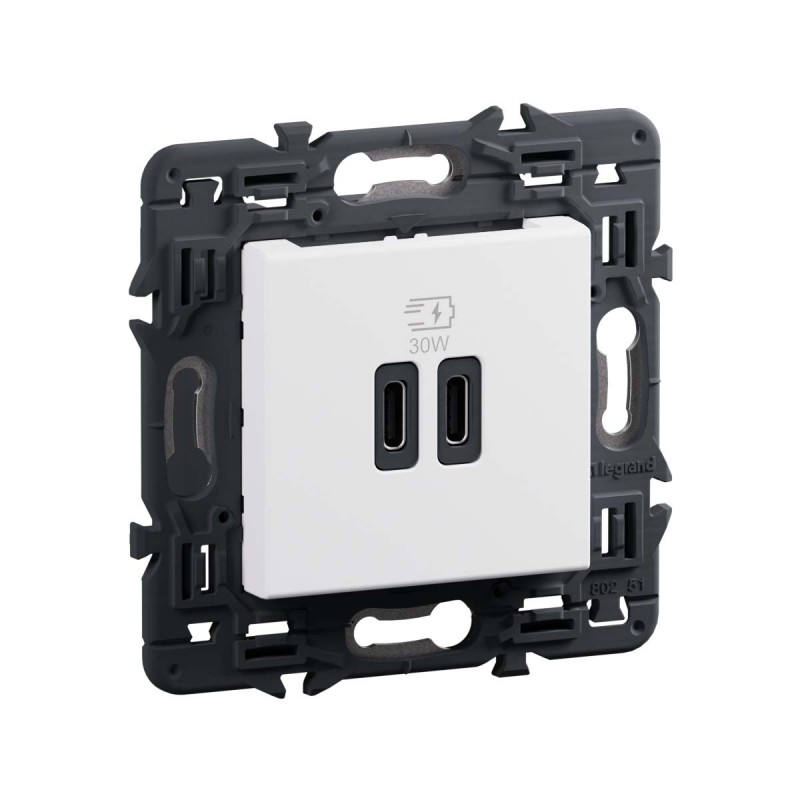

LEGRAND 741920 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

741920 LEGRAND VN-CHARGER USB C+C PD 30W BL

Code: 741920

Manufacturer: LEGRAND

Description:

VN-CHARGER USB C+C PD 30W BL
Valena Next USB double charger base - Type C+C - 30W - 2 modules - White
Valena Next USB double charger base - Type C+C - 30W - 2mod - White

Categories:

  • Domestic switching devices > USB power supply
  • LEGRAND > NEXT VALENA MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 54,55 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

The USB charger allows two electronic terminals (mobiles, tablets) to be charged simultaneously. It fits perfectly with the Valena Next wiring device.

description
Double USB charger - type C + C - 3,000mA - 30W - To quickly charge mobile phones, tablets, smartphones, MP3 and MP4 players. Consumption in passive mode 0.08 W CLASS II SELV - Complies with the EEC directive on harmonization of the charging standard for portable terminals and the reduction of chargers for mobile phones - For installation in recessed box of minimum depth 40mm

specifications

ModelOther
Number of USB-A ports0
Number of USB-C ports2
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.063 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourWhite
Device width74 mm
Device height74 mm
Device Depth45 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth35 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal Voltage100-240 V
Power DeliveryYes
Nominal current1-1 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²

ETIM for 741920 Domestic wiring accessories and controls (EC002949)

Feature nameModel (EF000010)
Feature valueOther
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueIP40
Feature nameConnection type (EF000124)
Feature valueScrewed terminal
Feature nameOperating voltage (EF003983)
Feature value100 V
Feature nameDevice depth (EF008810)
Feature value45 mm
Feature nameImpact strength (EF004293)
Feature valueIK04
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameNumber of ports USB-C (EF017049)
Feature value2
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameOutput voltage (EF003933)
Feature value5 V
Feature namePower consumption (EF000346)
Feature value0.063 W
Feature nameDevice width (EF008808)
Feature value74 mm
Feature nameDevice height (EF008809)
Feature value74 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameNumber of ports USB-A (EF000997)
Feature value0
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameMax. output current (EF001315)
Feature value3000 mA
Feature nameFrequency (EF000416)
Feature value50 Hz
