741867A LEGRAND VNwN-PERS. SWITCH DARK
741867A
LEGRAND
VNwN-PERS. SWITCH DARK

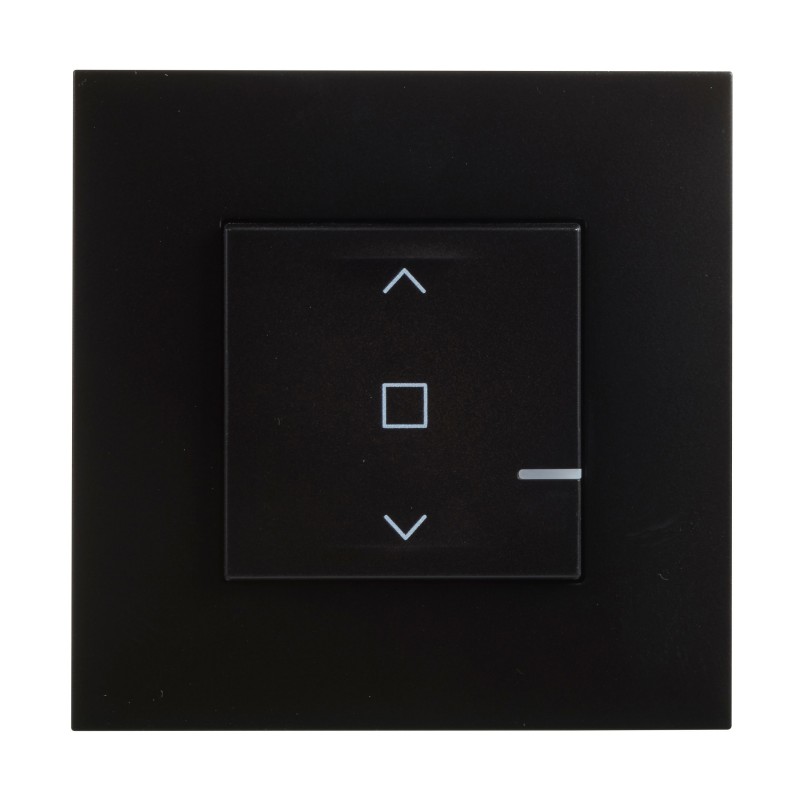

Valena Next with Netatmo connected shutter switch - Dark
Installation bus systems > Shutting actuator for bus system
NEXT VALENA WITH NETATMO
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Overview
Valena Next with Netatmo dark connected shutter switch that allows you to control your roller blinds remotely from your smartphone via the Home + Control app or using voice
description
Valena Next with Netatmo - connected switches - supplied with finish front, embellishing plate and plastic protector - mounted recessed by claws or screws to a universal boxspecifications
| KNX bus system | No |
|---|---|
| KNX-RF (Radio Frequency) Bus System | No |
| Radio frequency bus system | Yes |
| LON Bus System | No |
| Powernet Bus System | No |
| Other bus systems | Zigbee |
| Bidirectional Radio Frequency | Yes |
| Type of mounting | Recessed mounted (plaster) |
| Width in number of modular spaces | 2 |
| With bus connection | No |
| Detachable bus module | No |
| Local Operation/Manual Operation | Yes |
| With LED indicator | Yes |
| Number of Entries | 4 |
| Switching Current (Resistive) | 2 A |
| Max. switching power | 500 W |
| Max. number of Venetian blind outlets | 1 |
| With switch function | Yes |
| Type of current | AC |
| Protection Class (IP) | IP41 |
| Min. depth of the recessed box | 40 mm |
| Width | 74 mm |
| Height | 74 mm |
| Depth | 46 mm |
| Installation Depth | 33 mm |
| Impact resistance | IK04 |
| Operating Temperature | 5-45°C |
|---|---|
| Storage temperature | 0-45 °C |
| Nominal Voltage | 100-240 V |
| frequency | 50-60 Hz |
| Standby consumption | 2.1 mA |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Colour | Black |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Connection Method | Screw-on terminal |
| Number of terminals | 4 |
| Terminal capacity | 1.5-2.5 mm² |
| Contains battery and/or accumulator | No |
| Connected Object | Yes |
| Method of operation | Zigbee |
| App download platform | App Store, Google Play Store |
| Programming medium | Smartphone apps |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| With voice command | Yes |
| Supported voice assistants | Google Assistant, Amazon Alexa, Apple Siri |
| App Name | Home + Control |
| Product usage function | Shutter management |
| Possibility of connection via Internet box | Yes |
| Feature Name | Feature Value |
|---|---|
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| With LED indication (EF005950) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 2 |
| Bus system LON (EF003831) | No |
| Type of current (EF000143) | AC |
| Mounting method (EF000003) | Flush mounted |
| Bus system KNX (EF001499) | No |
| With switch function (EF004698) | Yes |
| Switching current (resistive) (EF001741) | 2 A |
| Bus module detachable (EF009766) | No |
| Max. number of venetian-blind outputs (EF001740) | 1 |
| Radio frequency bidirectional (EF009466) | Yes |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | Yes |
| Max. switching power (EF001503) | 500 W |
| Other bus systems (EF003811) | Zigbee |
| With bus connection (EF001504) | No |
| Local operation/hand operation (EF003914) | Yes |
| Number of inputs (EF000318) | 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 741867A EN_741807A.pdf | 692 Kbytes |
 |
