LEGRANDNEXT VALENA WITH NETATMO741837A LEGRAND VNwN-PERS. SWITCH ALUM

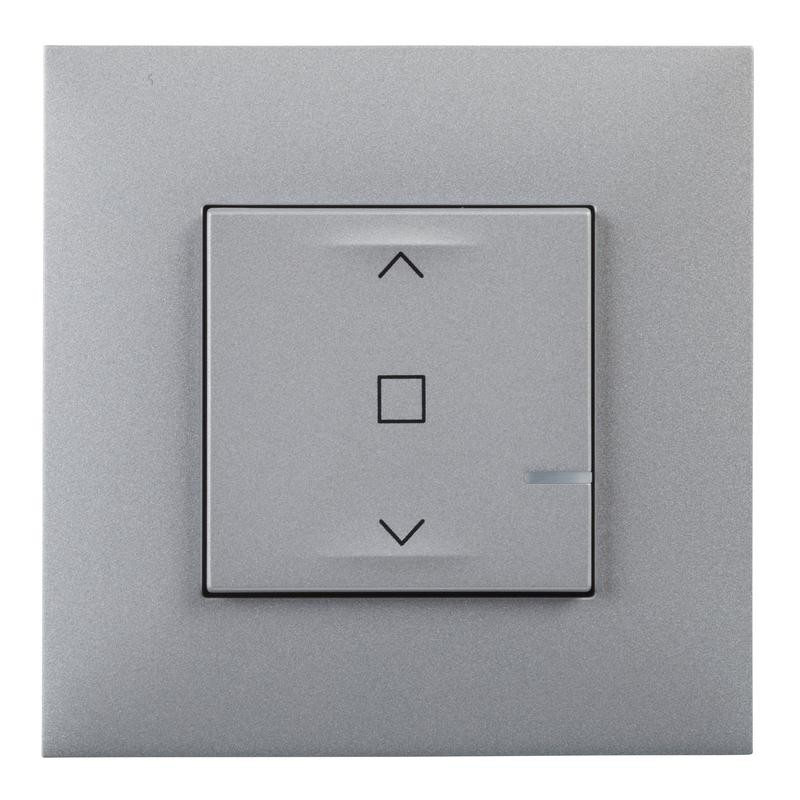

LEGRAND 741837A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

741837A LEGRAND VNwN-PERS. SWITCH ALUM

Code: 741837A

Manufacturer: LEGRAND

Description:

VNwN-PERS. SWITCH ALUM
Valena Next with Netatmo connected shutter switch - Aluminum
Valena Next w/Netatmo connected shutter switch - Aluminum

Categories:

  • Installation bus systems > Shutting actuator for bus system
  • LEGRAND > NEXT VALENA WITH NETATMO

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 85,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Valena Next with Netatmo aluminum connected shutter switch that allows you to control your roller blinds remotely from your smartphone via the Home + Control app or using voice

description
Valena Next with Netatmo - connected switches - supplied with finish front, embellishing plate and plastic protector - mounted recessed by claws or screws to a universal box

specifications

KNX bus systemNo
KNX-RF (Radio Frequency) Bus SystemNo
Radio frequency bus systemYes
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsZigbee
Bidirectional Radio FrequencyYes
Type of mountingRecessed mounted (plaster)
Width in number of modular spaces2
With bus connectionNo
Detachable bus moduleNo
Local Operation/Manual OperationYes
With LED indicatorYes
Number of Entries4
Switching Current (Resistive)2 A
Max. switching power500 W
Max. number of Venetian blind outlets1
With switch functionYes
Type of currentAC
Protection Class (IP)IP41
Min. depth of the recessed box40 mm
Width74 mm
Height74 mm
Depth46 mm
Installation Depth33 mm
Impact resistanceIK04
Operating Temperature5-45°C
Storage temperature0-45 °C
Nominal Voltage100-240 V
frequency50-60 Hz
Standby consumption2.1 mA
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Colouraluminium
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals4
Terminal capacity1.5-2.5 mm²
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
Programming mediumSmartphone apps
ProgrammableYes
Connection Protocol InteroperabilityYes
With voice commandYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
App NameHome + Control
Product usage functionShutter management
Possibility of connection via Internet boxYes

ETIM for 741837A Installation bus systems (EC001330)

Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameType of current (EF000143)
Feature valueAC
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameWith switch function (EF004698)
Feature valueYes
Feature nameSwitching current (resistive) (EF001741)
Feature value2 A
Feature nameBus module detachable (EF009766)
Feature valueNo
Feature nameMax. number of venetian-blind outputs (EF001740)
Feature value1
Feature nameRadio frequency bidirectional (EF009466)
Feature valueYes
Feature nameMin. depth of built-in installation box (EF012278)
Feature value40 mm
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueYes
Feature nameMax. switching power (EF001503)
Feature value500 W
Feature nameOther bus systems (EF003811)
Feature valueZigbee
Feature nameWith bus connection (EF001504)
Feature valueNo
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes
Feature nameNumber of inputs (EF000318)
Feature value4

DATASHEET - PDF

Title
Size
Type
741837A EN_741807A.pdf
692 Kbytes
