LEGRANDNEXT VALENA MECHANISMS741466 LEGRAND VN-INTER S/CONTACT LIGHT DARK

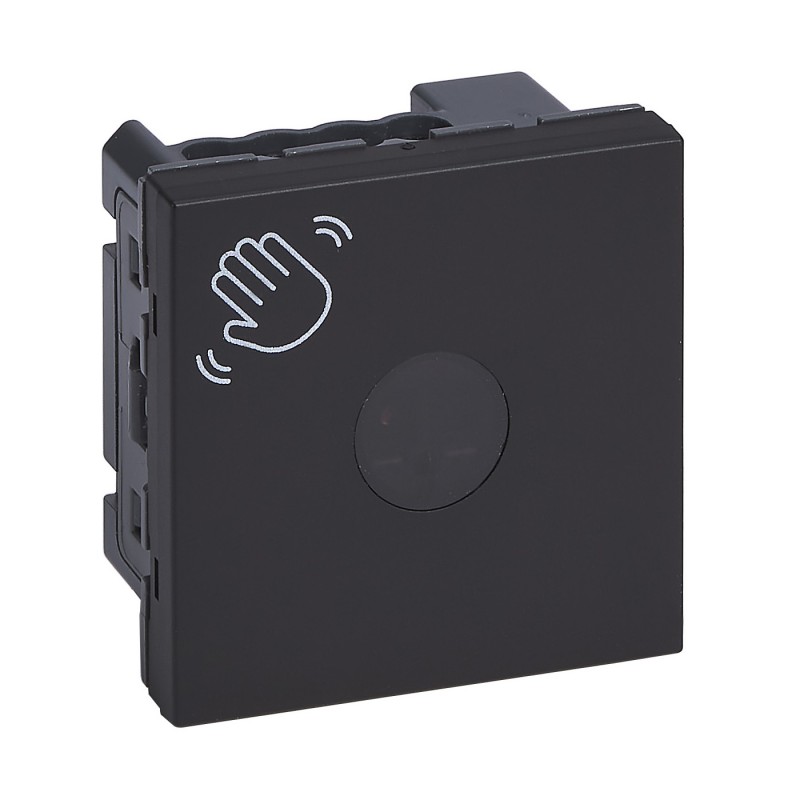

LEGRAND 741466 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

741466 LEGRAND VN-INTER S/CONTACT LIGHT DARK

Code: 741466

Manufacturer: LEGRAND

Description:

VN-INTER S/CONTACT LIGHT DARK
Valena Next Dark Lighting Non-Contact Switch

Categories:

  • Domestic switching devices > Electronic switch
  • LEGRAND > NEXT VALENA MECHANISMS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 84,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Overview

Switch with or without neutral to control lighting without physical contact - Valena Next - Dark

Product features
  • Highly reactive (laser optical sensor technology)
  • Easy installation thanks to neutral or non-neutral wiring. Mechanism depth: 20mm
  • Location light mode (enabled by default) can be turned off
  • Wiring in held or pulsed mode to control a relay or connected micromodule
  • black
description
Valena Next mechanisms for non-physical contact lighting - Detection distance: 6cm - supplied with finished front, to equip with decorative plates

Highlights

Advantages in installation
  • Reduced mechanism depth: 20mm
Advantages in use
  • Very reactive
Specific features
  • Perfect aesthetic integration with the installed wired mechanisms
  • Product that meets all installation requirements (with/without neutral, maintained/pushbutton mode, switch)
  • Very shallow depth, easy to install

specifications

Type of mountingBasic Element with Center Cover Plate, Others
ModelBidirectional thyristor
Load TypeUniversal and LED retrofit
Input ExtensionsYes
Luminous value memoryNo
Can be used with a buttonYes
Usable with motion detectorNo
Usable with presence detectorNo
Usable with timerNo
Usable with radio buttonNo
Usable with IR buttonNo
MaterialPlastic
Material qualityThermoplastic
Surface treatmentNo treatment
Surface FinishMate
ColourBlack
TransparentNo
Nominal Voltage250 V
frequency50-60 Hz
Nominal current1 A
Switching power5-200 W
HVAC switching capability5-200 W
Attachment TypeScrew mounting
Min. depth of the recessed box35 mm
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Width74 mm
Height74 mm
Depth38.5 mm
Installation Depth30 mm
Impact resistanceIK04
Protection Class (IP)IP40
Operating Temperature-5-40 °C
Storage temperature-25-70 °C
Standby consumption0.3 mA
Neutral MandatoryNo
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)Yes
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals4
Terminal capacity1.5-2.5 mm²
Core cross-section1.5-2.5 mm²
Label Space/Print AreaNo
Contains battery and/or accumulatorNo
Connected ObjectNo
Method of operationNet
Programming mediumNot applicable
With voice commandNo
ProgrammableNo
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo
Product usage functionLighting management

ETIM for 741466 Domestic wiring accessories and controls (EC001588)

Feature nameSwitch capacity (EF005233)
Feature value5 W
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface finishing (EF006569)
Feature valueMatt
Feature nameType of fastening (EF002442)
Feature valueMounting with screw
Feature nameMaterial quality (EF001257)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameApplicable with infrared button (EF003908)
Feature valueNo
Feature nameApplicable with presence indicator (EF003909)
Feature valueNo
Feature nameType of load (EF001508)
Feature valueUniversal and LED Retrofit
Feature nameApplicable with movement sensor (EF003906)
Feature valueNo
Feature nameApplicable with transmission button (EF003907)
Feature valueNo
Feature nameMin. depth of built-in installation box (EF012278)
Feature value35 mm
Feature nameLight value memory (EF003867)
Feature valueNo
Feature nameSwitch capacity HVAC (EF003887)
Feature value5 W
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameRAL-number (similar) (EF003882)
Feature value9017
Feature nameModel (EF000010)
Feature valueTriac
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameApplicable with time switch/timer (EF003911)
Feature valueNo
Feature nameAssembly arrangement (EF000005)
Feature valueBasic unit with central cover plate
Feature nameRated current (EF000227)
Feature value1 A
Feature nameColour (EF000007)
Feature valueBlack
Feature nameSubstation input (EF003876)
Feature valueYes
Feature nameApplicable with button (EF003910)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
741466 EN_741266.pdf
174 Kbytes
