View larger

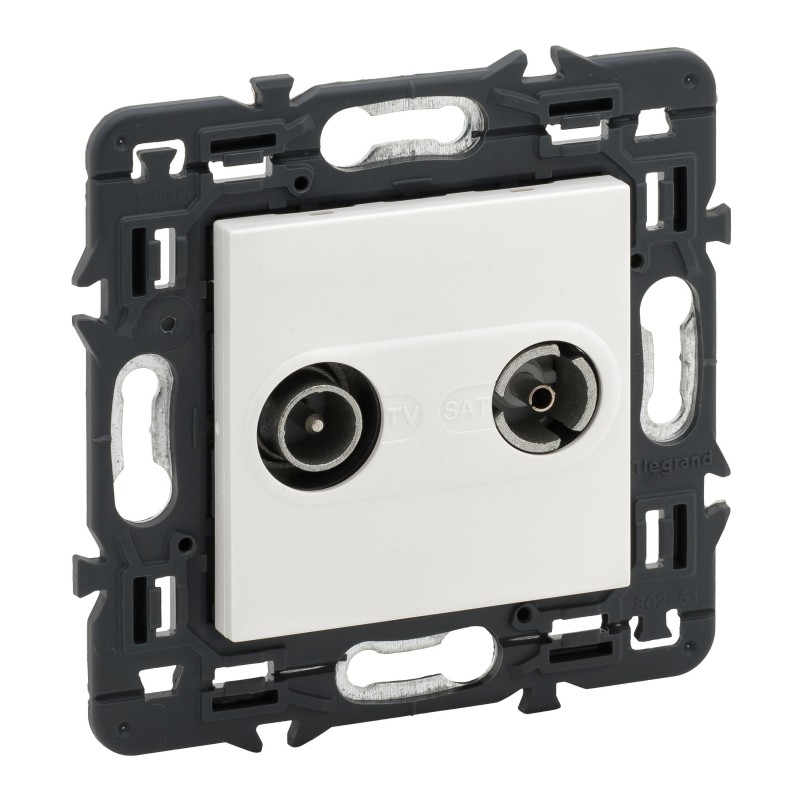

741272 LEGRAND VN-BASE TV/R-SAT INTERM.WHITE
741272
LEGRAND
10
VN-BASE TV/R-SAT INTERM.WHITE
Base TV/R-SAT Valena Next - to-intermediate - 14 dB - 2400 MHz - white
Valena Next Intermediate TV/R-SAT Base - 14 dB - 2400 MHz - White
Antenna and satellite technique > Antenna socket
NEXT VALENA MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Foundation TV/R-SAT - TV: 5-68/120-862 MHz R: 87.5-108 MHz - SAT: 950-2400 MHz - base middle - 14 dB - whiteGeneral characteristics
Valena Next - basis-of-television - ship with front finish, to equip the plates with trim - mounting with screws or claws - For installations of TV or radio and satellite tv (with demodulator individual) Bases of armoured - TV/R: male connector (IEC 9,5 mm) - - SAT: female connector (IEC 9,5 mm) - coaxial Cable recommended: 17/19 VATC| Feature Name | Feature Value |
|---|---|
| Type of socket outlet (EF003497) | TV |
| Degree of protection (IP) (EF005474) | IP20 |
| Tap loss at 860 MHz (EF000540) | 14 dB |
| Material (EF002169) | Plastic |
| DAB+ (EF011633) | No |
| Surface finishing (EF006569) | Glossy |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| Material quality (EF001257) | Thermoplastic |
| Tap loss at 2150 MHz (EF003499) | 14 dB |
| Min. depth of built-in installation box (EF012278) | 28 mm |
| Suitable for cable modem (EF001547) | No |
| Surface protection (EF000139) | Untreated |
| Suitable for remote power supply (EF001548) | Yes |
| Through loss at 860 MHz (EF000539) | 1.5 dB |
| Number of outlets (EF000538) | 2 |
| RAL-number (similar) (EF003882) | 9003 |
| Model (EF000010) | Loop-through socket |
| Through loss at 2150 MHz (EF003500) | 1.5 dB |
| Cover (EF000055) | Central cover plate |
| Device depth (EF008810) | 37 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Radio frequency band (EF017378) | 87.5 MHz |
| SAT frequency band (EF017379) | 950 MHz |
| Device width (EF008808) | 74 mm |
| Device height (EF008809) | 74 mm |
| Colour (EF000007) | White |
