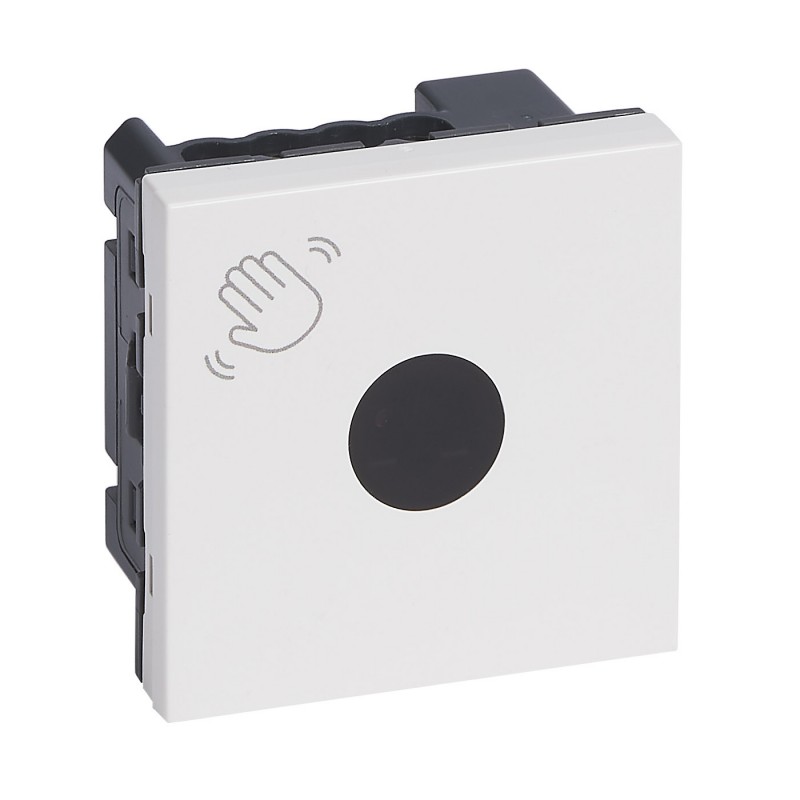

741266 LEGRAND VN-INTER S/CONTACT LIGHT BL
741266
LEGRAND
VN-INTER S/CONTACT LIGHT BL
Valena Next White Lighting Non-Contact Switch
Domestic switching devices > Electronic switch
NEXT VALENA MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Overview
Switch with or without neutral to control lighting without physical contact - Valena Next - White
Product features
- Highly reactive (laser optical sensor technology)
- Easy installation thanks to neutral or non-neutral wiring. Mechanism depth: 20mm
- Location light mode (enabled by default) can be turned off
- Wiring in held or pulsed mode to control a relay or connected micromodule
- white
description
Valena Next mechanisms for non-physical contact lighting - Detection distance: 6cm - supplied with finished front, to equip with decorative platesHighlights
Advantages in installation
- Reduced mechanism depth: 20mm
Advantages in use
- Very reactive
Specific features
- Perfect aesthetic integration with the installed wired mechanisms
- Product that meets all installation requirements (with/without neutral, maintained/pushbutton mode, switch)
- Very shallow depth, easy to install
specifications
| Type of mounting | Basic Element with Center Cover Plate, Others |
|---|---|
| Model | Bidirectional thyristor |
| Load Type | Universal and LED retrofit |
| Input Extensions | Yes |
| Luminous value memory | No |
| Can be used with a button | Yes |
| Usable with motion detector | No |
| Usable with presence detector | No |
| Usable with timer | No |
| Usable with radio button | No |
| Usable with IR button | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface treatment | Other |
| Surface Finish | Bright |
| Colour | White |
| RAL number (similar) | 9003 |
| Transparent | No |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Nominal current | 1 A |
| Switching power | 5-200 W |
| HVAC switching capability | 5-200 W |
| Attachment Type | Screw mounting |
| Min. depth of the recessed box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Width | 74 mm |
|---|---|
| Height | 74 mm |
| Depth | 38.5 mm |
| Installation Depth | 30 mm |
| Impact resistance | IK04 |
| Protection Class (IP) | IP40 |
| Operating Temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Standby consumption | 0.3 mA |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | Yes |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Connection Method | Screw-on terminal |
| Number of terminals | 4 |
| Terminal capacity | 1.5-2.5 mm² |
| Core cross-section | 1.5-2.5 mm² |
| Label Space/Print Area | No |
| Contains battery and/or accumulator | No |
| Connected Object | No |
| Method of operation | Net |
| Programming medium | Not applicable |
| With voice command | No |
| Programmable | No |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| Product usage function | Lighting management |
| Feature Name | Feature Value |
|---|---|
| Switch capacity (EF005233) | 5 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Mounting with screw |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Other |
| Nominal voltage (EF000002) | 250 V |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Applicable with infrared button (EF003908) | No |
| Applicable with presence indicator (EF003909) | No |
| Type of load (EF001508) | Universal and LED Retrofit |
| Applicable with movement sensor (EF003906) | No |
| Applicable with transmission button (EF003907) | No |
| Min. depth of built-in installation box (EF012278) | 35 mm |
| Light value memory (EF003867) | No |
| Switch capacity HVAC (EF003887) | 5 W |
| Surface protection (EF000139) | Other |
| Frequency (EF000416) | 50 Hz |
| RAL-number (similar) (EF003882) | 9003 |
| Model (EF000010) | Triac |
| IFTTT support available (EF011072) | No |
| Applicable with time switch/timer (EF003911) | No |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Rated current (EF000227) | 1 A |
| Colour (EF000007) | White |
| Substation input (EF003876) | Yes |
| Applicable with button (EF003910) | Yes |
Datasheet - PDF
