LEGRANDCOLUMN WIRING MANAGEMENT689623 LEGRAND FLOOR BOX IP44 8-24MM W/CABLE

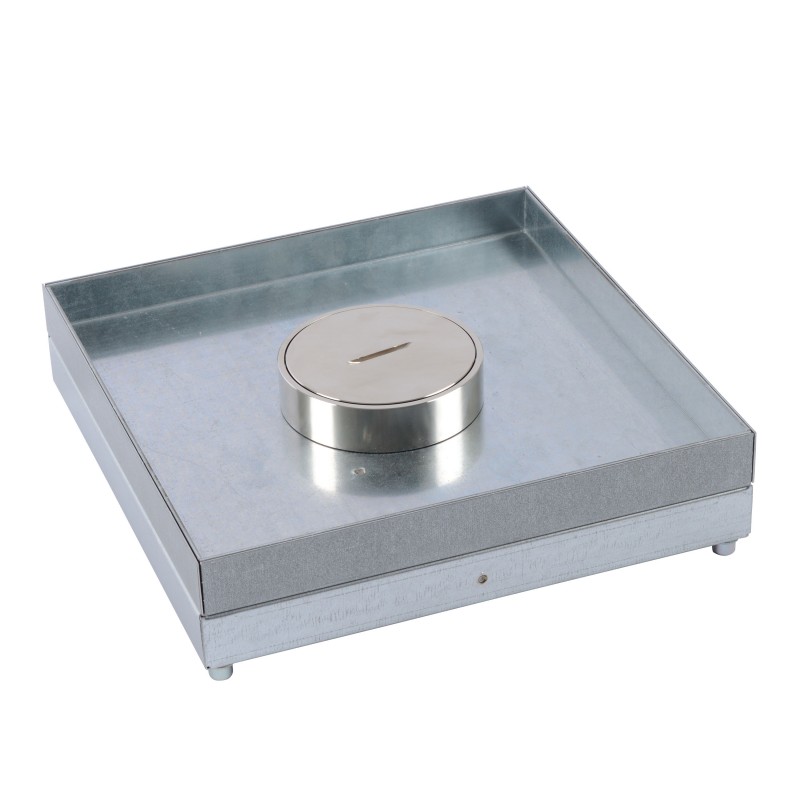

LEGRAND 689623 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

689623 LEGRAND FLOOR BOX IP44 8-24MM W/CABLE

Code: 689623

Manufacturer: LEGRAND

Description:

FLOOR BOX IP44 8-24MM W/CABLE
BOX FLOOR IP44 8-24MM S/CABLE
Edge trim for tile 8 to 24 mm thickness - IP44 - with central cable exit
IP44 8 - 24mm thick floor box with central cable outlet

Categories:

  • Sub-floor systems > Installation box for underfloor-installation
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 342,50 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)6.429
  • Weight (g)3 271.00
Product characteristics
IP 44 lid and trim for tiles/marble
  • To be installed in backbox Cat.No 0 896 04 for screed floor system
With central cable exit
  • Edge trim for tile 8 to 24 mm thickness
  • To be equipped with 1 kit of vertical supports Cat.No 6 896 57
  • Can be equipped with cable exit accessory Cat.No 0 896 87
General characteristics
IP 44 floor boxes for tiles/marble
  • Conforms to IEC/EN 60670-23
  • Compatible with screed floor system

ETIM for 689623 Underfloor trunking and floor boxes (EC000024)

Feature nameDepth of flooring recess (EF005356)
Feature value15 mm
Feature nameWith opening carpeting (EF004541)
Feature valueYes
Feature nameSurface protection housing (EF024150)
Feature valueGalvanised
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameWidth built-in dimension (EF004566)
Feature value262.4 mm
Feature nameProtective frame carpeting (EF004543)
Feature valueNo
Feature nameCover model (EF009212)
Feature valueSquare
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameSuitable for wet cleaning (EF005109)
Feature valueNo
Feature nameLength built-in dimension (EF004875)
Feature value262.4 mm
Feature nameMin. built-in depth (EF005027)
Feature value78.5 mm
Feature nameOuter length (EF024679)
Feature value262.4 mm

DATASHEET - PDF

Title
Size
Type
689623 EN_689623.pdf
1 Mbytes
