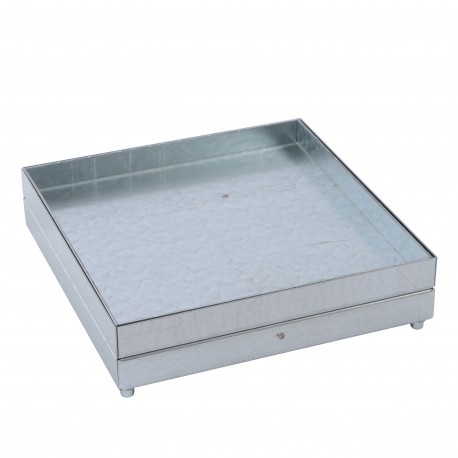

689622 LEGRAND BOX FLOOR IP44 8-24MM
689622
LEGRAND
BOX FLOOR IP44 8-24MM
Edge trim for tile 8 to 24 mm thickness - IP44 - plain cover
IP44 Floor Box 8 - 24mm Thick with Single Cover
Sub-floor systems > Installation box for underfloor-installation
COLUMN WIRING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)6.429
- Weight (g)2 347.00
- To be installed in backbox Cat.No 0 896 04 for screed floor system
- Edge trim for tile 8 to 24 mm thickness
- Can be used as access trap for junction, or equipped with 1 kit of vertical supports Cat.No 6 896 57
- No cable exit
- Conforms to IEC/EN 60670-23
- Compatible with screed floor system
| Feature Name | Feature Value |
|---|---|
| Depth of flooring recess (EF005356) | 15 mm |
| With opening carpeting (EF004541) | Yes |
| Surface protection housing (EF024150) | Galvanised |
| Housing material (EF001596) | Other |
| Width built-in dimension (EF004566) | 262.4 mm |
| Protective frame carpeting (EF004543) | No |
| Cover model (EF009212) | Square |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Suitable for wet cleaning (EF005109) | No |
| Length built-in dimension (EF004875) | 262.4 mm |
| Min. built-in depth (EF005027) | 78.5 mm |
| Outer length (EF024679) | 262.4 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 689622 EN_689622.pdf | 1 Mbytes |
 |
