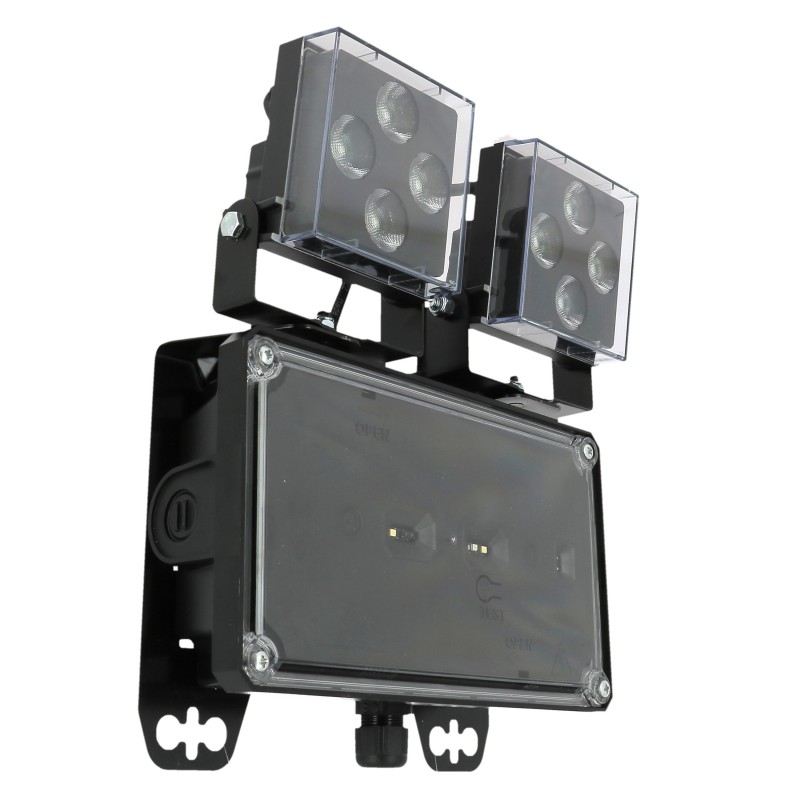

LEGRAND 661463 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

661463 LEGRAND LED PROJECTOR 2500LM 1H NP STD

Code: 661463

Manufacturer: LEGRAND

Description:

LED PROJECTOR 2500LM 1H NP STD
Black LED projector 2500 lumens - 2 spotlights - IP65
LED Projector 2500 lumens 1H. NP Standard

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND > WATERTIGHT EMERGENCIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 399,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Standalone LED emergency lighting projector - 2 spotlights - 1500 lumens - Autonomy 1 hour - IP65 - IK07 - Manufactured according to mandatory standard UNE EN 60 598 - 2-22 - Certified with N Mark of AENOR and ENEC - Class II - Non-permanent - Standard - Power supply: 230 V± - 50/60 Hz - Batteries: LiFePO4 - Equipped with automatic connection terminals of 1x2.5mm² - Green charge indicator LED - Standby by remote control
Type of mountingWall extension
functionEmergency Lighting/Pathway Identification
Suitable for labelling typeOther
With pictogramNo
Suitable for standby switchingYes
Suitable for continuous circuitNo
With remote switch connectionNo
With remote controlYes
Emergency function monitoring systemTest button
Emergency Power Supply SystemPeripheral unit (single battery)
Battery qualityLithium-ion
LampNon-interchangeable LED
With light sourceYes
Suitable for number of light sources8
Lamp holdernone
Number of light heads2
Housing materialPlastic
RAL number of the case9011
Housing colorBlack
Cover materialPlastic, transparent
Type of voltageAC
Nominal Voltage207-253 V
Nominal current12-62 mA
Type of control equipmentCurrent-controlled LED service apparatus
Interchangeable control equipmentNo
Light distributorRefractor lens
Constant luminous flux regulationYes
Protection Class (IP)IP65
Impact resistanceIK07
Protection class according to IEC 61140Ii
Luminous flux in emergency mode2500 lm
Nominal luminous flux according to IEC 62722-2-12500-2500 lm
Max. system power0.9 W
Color Temperature5000-6500 K
Nominal Operating Time1-1 hrs
Width240 mm
Height/Depth93.5 mm
Longitude285.5 mm
Number of poles2
Connection MethodOther
Connectable conductor cross-section1.5-2.5 mm²
Operating Temperature0-35 °C
Storage temperature-10-50 °C
frequency50-60 Hz
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Halogen-freeYes
Connection Cable TypeRigid
With signal lampYes
Distance between vertical clamping centers163.6-164.4 mm
Distance between horizontal clamping centers163.6-164.4 mm
Cable HolderCable glands
Cable tie compatible withNot applicable
Control ModeWired
Contains battery and/or accumulatorYes
AddressableNo
IEC Designation3IFpR27/67
Battery or accumulator (Pack1)Accumulator (rechargeable)
Item Composition (Pack1)Lithium-Iron-Phosphate
Pack Number12
Number of individual items (Pack1)3
Weight of an individual item (Pack1)84 g
Location of Pack1The product includes a battery
Regulatory Type (Pack1)I : Industrial (not portable)
Connected ObjectNo

ETIM for 661463 Luminaires (EC001957)

Feature nameWith remote control (EF000483)
Feature valueYes
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMounting method (EF000003)
Feature valueWall surface mounted
Feature nameConnection type (EF000124)
Feature valueOther
Feature nameRAL-number housing (EF012502)
Feature value9011
Feature nameMaterial cover (EF004284)
Feature valuePlastic transparent
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value0.9 W
Feature nameColour temperature (EF009346)
Feature value5000 K
Feature nameRated luminous flux according to IEC 62722-2-1 (EF009349)
Feature value2500 lm
Feature nameSuitable for number of light sources (EF006436)
Feature value8
Feature nameNumber of lighting heads (EF004258)
Feature value2
Feature nameNominal current (EF009345)
Feature value12 mA
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMonitoring equipment (EF008091)
Feature valueTest button
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameLamp holder (EF000048)
Feature valueNone
Feature nameHeight/depth (EF001456)
Feature value93.5 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameWidth (EF000008)
Feature value240 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant current
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameSuitable for labelling type (EF001277)
Feature valueOther
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameHousing colour (EF000136)
Feature valueBlack
Feature nameLight distributor (EF012170)
Feature valueRefractor lens
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameFunction (EF000030)
Feature valueEscape route lighting/signage
Feature nameNominal voltage (EF005127)
Feature value207 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameBattery technology (EF004351)
Feature valueLithium-ions
Feature nameConstant light output (CLO) (EF009482)
Feature valueYes
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameSuitable for standby switching (EF017055)
Feature valueYes
Feature nameLength (EF001438)
Feature value285.5 mm
Feature nameSuitable for continuous circuit (EF017056)
Feature valueNo
Feature nameExchangeable control gear (EF016286)
Feature valueNo
