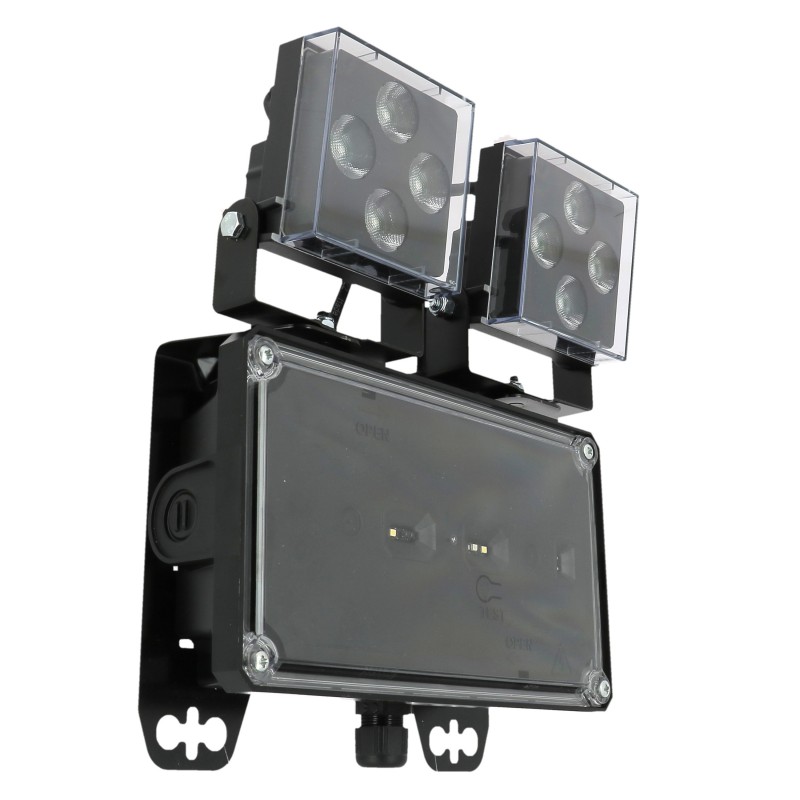

661462 LEGRAND 1500LM 1H NP STD LED PROJECTOR
661462
LEGRAND
1500LM 1H NP STD LED PROJECTOR
Black LED projector 1500 lumens - 2 spotlights - IP65
LED Projector 1500 lumens 1H. NP Standard
Luminaires > Emergency luminaire
WATERTIGHT EMERGENCIES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲
Standalone LED emergency lighting projector - 2 spotlights - 2500 lumens - Autonomy 1 hour - IP65 - IK07 - Manufactured according to mandatory standard UNE EN 60 598 - 2-22 - Certified with N Mark of AENOR and ENEC - Class II - Not permanent - Standard - Power supply: 230 V± - 50/60 Hz - Batteries: LiFePO4 - Equipped with automatic connection terminals of 1x2.5mm² - Green charge indicator LED - Standby by remote control
| Type of mounting | Wall extension |
|---|---|
| function | Emergency Lighting/Pathway Identification |
| Suitable for labelling type | Other |
| With pictogram | No |
| Suitable for standby switching | Yes |
| Suitable for continuous circuit | No |
| With remote switch connection | No |
| With remote control | Yes |
| Emergency function monitoring system | Test button |
| Emergency Power Supply System | Peripheral unit (single battery) |
| Battery quality | Lithium-ion |
| Lamp | Non-interchangeable LED |
| With light source | Yes |
| Suitable for number of light sources | 8 |
| Lamp holder | none |
| Number of light heads | 2 |
| Housing material | Plastic |
| RAL number of the case | 9011 |
| Housing color | Black |
| Cover material | Plastic, transparent |
| Type of voltage | AC |
| Nominal Voltage | 207-253 V |
| Nominal current | 12-38 mA |
| Type of control equipment | Current-controlled LED service apparatus |
| Interchangeable control equipment | No |
| Light distributor | Refractor lens |
| Constant luminous flux regulation | Yes |
| Protection Class (IP) | IP65 |
| Impact resistance | IK07 |
| Protection class according to IEC 61140 | Ii |
| Luminous flux in emergency mode | 1500 lm |
| Nominal luminous flux according to IEC 62722-2-1 | 1500-1500 lm |
| Max. system power | 0.9 W |
| Color Temperature | 5000-6500 K |
|---|---|
| Nominal Operating Time | 1-1 hrs |
| Width | 240 mm |
| Height/Depth | 93.5 mm |
| Longitude | 285.5 mm |
| Number of poles | 2 |
| Connection Method | Other |
| Connectable conductor cross-section | 1.5-2.5 mm² |
| Operating Temperature | 0-35 °C |
| Storage temperature | -10-50 °C |
| frequency | 50-60 Hz |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Halogen-free | Yes |
| Connection Cable Type | Rigid |
| With signal lamp | Yes |
| Distance between vertical clamping centers | 163.6-164.4 mm |
| Distance between horizontal clamping centers | 163.6-164.4 mm |
| Cable Holder | Cable glands |
| Cable tie compatible with | Not applicable |
| Control Mode | Wired |
| Contains battery and/or accumulator | Yes |
| Addressable | No |
| IEC Designation | 3IFpR27/67 |
| Battery or accumulator (Pack1) | Accumulator (rechargeable) |
| Item Composition (Pack1) | Lithium-Iron-Phosphate |
| Pack Number1 | 1 |
| Number of individual items (Pack1) | 3 |
| Weight of an individual item (Pack1) | 84 g |
| Location of Pack1 | The product includes a battery |
| Regulatory Type (Pack1) | I : Industrial (not portable) |
| Connected Object | No |
| Feature Name | Feature Value |
|---|---|
| With remote control (EF000483) | Yes |
| Lamp type (EF002423) | LED non-replaceable |
| Mounting method (EF000003) | Wall surface mounted |
| Connection type (EF000124) | Other |
| RAL-number housing (EF012502) | 9011 |
| Material cover (EF004284) | Plastic transparent |
| With remote switch connection (EF007947) | No |
| Max. system power (EF009347) | 0.9 W |
| Colour temperature (EF009346) | 5000 K |
| Rated luminous flux according to IEC 62722-2-1 (EF009349) | 1500 lm |
| Suitable for number of light sources (EF006436) | 8 |
| Number of lighting heads (EF004258) | 2 |
| Nominal current (EF009345) | 12 mA |
| Impact strength (EF004293) | IK07 |
| Monitoring equipment (EF008091) | Test button |
| Protection class according to IEC 61140 (EF000004) | II |
| Lamp holder (EF000048) | None |
| Height/depth (EF001456) | 93.5 mm |
| With pictogram (EF011099) | No |
| Width (EF000008) | 240 mm |
| Type of control gear (EF000381) | LED driver constant current |
| Degree of protection (IP) (EF005474) | IP65 |
| Suitable for labelling type (EF001277) | Other |
| Housing material (EF001596) | Plastic |
| Voltage type (EF000187) | AC |
| Number of poles (EF001391) | 2 |
| Housing colour (EF000136) | Black |
| Light distributor (EF012170) | Refractor lens |
| With light source (EF005905) | Yes |
| Function (EF000030) | Escape route lighting/signage |
| Nominal voltage (EF005127) | 207 V |
| Power supply system (EF000233) | Peripheral (individual battery) |
| Battery technology (EF004351) | Lithium-ions |
| Constant light output (CLO) (EF009482) | Yes |
| Nominal operation time (EF012518) | 1 h |
| Suitable for standby switching (EF017055) | Yes |
| Length (EF001438) | 285.5 mm |
| Suitable for continuous circuit (EF017056) | No |
| Exchangeable control gear (EF016286) | No |
