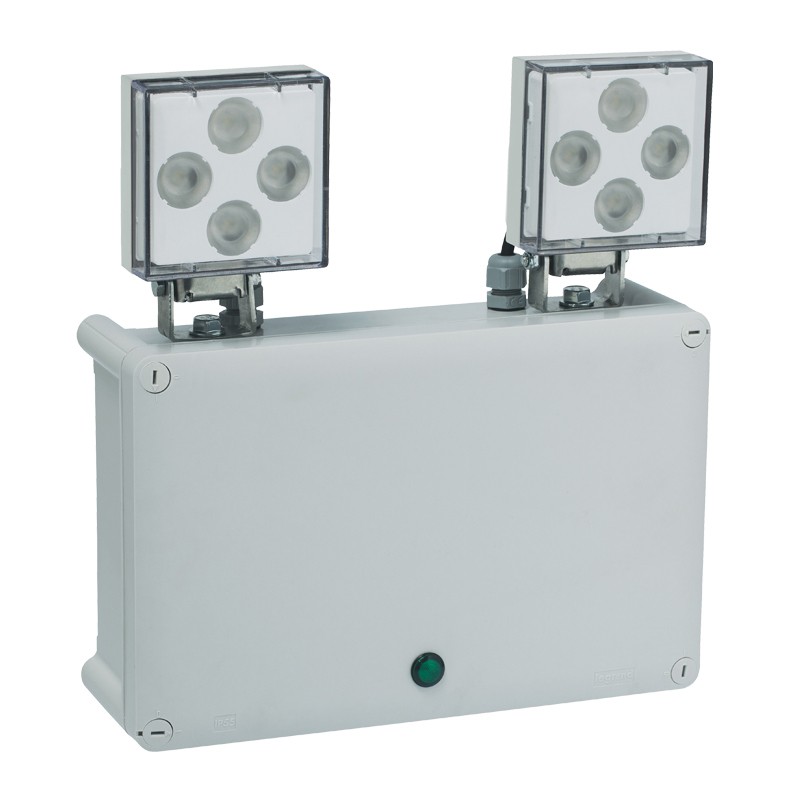

LEGRAND 661453 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

661453 LEGRAND LED PROJECTOR 2500LM 1H NP

Code: 661453

Manufacturer: LEGRAND

Description:

LED PROJECTOR 2500LM 1H NP
Standard LED emergency luminaire Twinspot - non autotest - 2 x 1250 lm - 1h
LED projector 2500 lumens - 2 spotlights - IP55

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND > WATERTIGHT EMERGENCIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)14.07
  • Weight (g)4 085.00
Product characteristics
Standard LED spotlight luminaires - Non-Maintained (NM)
  • 2 x 1250 lm – 1h
General characteristics
LED Twinspot emergency lighting luminaires
  • High performance LED non maintained emergency lighting luminaires
  • Certified to IEC and EN 60598-2-22 standards
  • High power LEDs spotlights with optimized lighting distribution
  • Low consumption electronic switching power supply
  • High capacity terminals: 2 x 2.5 mm² - IP 55 - IK 07
  • Duration: 1, 2 and 3 hours. Ni-Cd batteries. Recharge time: 24h
  • Green charge indicator with high luminosity LED, to improve visibility from the floor when high installation
  • Power supply: 230 V~ ± 10% - 50/60 Hz. Class II
  • Rest mode with remote control device Cat.No 0 039 01 to avoid battery discharge in case of voluntary power cut
  • Surface mounting installation with 4 wall-mounting lugs (Cat.No 0 358 02, supplied) or 4 screws (not supplied)

ETIM for 661453 Luminaires (EC001957)

Feature nameConductor cross section (EF000085)
Feature value2.5 mm²
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMounting method (EF000003)
Feature valueWall surface mounted
Feature nameConnection type (EF000124)
Feature valueScrew connection
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value250 W
Feature nameColour temperature (EF009346)
Feature value5000 K
Feature nameRated luminous flux according to IEC 62722-2-1 (EF009349)
Feature value2500 lm
Feature nameNumber of lighting heads (EF004258)
Feature value2
Feature nameNominal current (EF009345)
Feature value1090 mA
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMonitoring equipment (EF008091)
Feature valueNone
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameHeight/depth (EF001456)
Feature value98 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameWidth (EF000008)
Feature value311 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant current
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP55
Feature nameLuminous flux in standby mode (EF011954)
Feature value0 lm
Feature nameSuitable for labelling type (EF001277)
Feature valueOther
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameHousing colour (EF000136)
Feature valueWhite
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameFunction (EF000030)
Feature valueEscape route lighting/signage
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameBattery technology (EF004351)
Feature valueNiCd
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameSuitable for standby switching (EF017055)
Feature valueYes
Feature nameLength (EF001438)
Feature value311 mm
