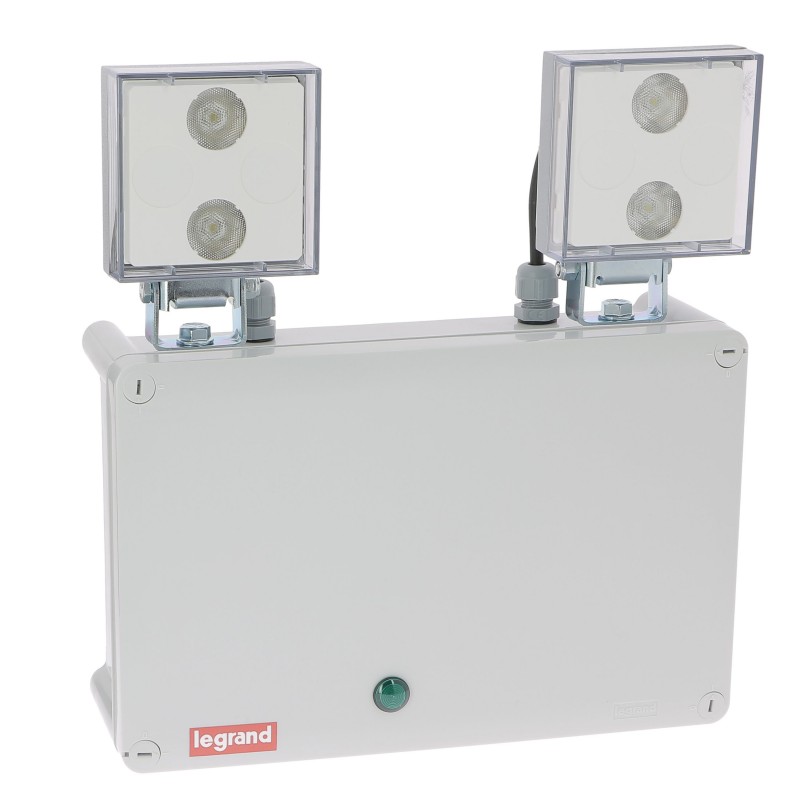

661452 LEGRAND LED PROJECTOR 1500LM 1H NP
661452
LEGRAND
LED PROJECTOR 1500LM 1H NP
Standard LED emergency luminaire Twinspot - non autotest - 2 x 750 lm - 1h
LED Projector 1500 lumens - 2 spotlights - IP55
Luminaires > Emergency luminaire
WATERTIGHT EMERGENCIES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)14.07
- Weight (g)3 481.00
- 2 x 750 lm – 1h
- High performance LED non maintained emergency lighting luminaires
- Certified to IEC and EN 60598-2-22 standards
- High power LEDs spotlights with optimized lighting distribution
- Low consumption electronic switching power supply
- High capacity terminals: 2 x 2.5 mm² - IP 55 - IK 07
- Duration: 1, 2 and 3 hours. Ni-Cd batteries. Recharge time: 24h
- Green charge indicator with high luminosity LED, to improve visibility from the floor when high installation
- Power supply: 230 V~ ± 10% - 50/60 Hz. Class II
- Rest mode with remote control device Cat.No 0 039 01 to avoid battery discharge in case of voluntary power cut
- Surface mounting installation with 4 wall-mounting lugs (Cat.No 0 358 02, supplied) or 4 screws (not supplied)
| Feature Name | Feature Value |
|---|---|
| Conductor cross section (EF000085) | 2.5 mm² |
| With remote control (EF000483) | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| Lamp type (EF002423) | LED non-replaceable |
| Mounting method (EF000003) | Wall surface mounted |
| Connection type (EF000124) | Screw connection |
| Material cover (EF004284) | Plastic opal |
| With remote switch connection (EF007947) | No |
| Max. system power (EF009347) | 150 W |
| Colour temperature (EF009346) | 5000 K |
| Rated luminous flux according to IEC 62722-2-1 (EF009349) | 1500 lm |
| Number of lighting heads (EF004258) | 2 |
| Nominal current (EF009345) | 650 mA |
| Impact strength (EF004293) | IK07 |
| Monitoring equipment (EF008091) | None |
| Protection class according to IEC 61140 (EF000004) | II |
| Lamp holder (EF000048) | Other |
| Height/depth (EF001456) | 98 mm |
| With pictogram (EF011099) | No |
| Width (EF000008) | 311 mm |
| Type of control gear (EF000381) | LED driver constant current |
| Degree of protection (IP) (EF005474) | IP55 |
| Luminous flux in standby mode (EF011954) | 0 lm |
| Suitable for labelling type (EF001277) | Other |
| Housing material (EF001596) | Plastic |
| Voltage type (EF000187) | AC |
| Number of poles (EF001391) | 4 |
| Housing colour (EF000136) | White |
| Light distributor (EF012170) | Diffuser |
| With light source (EF005905) | Yes |
| Function (EF000030) | Escape route lighting/signage |
| Nominal voltage (EF005127) | 230 V |
| Power supply system (EF000233) | Peripheral (individual battery) |
| Battery technology (EF004351) | NiCd |
| Nominal operation time (EF012518) | 1 h |
| Suitable for standby switching (EF017055) | Yes |
| Length (EF001438) | 311 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 661452 EN_661452.pdf | 135 Kbytes |
 |
