660911 LEGRAND LIPSO P. BALIZ.AUT.FRONT BLUE
660911
LEGRAND
LIPSO P. BALIZ.AUT.FRONT BLUE

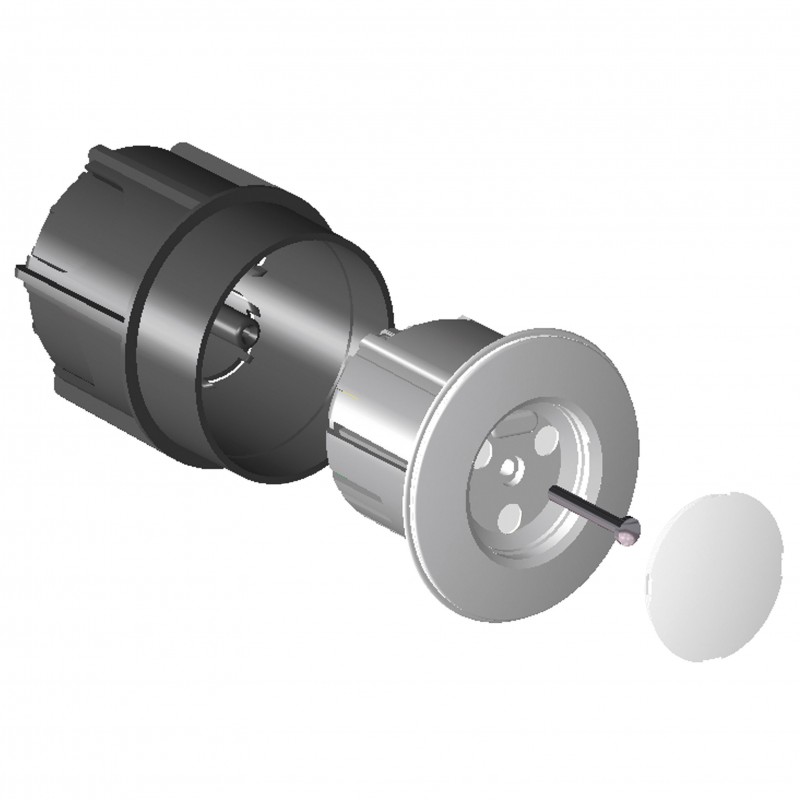

Pilot beacon LIPSO - standalone - IP44 - front - blue
LIPSO beacon light - standalone - IP44 - front - blue
Luminaires > Emergency luminaire
BALIZED PILOTS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Pilot beacon LIPSO - Standalone - IP44 - IK07 - Light signaling front - emergency Lighting in white color - Lighting sign in blue colorGeneral characteristics
Pilots marked LIPSO - Power supply: 230 V ± 10 % - 50/60 Hz. Class II - luminous Flux: 1,5 lumens - Led maintenance free - battery life: 1 hour - Batteries Ni-Cd 2.4 V -2/3 AAA - Indicators of battery charge - Start-at rest with remote control - Terminals of screw for 2 cables of 1,5mm2 - mounting box for 1 screw necesiadad leveling - Are installed in the flush box itself, universal enclosure or partition Plasterboard type - Finish zamak, aluminum color| Feature Name | Feature Value |
|---|---|
| Conductor cross section (EF000085) | 2.5 mm² |
| With remote control (EF000483) | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | No |
| Lamp type (EF002423) | LED non-replaceable |
| Mounting method (EF000003) | Built-in |
| Connection type (EF000124) | Screw connection |
| Material cover (EF004284) | Plastic opal |
| Built-in height/depth (EF023518) | 41 mm |
| With remote switch connection (EF007947) | No |
| Max. system power (EF009347) | 0.4 W |
| Colour temperature (EF009346) | 5500 K |
| Recognition distance (EF008732) | 15 m |
| Number of lighting heads (EF004258) | 1 |
| Nominal current (EF009345) | 1.6 mA |
| Impact strength (EF004293) | IK07 |
| Monitoring equipment (EF008091) | None |
| Protection class according to IEC 61140 (EF000004) | II |
| Lamp holder (EF000048) | Other |
| Height/depth (EF001456) | 48 mm |
| With pictogram (EF011099) | No |
| Width (EF000008) | 58 mm |
| Built-in width (EF000846) | 50 mm |
| Type of control gear (EF000381) | LED driver constant current |
| Built-in length (EF004265) | 50 mm |
| Degree of protection (IP) (EF005474) | IP44 |
| Luminous flux in standby mode (EF011954) | 0 lm |
| Housing material (EF001596) | Aluminium |
| Voltage type (EF000187) | AC |
| Number of poles (EF001391) | 4 |
| Housing colour (EF000136) | Aluminium |
| Outer diameter (EF000015) | 58 mm |
| Light distributor (EF012170) | Diffuser |
| With light source (EF005905) | Yes |
| Nominal voltage (EF005127) | 207 V |
| Power supply system (EF000233) | Peripheral (individual battery) |
| Battery technology (EF004351) | NiMH |
| Nominal operation time (EF012518) | 1 h |
| Length (EF001438) | 58 mm |
| Built-in diameter (EF000943) | 50 mm |
| Suitable for continuous circuit (EF017056) | Yes |
