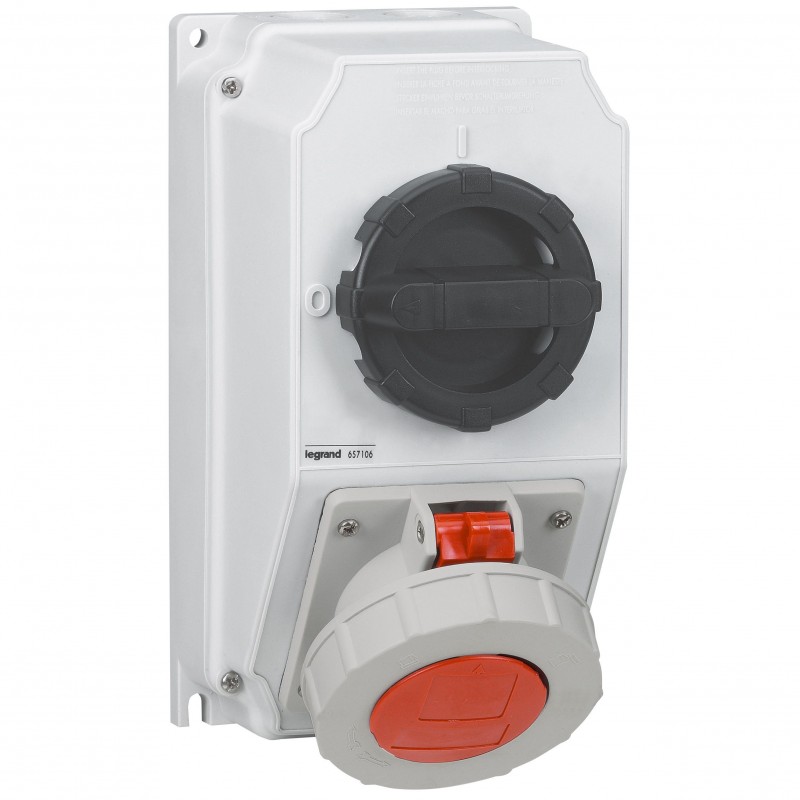

657106 LEGRAND COMB. REFRIGERATED CONTAINER
657106
LEGRAND
2
COMB. REFRIGERATED CONTAINER
Combined unit P17- for refrigerated containers - IP66/67 - 440 V~ - 32 A - 3P+E
P17 PRO combination for refrigerated containers. 440V~ 32A 3P+T IP66/67
Industrial socket/plug applications > CEE socket outlet combination
SOCKETS AND COMBINED P-17
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)12.00
- Weight (g)1 418.00
- 32 A - 440 VA - 50/60 Hz - 3P+E - 3 hours IK 09
- Plastic body and cover - Stainless steel screws
- Combined unit with interlocked switched socket
- Double mechanical interlock
- Cable glands are not supplied
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 238 mm |
| Degree of protection (IP) (EF005474) | IP66 |
| Housing material (EF001596) | Plastic |
| Protection (EF000781) | None |
| Earth leakage switch (EF002657) | None |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 1 |
| Diameter cable entry (EF016110) | M25 |
| Number of miniature circuit breakers (MCB) (EF005564) | 0 |
| CEE socket outlet 63 A (EF002790) | None |
| CEE socket outlet 125 A (EF002791) | None |
| Power supply/connection possibility (EF002794) | Other |
| Handling (EF002795) | Wall mounting |
| Military model (EF006050) | No |
| Depth (EF000049) | 152 mm |
| CEE socket outlet 32 A (EF002789) | 1x32A xp xxxV |
| Colour (EF000007) | Grey |
| CEE socket outlet 16 A (EF002788) | None |
| Width (EF000008) | 120 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 657106 EN_657106.pdf | 1 Mbytes |
 |
