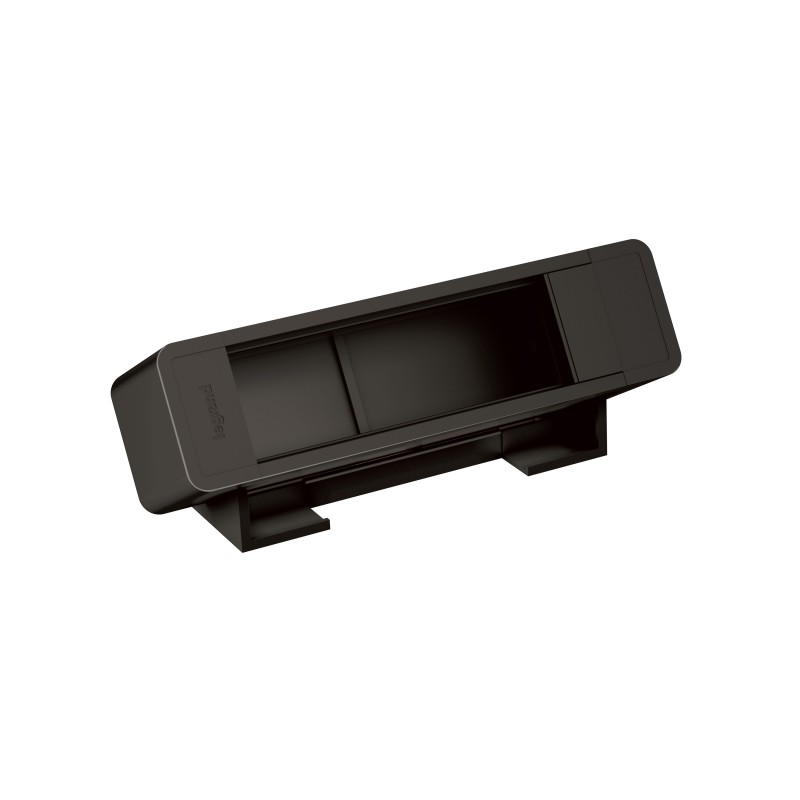

LEGRAND 655100BK - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

655100BK LEGRAND IN-ONDESK 6M TO EQUIP NG

Code: 655100BK

Manufacturer: LEGRAND

Description:

IN-ONDESK 6M TO EQUIP NG
Incara On Desk to equip with 6 modules in black color
Incara On Desk to equip 6 modules in black color

Categories:

  • Domestic switching devices > Desk connecting unit
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 45,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Incara On desk. Desktop socket block to equip with 6 modules. Black.
ModelOther
CollapsibleNo
ExtensibleNo
FormRectangular
Materialaluminium
ColourBlack
Gloss GradeMate
Longitude213.4 mm
Width79.4 mm
Height85.6 mm
Number of sockets with EEC 7/3 protective contact (type F)0
Number of French Standard Sockets (Type E)0
Number of sockets according to British standard (BS1363)0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
Number of Italian Standard Power Sockets Type P40 L/F0
With on/off switchNo
Number of HDMI Ports0
Number of 15-pin female D-Sub connectors0
Number of audio connections0
Number of CAT 5E connections0
Number of CAT Connections 60
Number of CAT 6A connections0
Number of spaces reserved for modules6
Number of circuit breakers0
Surge protectionNo
EMC FilterNo
With built-in USB power supplyNo
Nominal Voltage250 V
Protection Class (IP)IP20
Impact resistanceIK07
Antibacterial treatmentNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Nominal current16-20 A
Display of markings on the connection terminalsNo
Halogen-freeNo
PrewiredNo
Connection MethodScrew-on terminal
Terminal capacity0.75-4 mm²
Label Space/Print AreaNo

ETIM for 655100BK Domestic wiring accessories and controls (EC002759)

Feature nameNumber of socket outlets Swiss standard type 25 (EF011979)
Feature value0
Feature nameNumber of socket outlets Swiss standard type 23 (EF011978)
Feature value0
Feature nameNumber of CAT 5E connections (EF008504)
Feature value0
Feature nameHeight (EF000040)
Feature value85.6 mm
Feature nameNumber of socket outlets Swiss standard type 15 (EF011977)
Feature value0
Feature nameNumber of CAT 6 connections (EF008505)
Feature value0
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of socket outlets Swiss standard type 13 (EF011975)
Feature value0
Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameWith built-in USB power supply (EF009258)
Feature valueNo
Feature nameNumber of audio connections (EF008501)
Feature value0
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of D-Sub connections 15-pole (EF009450)
Feature value0
Feature nameNumber of socket outlets Italian standard type P40 L/F (EF017641)
Feature value0
Feature nameNumber of CAT 6A connections (EF014598)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/5 (type E) (EF014597)
Feature value0
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameModel (EF000010)
Feature valueOther
Feature nameFolding (EF006476)
Feature valueNo
Feature nameNumber of HDMI connections (EF007620)
Feature value0
Feature nameNumber of empty module positions (EF012038)
Feature value6
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMains filter (EF000947)
Feature valueNo
Feature nameDegree of gloss (EF024897)
Feature valueMatt
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameColour (EF000007)
Feature valueBlack
Feature nameLength (EF001438)
Feature value213.4 mm
Feature nameWidth (EF000008)
Feature value79.4 mm
Feature nameExtendable (EF000329)
Feature valueNo
