655044 LEGRAND IN-DISQ80 TOM+USB A+C BL 2M

Code: 655044

Manufacturer: LEGRAND

Description:

IN-DISQ80 TOM+USB A+C BL 2M
IN-DISQ80 SCH+USB A+C WHITE 2M

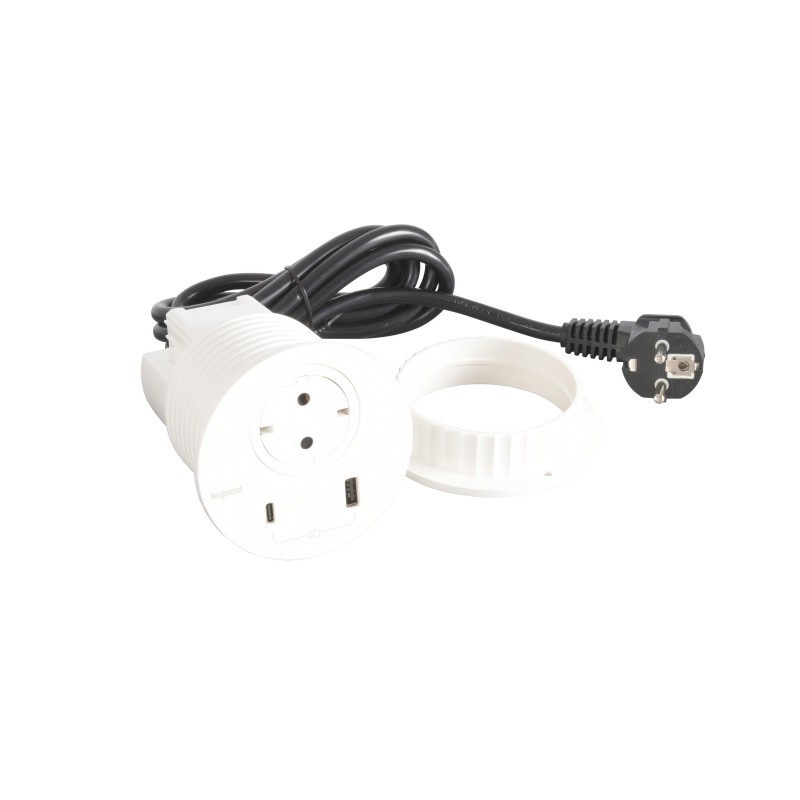

Incara Disq80. 1 flush 2P+T recessed socket and 1 15W USB A+C charger. 2m cable. White.
Incara Disq80 - 2P+T/USB A+C for embedding. Cable 2m. White

Categories:

  • Domestic switching devices > Desk connecting unit
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 79,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Overview

Recessed solution with: 1 flush socket 2P+T 16A 250V with safety shutters. 1 USB type A+C charger 15W 110-240V. IK07. Ring and socket in white polycarbonate. Cable 2m.

description
Incara Disq80 offers 2 functions in a furniture integration diameter of 80 mm: power socket and USB A+C 15W for a quick and ergonomic connection of mobile devices. Designer workstations and modern finishes. Incara Disq80 is available in 3 finishes: white, black, metallic or with a metal sliding lid. It is supplied with a cable equipped with a 2P+T plug or a Wieland connector. Compliance with IEC 60881-1

specifications

ModelInstallation
CollapsibleNo
ExtensibleNo
FormRound
MaterialPlastic
ColourWhite
Gloss GradeBright
Height113 mm
Installation Depth109 mm
Diameter105 mm
Number of sockets with EEC 7/3 protective contact (type F)1
Number of sockets according to British standard (BS1363)0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
Number of French Standard Sockets (Type E)0
Number of Italian Standard Power Sockets Type P40 L/F0
With on/off switchNo
Number of HDMI Ports0
Number of 15-pin female D-Sub connectors0
Number of USB connections2
Number of audio connections0
Number of CAT 5E connections0
Number of CAT Connections 60
Number of CAT 6A connections0
Number of spaces reserved for modules0
Number of circuit breakers0
Surge protectionNo
EMC FilterNo
With built-in USB power supplyYes
Nominal Voltage250 V
Protection Class (IP)IP20
Impact resistanceIK07
Antibacterial treatmentNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Nominal current16-16 A
Standby consumption0.06 mA
Display of markings on the connection terminalsYes
Halogen-freeNo
PrewiredYes
Connection MethodNot applicable
Terminal capacity2.5-2.5 mm²
Label Space/Print AreaNo

ETIM for 655044 Domestic wiring accessories and controls (EC002759)

Feature nameNumber of socket outlets Swiss standard type 25 (EF011979)
Feature value0
Feature nameNumber of socket outlets Swiss standard type 23 (EF011978)
Feature value0
Feature nameNumber of CAT 5E connections (EF008504)
Feature value0
Feature nameHeight (EF000040)
Feature value113 mm
Feature nameNumber of socket outlets Swiss standard type 15 (EF011977)
Feature value0
Feature nameNumber of CAT 6 connections (EF008505)
Feature value0
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of socket outlets Swiss standard type 13 (EF011975)
Feature value0
Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameWith built-in USB power supply (EF009258)
Feature valueYes
Feature nameNumber of audio connections (EF008501)
Feature value0
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of D-Sub connections 15-pole (EF009450)
Feature value0
Feature nameNumber of socket outlets Italian standard type P40 L/F (EF017641)
Feature value0
Feature nameNumber of CAT 6A connections (EF014598)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/5 (type E) (EF014597)
Feature value0
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value1
Feature nameBuilt-in depth (EF000218)
Feature value109 mm
Feature nameShape (EF000051)
Feature valueRound
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameModel (EF000010)
Feature valueBuilt-in
Feature nameFolding (EF006476)
Feature valueNo
Feature nameDiameter (EF000551)
Feature value105 mm
Feature nameNumber of HDMI connections (EF007620)
Feature value0
Feature nameNumber of empty module positions (EF012038)
Feature value0
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMains filter (EF000947)
Feature valueNo
Feature nameDegree of gloss (EF024897)
Feature valueGlossy
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameExtendable (EF000329)
Feature valueNo
