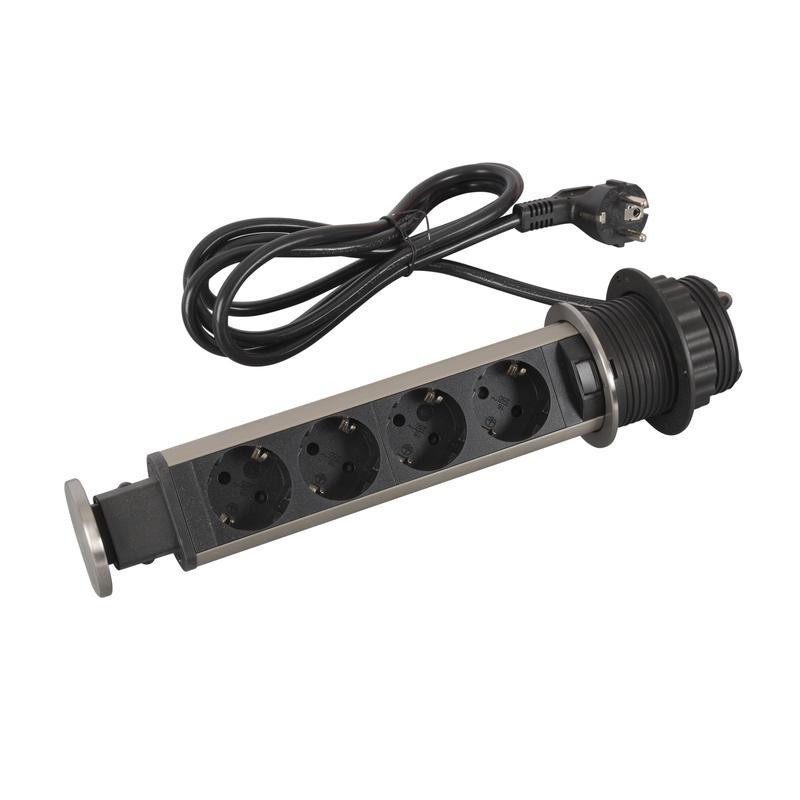

654976 LEGRAND IN-TOWER 60 4SCH CABLE 2MT
654976
LEGRAND
IN-TOWER 60 4SCH CABLE 2MT
Incara Tower 60mm. Recessed installation in furniture. 4 2P+T sockets. 2m cable. Metallic finish
Incara Tower 60mm for recessed. 4x2P+T. 2m cable. Metallic
Domestic switching devices > Desk connecting unit
COLUMN WIRING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Overview
Incara Tower 60 equipped with 4 sockets 2P+T 16A 250V~ 3680W 50/60Hz. 2m cable. Manual opening. IK07 IP20. Material aluminum, PA and stainless steel ring and end cap. Black and metal color.
description
Incara Tower 60 is a discreet retractable electrical and data connection solution for embedding meeting tables with a 60mm small diameter drill. Table thickness of 6-50mm. Compliance with IEC 60881-1 for 2P+T sockets and IEC 62368-1 for USB chargers.specifications
| Model | Installation |
|---|---|
| Collapsible | Yes |
| Extensible | No |
| Form | Round |
| Material | Plastic |
| Colour | Black |
| Gloss Grade | Mate |
| Longitude | 367 mm |
| Installation Depth | 379 mm |
| Diameter | 84.4 mm |
| Number of sockets with EEC 7/3 protective contact (type F) | 4 |
| Number of sockets according to British standard (BS1363) | 0 |
| Number of Swiss Standard Type 13 sockets | 0 |
| Number of Swiss Standard Type 15 Power Sockets | 0 |
| Number of Swiss Standard Type 23 sockets | 0 |
| Number of Swiss Standard Type 25 sockets | 0 |
| Number of French Standard Sockets (Type E) | 0 |
| Number of Italian Standard Power Sockets Type P40 L/F | 0 |
| With on/off switch | No |
| Number of HDMI Ports | 0 |
| Number of 15-pin female D-Sub connectors | 0 |
| Number of USB connections | 0 |
| Number of audio connections | 0 |
| Number of CAT 5E connections | 0 |
|---|---|
| Number of CAT Connections 6 | 0 |
| Number of CAT 6A connections | 0 |
| Number of spaces reserved for modules | 0 |
| Number of circuit breakers | 0 |
| Surge protection | No |
| EMC Filter | No |
| With built-in USB power supply | No |
| Nominal Voltage | 250 V |
| Protection Class (IP) | IP20 |
| Impact resistance | IK06 |
| Antibacterial treatment | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Nominal current | 16-16 A |
| Standby consumption | 0.08 mA |
| Display of markings on the connection terminals | No |
| Halogen-free | Yes |
| Prewired | No |
| Connection Method | Not applicable |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of CAT 5E connections (EF008504) | 0 |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Number of CAT 6 connections (EF008505) | 0 |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Over voltage protection (EF001332) | No |
| Material (EF002169) | Plastic |
| With built-in USB power supply (EF009258) | No |
| Number of audio connections (EF008501) | 0 |
| Nominal voltage (EF000002) | 250 V |
| Number of D-Sub connections 15-pole (EF009450) | 0 |
| Number of socket outlets Italian standard type P40 L/F (EF017641) | 0 |
| Number of CAT 6A connections (EF014598) | 0 |
| Number of socket outlets with protective contact CEE 7/5 (type E) (EF014597) | 0 |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Operating temperature (EF001742) | -5 °C |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 4 |
| Built-in depth (EF000218) | 379 mm |
| Shape (EF000051) | Round |
| Number of miniature circuit breakers (MCB) (EF005564) | 0 |
| Model (EF000010) | Built-in |
| Folding (EF006476) | Yes |
| Diameter (EF000551) | 84.4 mm |
| Number of HDMI connections (EF007620) | 0 |
| Number of empty module positions (EF012038) | 0 |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK06 |
| Mains filter (EF000947) | No |
| Degree of gloss (EF024897) | Matt |
| With on/off switch (EF000488) | No |
| Colour (EF000007) | Black |
| Length (EF001438) | 367 mm |
| Extendable (EF000329) | No |
