LEGRANDCOLUMN WIRING MANAGEMENT653568 LEGRAND BLOC 2PC 2PC DET 2 RJ45 CORD

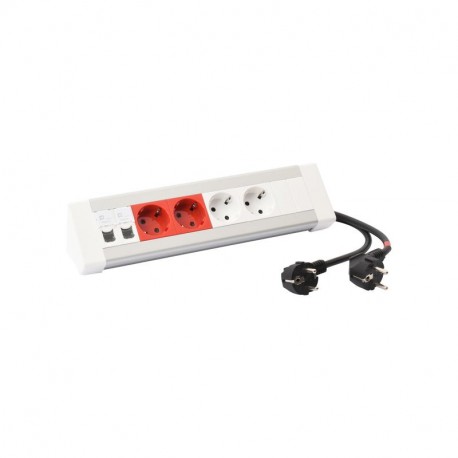

LEGRAND 653568 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

653568 LEGRAND BLOC 2PC 2PC DET 2 RJ45 CORD

Code: 653568

Manufacturer: LEGRAND

Description:

BLOC 2PC 2PC DET 2 RJ45 CORD
Incara On Desk pre-equipped with 2 white 2P+T sockets + 2 red 2P+T sockets with shutter+ 2 RJ45 cat.6. Cable 3 meters. Aluminium
Incara On Desk 2x2P+T white/2x2P+T red/2xRJ45. 3m cable. Aluminium

Categories:

  • Domestic switching devices > Desk connecting unit
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Overview

Desktop unit with 2 white sockets + 2 red sockets 2P+T 16A 250V equipped with safety shutter + 2 RJ45 cat6, 1 module. 3680W 230V per circuit. With luminous switch. 3m cable with 2P+T plug. Aluminum and white.

description
Desktop unit with 2 white sockets + 2 red sockets 2P+T 16A 250V equipped with safety shutter + 2 RJ45 cat6, 1 module. 3680W 230V per circuit. With luminous switch. 3m cable with 2P+T plug. Aluminum and white. Conforms to IEC 60881-1

specifications

ModelOther
CollapsibleNo
ExtensibleNo
FormRectangular
Materialaluminium
ColourWhite
Longitude322 mm
Width90 mm
Height80 mm
Number of sockets with EEC 7/3 protective contact (type F)0
Number of sockets according to British standard (BS1363)0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
Number of French Standard Sockets (Type E)4
Number of HDMI Ports0
Number of 15-pin female D-Sub connectors0
Number of USB connections0
Number of audio connections0
Number of CAT 5E connections0
Number of CAT Connections 62
Number of CAT 6A connections0
Number of spaces reserved for modules0
Number of circuit breakers0
Surge protectionNo
With built-in USB power supplyNo
Nominal Voltage250 V
Protection Class (IP)IP20
Impact resistanceIK07
Antibacterial treatmentNo
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Nominal current16-16 A
Display of markings on the connection terminalsYes
RAL number9003
Halogen-freeNo
PrewiredYes
Connection MethodScrew-on terminal
Terminal capacity0.75-4 mm²
Label Space/Print AreaYes

ETIM for 653568 Domestic wiring accessories and controls (EC002759)

Feature nameNumber of socket outlets Swiss standard type 25 (EF011979)
Feature value0
Feature nameNumber of socket outlets Swiss standard type 23 (EF011978)
Feature value0
Feature nameNumber of CAT 5E connections (EF008504)
Feature value0
Feature nameHeight (EF000040)
Feature value80 mm
Feature nameNumber of socket outlets Swiss standard type 15 (EF011977)
Feature value0
Feature nameNumber of CAT 6 connections (EF008505)
Feature value2
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of socket outlets Swiss standard type 13 (EF011975)
Feature value0
Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameWith built-in USB power supply (EF009258)
Feature valueNo
Feature nameNumber of audio connections (EF008501)
Feature value0
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameNumber of D-Sub connections 15-pole (EF009450)
Feature value0
Feature nameNumber of CAT 6A connections (EF014598)
Feature value0
Feature nameNumber of socket outlets with protective contact CEE 7/5 (type E) (EF014597)
Feature value4
Feature nameNumber of socket outlets British Standard BS 1363 (EF012037)
Feature value0
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameNumber of socket outlets with protective contact CEE 7/3 (type F) (EF000411)
Feature value0
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameNumber of miniature circuit breakers (MCB) (EF005564)
Feature value0
Feature nameModel (EF000010)
Feature valueOther
Feature nameFolding (EF006476)
Feature valueNo
Feature nameNumber of HDMI connections (EF007620)
Feature value0
Feature nameNumber of empty module positions (EF012038)
Feature value0
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameColour (EF000007)
Feature valueWhite
Feature nameLength (EF001438)
Feature value322 mm
Feature nameWidth (EF000008)
Feature value90 mm
Feature nameExtendable (EF000329)
Feature valueNo
