653566 LEGRAND BLOCK 6 PC SCH INTER CORDON
653566
LEGRAND
BLOCK 6 PC SCH INTER CORDON

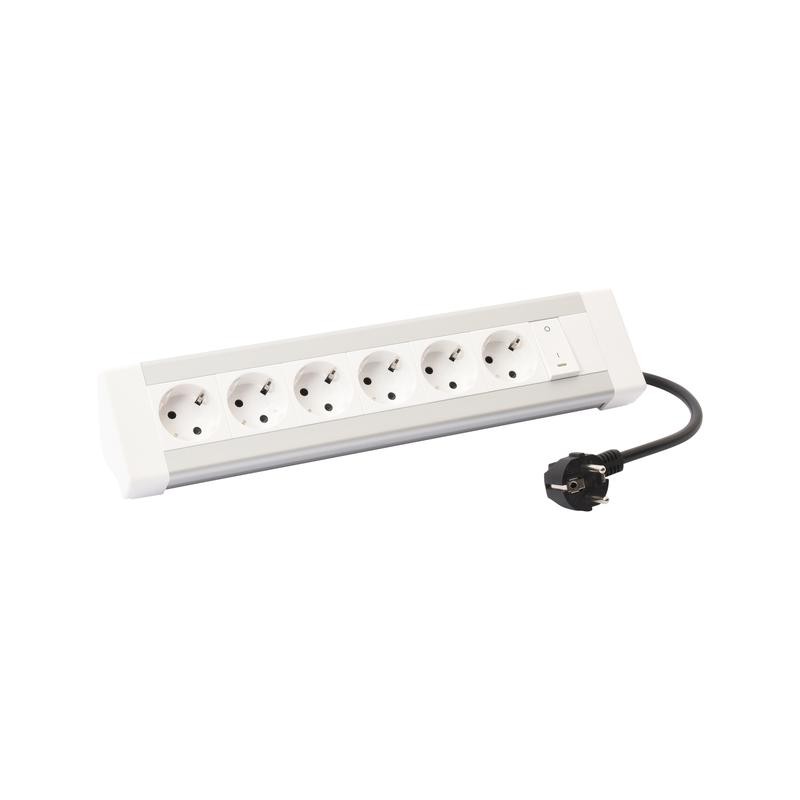

Incara On Desk pre-equipped with 6 2P+T sockets + luminous switch. Cable 3 meters. Aluminium
Incara On Desk 6x2P+T/light switch. 3m cable. Aluminium
Domestic switching devices > Desk connecting unit
COLUMN WIRING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Overview
Desktop unit with 6 2P+T 16A 250V sockets equipped with safety shutter. Max. power 3680W 230V per circuit. With luminous switch. 3 m cable with 2P+T plug. Aluminum and white.
description
Desktop unit 6 sockets 2P+T 16A 250V equipped with safety shutter. Max. power 3680W 230V per circuit. With luminous switch. 3 m cable with 2P+T plug. Aluminum and white. Conforms to IEC 60881-1specifications
| Model | Other |
|---|---|
| Collapsible | No |
| Extensible | No |
| Form | Rectangular |
| Material | aluminium |
| Colour | White |
| Longitude | 367 mm |
| Width | 90 mm |
| Height | 80 mm |
| Number of sockets with EEC 7/3 protective contact (type F) | 0 |
| Number of sockets according to British standard (BS1363) | 0 |
| Number of Swiss Standard Type 13 sockets | 0 |
| Number of Swiss Standard Type 15 Power Sockets | 0 |
| Number of Swiss Standard Type 23 sockets | 0 |
| Number of Swiss Standard Type 25 sockets | 0 |
| Number of French Standard Sockets (Type E) | 6 |
| Number of HDMI Ports | 0 |
| Number of 15-pin female D-Sub connectors | 0 |
| Number of USB connections | 0 |
| Number of audio connections | 0 |
| Number of CAT 5E connections | 0 |
| Number of CAT Connections 6 | 0 |
|---|---|
| Number of CAT 6A connections | 0 |
| Number of spaces reserved for modules | 0 |
| Number of circuit breakers | 0 |
| Surge protection | No |
| With built-in USB power supply | No |
| Nominal Voltage | 250 V |
| Protection Class (IP) | IP20 |
| Impact resistance | IK07 |
| Antibacterial treatment | No |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Nominal current | 16-16 A |
| Display of markings on the connection terminals | Yes |
| RAL number | 9003 |
| Halogen-free | No |
| Prewired | Yes |
| Connection Method | Screw-on terminal |
| Terminal capacity | 0.75-4 mm² |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of CAT 5E connections (EF008504) | 0 |
| Height (EF000040) | 80 mm |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Number of CAT 6 connections (EF008505) | 0 |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Over voltage protection (EF001332) | No |
| Material (EF002169) | Aluminium |
| With built-in USB power supply (EF009258) | No |
| Number of audio connections (EF008501) | 0 |
| Nominal voltage (EF000002) | 250 V |
| Number of D-Sub connections 15-pole (EF009450) | 0 |
| Number of CAT 6A connections (EF014598) | 0 |
| Number of socket outlets with protective contact CEE 7/5 (type E) (EF014597) | 6 |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Operating temperature (EF001742) | -5 °C |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Shape (EF000051) | Rectangular |
| Number of miniature circuit breakers (MCB) (EF005564) | 0 |
| Model (EF000010) | Other |
| Folding (EF006476) | No |
| Number of HDMI connections (EF007620) | 0 |
| Number of empty module positions (EF012038) | 0 |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| Colour (EF000007) | White |
| Length (EF001438) | 367 mm |
| Width (EF000008) | 90 mm |
| Extendable (EF000329) | No |
