LEGRAND 653200 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

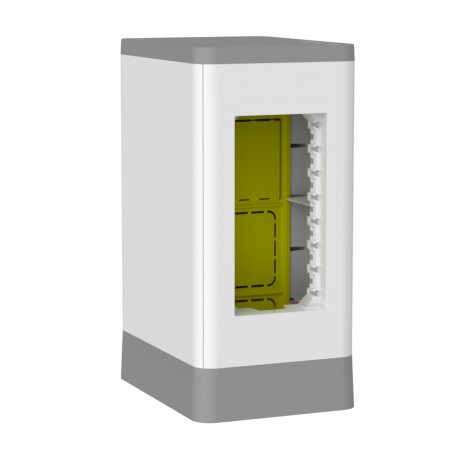

653200 LEGRAND COMPACT MINI COLUMN

Code: 653200

Manufacturer: LEGRAND

Description:

COMPACT MINI COLUMN
Compact floor mini column for cabling devices in commercial buildings (new and renovation)
Compact floor column for wiring devices

Categories:

  • Installation column systems > Installation column
  • LEGRAND > COLUMN WIRING MANAGEMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 34,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

The compact mini column, with dimensions of 110x80x170mm, is ideal for wiring in commercial buildings, both in new projects and renovations. Its removable sides make it easy to access cables during installation. It offers IP40 protection against foreign bodies of 1 mm or more, and IK08 protection that guarantees resistance to impacts of up to 5 joules. It complies with the IEC 61084-2-4 standard and is made of halogen-free plastic, with the body in white (RAL 9003) and parts in light gray. It is fixed to the ground by 4 screws and has capacity for 4 modules, and can be expanded indefinitely with additional accessories. Cables can enter through conduits in concrete slabs or ground channels. In addition, it includes a partition to separate power and data circuits, which contributes to a tidy and safe installation.
Column ShapeRectangular
ModelOne side
PrewiredNo
AdjustableNo
Column Height170-340 mm
Column Depth110 mm
Column Width80 mm
Number of usable lids1
Cover width80 mm
Top Depth110 mm
Attachment TypeFoot (base)
Changeable LocationYes
Suitable for ceiling mountingNo
Floor MountYes
Cable inputUnder
Continuous profileNo
Installation column materialPlastic
Installation column material qualityPolyvinyl chloride (PVC)
Halogen-free service column materialYes
Column surfaceNo treatment
Column colorWhite
RAL number of the column9003
Upper materialPlastic
Upper Material QualityPolyvinyl chloride (PVC)
Halogen-free upper materialYes
Top coverNo treatment
Top Cover ColorOther
Number of partitions4

ETIM for 653200 Powerpoles and powerposts (EC001941)

Feature nameSurface protection column (EF006400)
Feature valueUntreated
Feature nameColour column (EF007757)
Feature valueWhite
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueNo
Feature nameColour top cover (EF006405)
Feature valueOther
Feature nameNumber of partitions (EF004446)
Feature value4
Feature nameMaterial installation column (EF005413)
Feature valuePlastic
Feature nameType of fastening (EF002442)
Feature valueStand (base)
Feature nameCover surface (EF008007)
Feature valueUntreated
Feature nameRAL-number column (EF008025)
Feature value9003
Feature namePlace variable (EF006286)
Feature valueYes
Feature nameThrough-going profile (EF005690)
Feature valueNo
Feature nameAdjustable (EF000996)
Feature valueNo
Feature nameCable entry (EF000537)
Feature valueBelow
Feature nameCover width (EF005146)
Feature value80 mm
Feature nameMaterial cover (EF005420)
Feature valuePlastic
Feature nameColumn height (EF005222)
Feature value170 mm
Feature nameModel (EF000010)
Feature valueSingle-sided
Feature nameMaterial quality installation column (EF008136)
Feature valuePolyvinyl chloride (PVC)
Feature nameMaterial quality cover (EF008137)
Feature valuePolyvinyl chloride (PVC)
Feature nameMaterial cover halogen free (EF008132)
Feature valueYes
Feature namePrewired (EF008110)
Feature valueNo
Feature nameColumn depth (EF012218)
Feature value110 mm
Feature nameCover depth (EF012219)
Feature value110 mm
Feature nameMaterial installation column halogen free (EF008131)
Feature valueYes
Feature nameColumn width (EF012461)
Feature value80 mm
Feature nameSuitable for floor mounting (EF025108)
Feature valueYes
Feature namePillar shape (EF006309)
Feature valueRectangular
Feature nameNumber of usable covers (EF002923)
Feature value1
