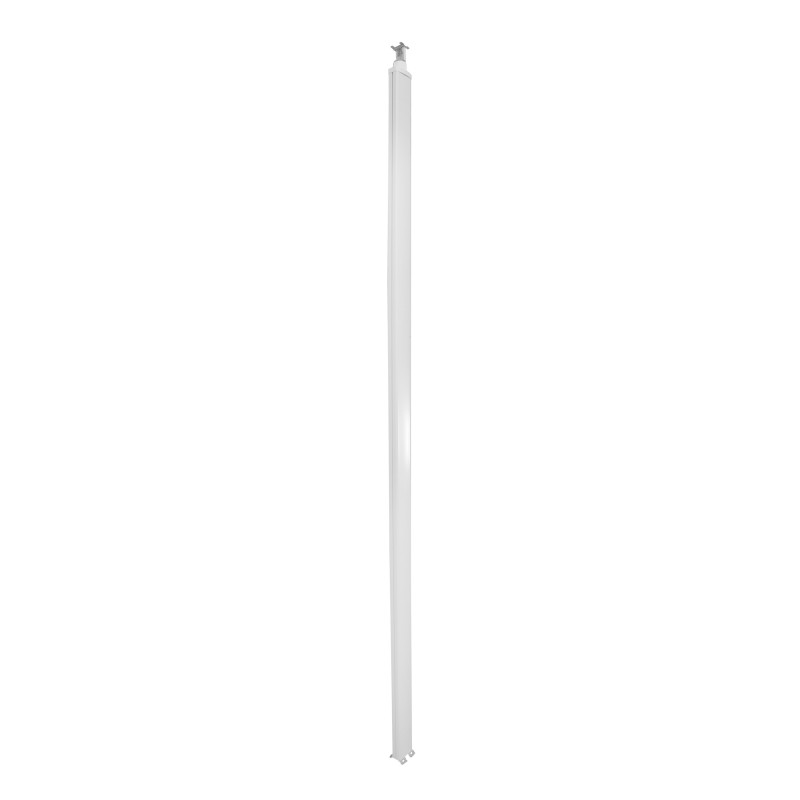

653113 LEGRAND COLUMN 1 COMP T80 3.9 M BL
653113
LEGRAND
COLUMN 1 COMP T80 3.9 M BL
Universal column - 1 compartment - height 3.92 m - aluminium body and covers - white finish
Universal column - 1 compartment - H 3.90m - White
Installation column systems > Installation column
COLUMN WIRING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)91.86
- Weight (g)14 100.00
- Aluminium body and covers
- For installation with false ceiling, please consult the technical sheet and installation instructions available on e-catalogue
- Column body height : 3.92 m
- Total height between the floor and the ceiling min. : 4.02 m
- Total height between the floor and the ceiling max. : 5.30 m
- For distribution of power vertically (with the input in separate ducts for high voltage and low voltage cables)
- Power supply via the floor or the ceiling (with ovaline kits)
- To be equipped with supports for wiring accessories
- Cover width 80 mm
| Feature Name | Feature Value |
|---|---|
| Surface protection column (EF006400) | Other |
| Colour column (EF007757) | White |
| Suitable for ceiling mounting (EF021180) | Yes |
| RAL-number cover (EF008026) | 9003 |
| Colour top cover (EF006405) | White |
| Number of partitions (EF004446) | 0 |
| Material installation column (EF005413) | Aluminium |
| Type of fastening (EF002442) | Screwing |
| Cover surface (EF008007) | Other |
| RAL-number column (EF008025) | 9003 |
| Place variable (EF006286) | No |
| Through-going profile (EF005690) | No |
| Adjustable (EF000996) | Yes |
| Cable entry (EF000537) | Above |
| Cover width (EF005146) | 80 mm |
| Material cover (EF005420) | Aluminium |
| Column height (EF005222) | 4020 mm |
| Model (EF000010) | Single-sided |
| Material quality installation column (EF008136) | Other |
| Material quality cover (EF008137) | Other |
| Material cover halogen free (EF008132) | Yes |
| Prewired (EF008110) | No |
| Height levelling (EF007561) | 1280 mm |
| Useful cross section (EF005140) | 6900 mm² |
| Material installation column halogen free (EF008131) | Yes |
| Suitable for floor mounting (EF025108) | Yes |
| Pillar shape (EF006309) | Rectangular |
| Number of usable covers (EF002923) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 653113 EN_653113.pdf | 5 Mbytes |
 |
