653033 LEGRAND COLUMN 2 COMP T45 3.9 M BL
653033
LEGRAND
COLUMN 2 COMP T45 3.9 M BL

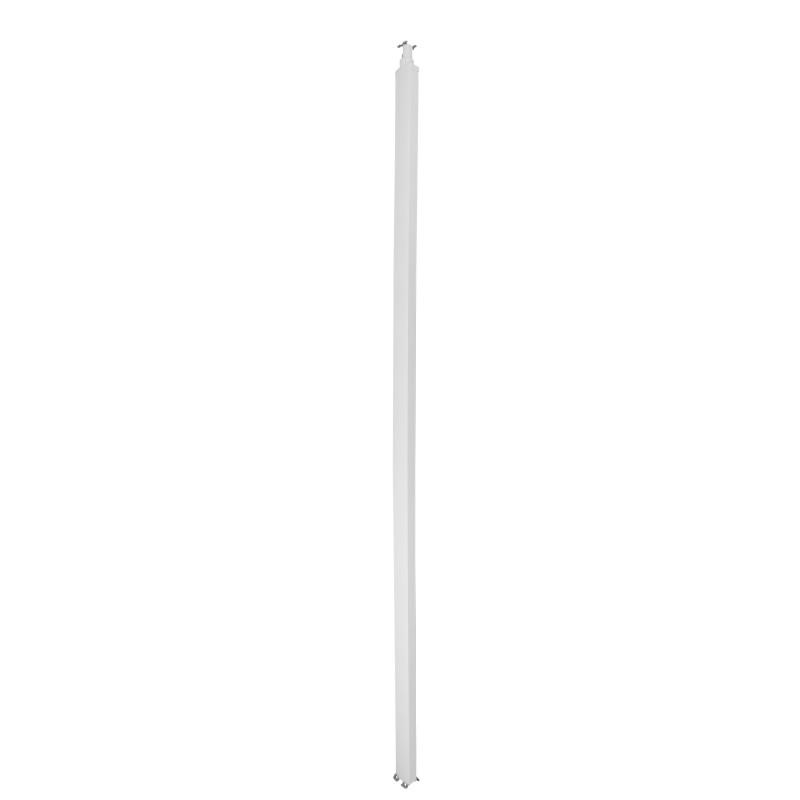

Snap-on column - 2 compartments - height 3.92 m - PVC and covers - white finish
Clip dir column - 2 compartments - H 3.9m - White
Installation column systems > Installation column
COLUMN WIRING MANAGEMENT
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)93.332
- Weight (g)13 500.00
White finish
- PVC body and covers
- When fixing 45 mm wiring devices, use Normaclip anti-pullout accessory Cat.No 6 038 57
- For installation with false ceiling, please consult the technical sheet and installation instructions available on e-catalogue
- Column body height : 3.92 m
- Total height between the floor and the ceiling min. : 4.02 m
- Total height between the floor and the ceiling max. : 5.30 m
- Conform to IEC 61084-2-1 and EN 50085-2-4
- For distribution of power vertically
- Power supply via the ceiling and/or the floor
- To be equipped with Arteor or Mosaic wiring accessories (direct clipping) and Normaclip anti-pullout accessory
- Cover width 45 mm
| Feature Name | Feature Value |
|---|---|
| Surface protection column (EF006400) | Other |
| Colour column (EF007757) | White |
| Suitable for ceiling mounting (EF021180) | Yes |
| RAL-number cover (EF008026) | 9003 |
| Colour top cover (EF006405) | White |
| Number of partitions (EF004446) | 1 |
| Material installation column (EF005413) | Aluminium |
| Type of fastening (EF002442) | Screwing |
| Cover surface (EF008007) | Untreated |
| RAL-number column (EF008025) | 9003 |
| Place variable (EF006286) | No |
| Through-going profile (EF005690) | No |
| Adjustable (EF000996) | Yes |
| Cable entry (EF000537) | Above/under |
| Cover width (EF005146) | 45 mm |
| Material cover (EF005420) | Plastic |
| Column height (EF005222) | 4020 mm |
| Model (EF000010) | Double-sided |
| Material quality installation column (EF008136) | Other |
| Material quality cover (EF008137) | Polyvinyl chloride (PVC) |
| Material cover halogen free (EF008132) | No |
| Prewired (EF008110) | No |
| Height levelling (EF007561) | 1280 mm |
| Useful cross section (EF005140) | 6220 mm² |
| Material installation column halogen free (EF008131) | Yes |
| Suitable for floor mounting (EF025108) | Yes |
| Pillar shape (EF006309) | Oval |
| Number of usable covers (EF002923) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 653033 EN_653033.pdf | 7 Mbytes |
 |
