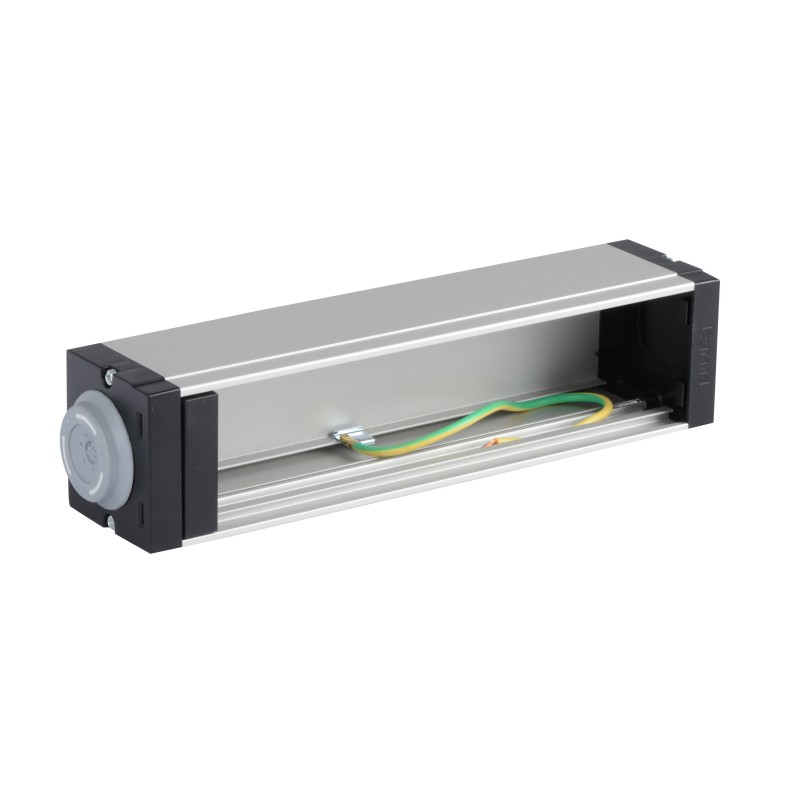

646898 LEGRAND PDU 10" VACUUM
646898
LEGRAND
PDU 10" VACUUM
10" PDU LCS³ - 1 U - to be equipped - 8 Mosaic modules
Empty 10" PDU to equip 8mod Mosaic
Domestic switching devices > Power distribution unit (PDU)
PDU
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)1.614
- Weight (g)225.00
10'' Power Distribution Units (PDU)
- 230 V - 50/60 Hz power supply
- 1 U aluminium profile
- End cap with metallic brackets and cable holder shape
- Quick fixing (no screws) on 19'' uprights
- With shutters and inclined at 55°
- PDU 10
- Capacity: 8 Mosaic modules
- IP 20 - IK 08
- Equipped with:
- 1 reversible door made of screen-printed safety glass and with integrated lock
- 2 x 19'' uprights with U marking and adjustable in depth
- 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
- panels with automatic grounding (ready assembled version)
- earthing kit (flatpack version)
- Anthracite grey RAL 7016
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | No |
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Temperature measurement (EF006229) | No |
| With mounting material (EF006009) | Yes |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Over voltage category (EF006785) | 2 |
| Evaluation (EF007670) | Local |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Mounting direction (EF003824) | Horizontal/vertical |
| With display (EF000458) | No |
| Electrical connection (EF003701) | Other |
| Cable length (EF000536) | 0 m |
| Ampere meter (EF006555) | No |
| Number of miniature circuit breakers (MCB) (EF005564) | 0 |
| Number of height units (EF003561) | 1 |
| Switchable (EF008037) | No |
| Mounting dimension (standardised) (EF000397) | 254 mm (10 inch) |
| Number of C13 socket outlets (EF008511) | 0 |
| Number of other socket outlets (EF006579) | 0 |
| Number of C20 socket outlets (EF008512) | 0 |
| Number of C19 socket outlets (EF008513) | 0 |
| Number of socket outlets with earth pin (EF006578) | 0 |
| Type of electric connection (EF003961) | Other |
| With fuse (EF006693) | No |
| SNMP (EF005284) | No |
| Mains filter (EF000947) | No |
| Mounting size (EF020751) | 254 mm |
| Supply voltage (EF000104) | 230 V |
| Depth (EF000049) | 52.5 mm |
| Colour (EF000007) | Aluminium |
| Length (EF001438) | 237 mm |
| Width (EF000008) | 44.3 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 646898 EN_646898.pdf | 3 Mbytes |
 |
