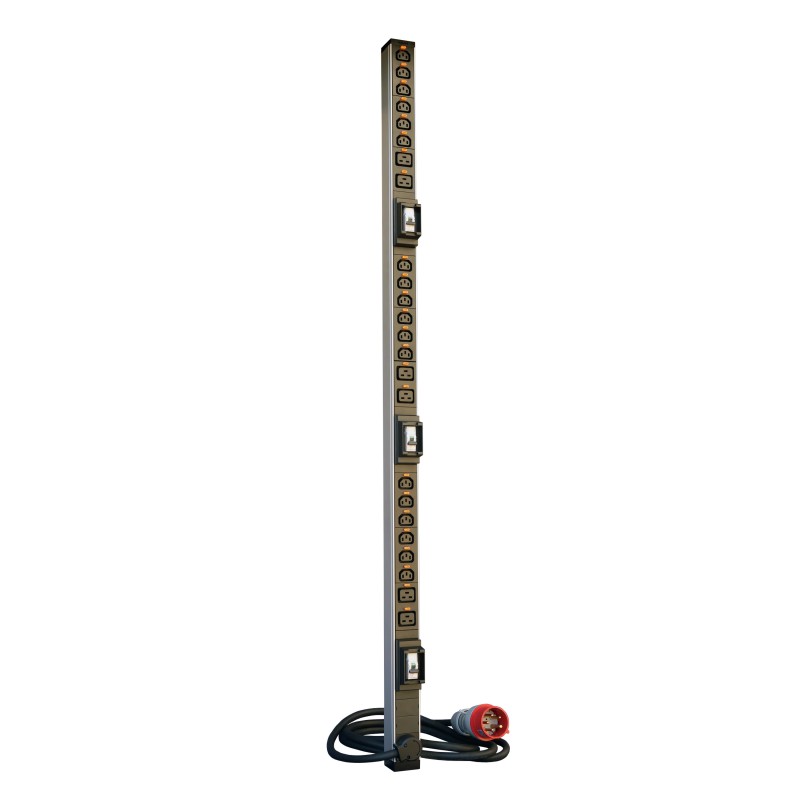

646870 LEGRAND PDU V 18+6 C13 & C19 outlets C/U+MCB+CL
646870
LEGRAND
5
PDU V 18+6 C13 & C19 outlets C/U+MCB+CL
Zero-U three phase PDU LCS³ - 18xC13 + 6xC19 - IEC 60320 standard
0-U PDU with 18 C13 bases, 6 C19 bases and 3m cable with IEC 16A plug
Domestic switching devices > Power distribution unit (PDU)
PDU
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)22.344
- Weight (g)4 400.00
IEC 60320 standard
- 18 C13 outlets + 6 C19 outlets with cord locking system
- 3 m power supply cord with IEC60309 16 A 3P+N+E plug
- To provide ~ electric power for IT equipment in 19'' enclosures
- Three phase Zero-U PDUs for vertical mounting in the cabinet
- 400 V - 50/60 Hz power supply
- Each circuit is protected by 16 A single pole MCB in a support with projecting edges to avoid accidental breakdown. 1 circuit per phase, each with 6 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets
- 330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet
- C13 and C19 standard outlets are equipped with cord locking system to avoid any accidental disconnection. Universal solution compatible with all the cords (C14 plugs for C13 and C20 plugs for C19)
- Delivered with 2 sets of metallic mounting brackets: button brackets (for quick fixing and variable pitch) and standard brackets (for screw fixing)
- Black modules (outlets and functions)
- Aluminium profile
| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | No |
| Number of socket outlets Swiss standard type 25 (EF011979) | 0 |
| Number of socket outlets Swiss standard type 23 (EF011978) | 0 |
| Number of socket outlets Swiss standard type 15 (EF011977) | 0 |
| Temperature measurement (EF006229) | No |
| With mounting material (EF006009) | Yes |
| Number of socket outlets Swiss standard type 13 (EF011975) | 0 |
| Over voltage category (EF006785) | 2 |
| Evaluation (EF007670) | Local |
| Number of socket outlets British Standard BS 1363 (EF012037) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 0 |
| Mounting direction (EF003824) | Vertical |
| With display (EF000458) | No |
| Electrical connection (EF003701) | Connecting cord with plug |
| Cable length (EF000536) | 3 m |
| Ampere meter (EF006555) | No |
| Number of miniature circuit breakers (MCB) (EF005564) | 2 |
| Number of height units (EF003561) | 31 |
| Switchable (EF008037) | No |
| Mounting dimension (standardised) (EF000397) | Metric |
| Number of C13 socket outlets (EF008511) | 18 |
| Number of other socket outlets (EF006579) | 0 |
| Number of C20 socket outlets (EF008512) | 0 |
| Number of C19 socket outlets (EF008513) | 6 |
| Number of socket outlets with earth pin (EF006578) | 0 |
| Type of electric connection (EF003961) | CEE 16 A |
| With fuse (EF006693) | No |
| SNMP (EF005284) | No |
| Mains filter (EF000947) | No |
| Mounting size (EF020751) | 1367 mm |
| Supply voltage (EF000104) | 380 V |
| Depth (EF000049) | 52.5 mm |
| Colour (EF000007) | Black |
| Length (EF001438) | 1384 mm |
| Width (EF000008) | 52 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 646870 EN_646870.pdf | 3 Mbytes |
 |
