LEGRANDENCLOSURES646238 LEGRAND LKO-KIT 2VENT+THERMOS ARM MURAL
LEGRAND 646238 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

646238 LEGRAND LKO-KIT 2VENT+THERMOS ARM MURAL

Code: 646238

Manufacturer: LEGRAND

Description:

LKO-KIT 2VENT+THERMOS ARM MURAL

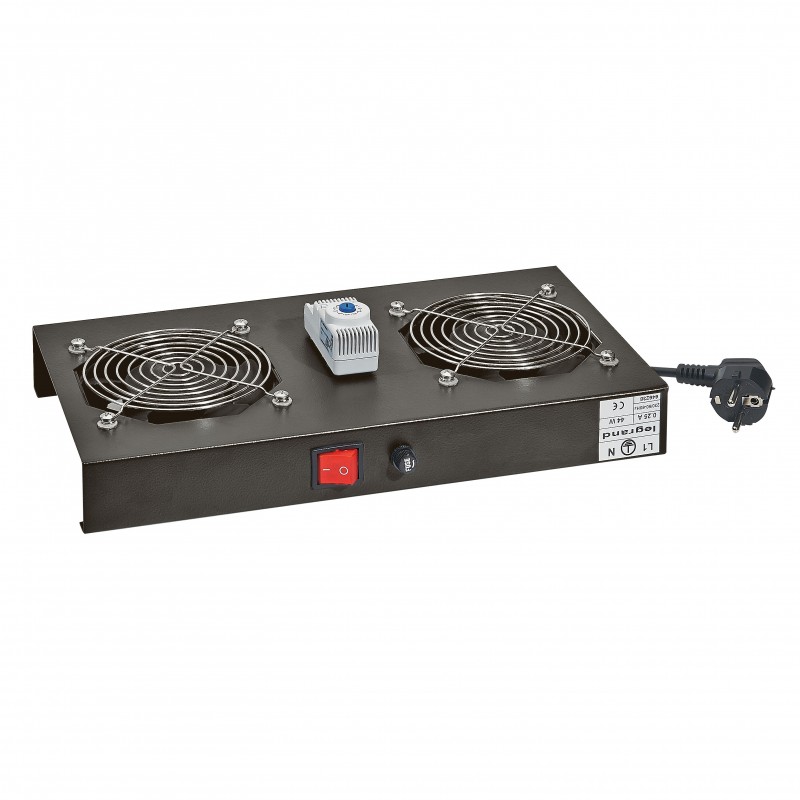

Linkeo fan kit for 19" cabinets - contains 2 fan , 1 thermostat and 1 ON/OFF switch
Fan kit

Categories:

  • Cabinet enclosures > Ventilator (switchgear cabinet)
  • LEGRAND > ENCLOSURES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 93,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)23.202
  • Weight (g)2 430.00
Product characteristics
Equipment for 19'' cabinets
Linkeo fan kit
  • Kit contains:
    • 2 fans
    • 1 thermostat
    • ON/OFF switch
  • Supplied with 2.3 m cable
  • Power supply 230 V~ - 50/60 Hz
General characteristics
Linkeo 19'' and 10'' wall-mounting cabinets
  • IP 20 - IK 08
  • Equipped with:
    • 1 reversible door made of screen-printed safety glass and with integrated lock
    • 2 x 19'' uprights with U marking and adjustable in depth
    • 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
    • panels with automatic grounding (ready assembled version)
    • earthing kit (flatpack version)
  • Anthracite grey RAL 7016

ETIM for 646238 Cabinets and enclosures (EC000320)

Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value230 V
Feature nameSuitable for wall built-in (EF007536)
Feature valueNo
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value230 V
Feature nameHeight (EF000040)
Feature value190 mm
Feature nameWith filter (EF006013)
Feature valueNo
Feature nameAir circulator (EF007516)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameBuilt as slide-in ventilator (EF007126)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueScrew mounting
Feature nameRoof ventilator (EF007099)
Feature valueYes
Feature nameRated power (EF007051)
Feature value44 W
Feature nameVolume flow, freeblowing (EF007173)
Feature value180 m³/h
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameNumber of fans (EF000928)
Feature value2
Feature nameDepth (EF000049)
Feature value82 mm
Feature nameSuitable for 19 inch rack mounting (EF000337)
Feature valueNo
Feature nameColour (EF000007)
Feature valueBlack
Feature nameRAL-number (EF000116)
Feature value7016
Feature nameWidth (EF000008)
Feature value360 mm

DATASHEET - PDF

Title
Size
Type
646238 EN_646221.pdf
568 Kbytes
