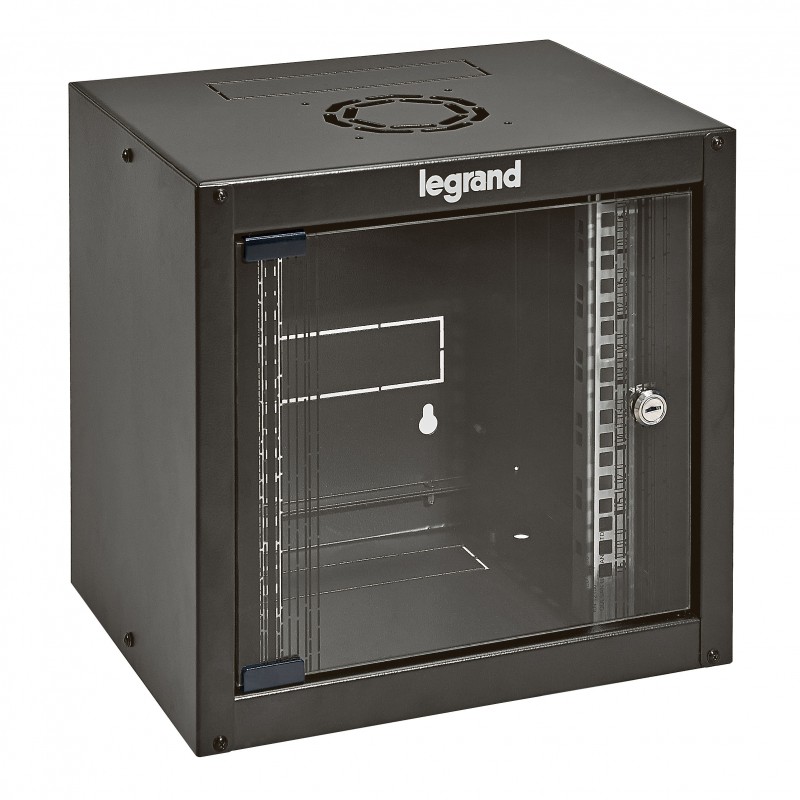

LEGRAND 646230 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

646230 LEGRAND LKO-ARM WALL MOUNTED 10P 6U P-300

Code: 646230

Manufacturer: LEGRAND

Description:

LKO-ARM WALL MOUNTED 10P 6U P-300
LKO-ARM WALL 10P 6U P-300
Linkeo 10" compact cabinet - capacity 6U - dimensions 358x370x300 mm - ready-assembled
19" fixed mural - Fixed panels - 6U - Width. 600mm - Load 18Kg

Categories:

  • Cabinet enclosures > Network cabinet
  • LEGRAND > ENCLOSURES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 186,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)61.296
  • Weight (g)11 390.00
Product characteristics
Linkeo 10'' cabinet
  • Compact cabinet suitable for small business applications
  • Delivered ready-assembled
  • Depth 300 mm
  • Capacity: : 6 U
  • Height: : 358 mm
  • Width: : 370 mm
  • Loading capacity: : 18 kg
General characteristics
Linkeo 19'' and 10'' wall-mounting cabinets
  • IP 20 - IK 08
  • Equipped with:
    • 1 reversible door made of screen-printed safety glass and with integrated lock
    • 2 x 19'' uprights with U marking and adjustable in depth
    • 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
    • panels with automatic grounding (ready assembled version)
    • earthing kit (flatpack version)
  • Anthracite grey RAL 7016

ETIM for 646230 Cabinets and enclosures (EC002500)

Feature nameHeight (EF000040)
Feature value359 mm
Feature nameModel (EF000010)
Feature valueWith permanent frame
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of height units (EF003561)
Feature value6
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameWith front door (EF007377)
Feature valueYes
Feature nameNumber of doors (EF000122)
Feature value1
Feature nameMounting level (EF006795)
Feature valueFront
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameType of profile rail (EF006796)
Feature valueL-shaped
Feature nameModular spacing (EF008458)
Feature value254 mm (10 inch)
Feature nameDemountable (EF007551)
Feature valueYes
Feature nameWith roof plate (EF007375)
Feature valueYes
Feature nameWith earthing (EF007376)
Feature valueYes
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWith sidewall (EF007383)
Feature valueYes
Feature nameDepth (EF000049)
Feature value303 mm
Feature nameMax. load capacity (EF000258)
Feature value18 kg
Feature nameColour (EF000007)
Feature valueGrey
Feature nameType of ventilation (EF000249)
Feature valuePassive
Feature nameRAL-number (EF000116)
Feature value7016
Feature nameWidth (EF000008)
Feature value373 mm
