646223 LEGRAND LKO-ARM WALL 19P 15U PIVOT
646223
LEGRAND
LKO-ARM WALL 19P 15U PIVOT

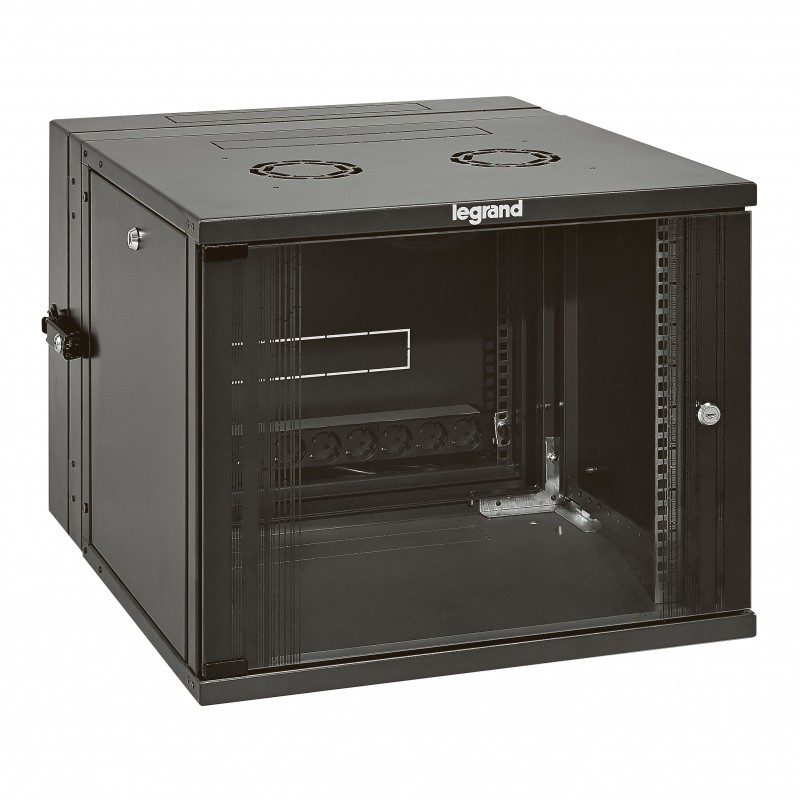

Linkeo pivoting 19" cabinet with pivoting body - capacity 15U - dimensions 738x600x610 mm - ready-assembled
19" pivoting mural- Fixed panels- Prof. 610mm- 12U- W. 610mm- Load 45Kg
Cabinet enclosures > Network cabinet
ENCLOSURES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)378.138
- Weight (g)42 000.00
- Cabinet composed of:
- base (wall fixing), can accept 19'' PDU
- pivoting body allowing free access to the rear of the cabinet to facilitate installation and maintenance. Reversible pivoting direction. Delivered ready-assembled
- Depth 610 mm
- Capacity: : 15 U
- Height: : 738 mm
- Width: : 600 mm
- Loading capacity: : 45 kg
- IP 20 - IK 08
- Equipped with:
- 1 reversible door made of screen-printed safety glass and with integrated lock
- 2 x 19'' uprights with U marking and adjustable in depth
- 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
- panels with automatic grounding (ready assembled version)
- earthing kit (flatpack version)
- Anthracite grey RAL 7016
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 759 mm |
| Model (EF000010) | With swing frame |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of height units (EF003561) | 15 |
| Material (EF002169) | Steel |
| With front door (EF007377) | Yes |
| Number of doors (EF000122) | 1 |
| Mounting level (EF006795) | Front |
| Surface finishing (EF006569) | Powder coated |
| Type of profile rail (EF006796) | L-shaped |
| Modular spacing (EF008458) | 482.6 mm (19 inch) |
| Demountable (EF007551) | Yes |
| With roof plate (EF007375) | Yes |
| With earthing (EF007376) | Yes |
| Degree of protection (NEMA) (EF011959) | Other |
| With sidewall (EF007383) | Yes |
| Depth (EF000049) | 615 mm |
| Max. load capacity (EF000258) | 45 kg |
| Colour (EF000007) | Grey |
| Type of ventilation (EF000249) | Passive |
| RAL-number (EF000116) | 7016 |
| Width (EF000008) | 600 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 646223 EN_646221.pdf | 568 Kbytes |
 |
