LEGRANDENCLOSURES646221 LEGRAND LKO-ARM MURAL 19P 9U PIVOT

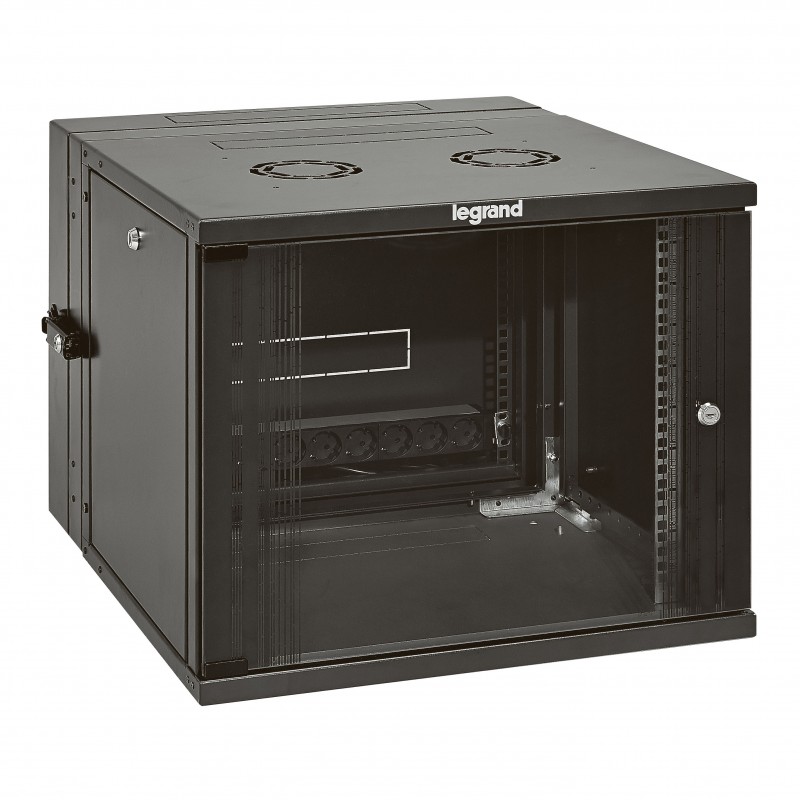

LEGRAND 646221 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

646221 LEGRAND LKO-ARM MURAL 19P 9U PIVOT

Code: 646221

Manufacturer: LEGRAND

Description:

LKO-ARM MURAL 19P 9U PIVOT
LKO-ARM WALL 19P 9U PIVOT
Linkeo pivoting 19" cabinet with pivoting body - capacity 9U - dimensions 471x600x610 mm - ready-assembled
19" pivoting mural- Fixed panels- Depth 610mm- 6U- Width. 610mm- Load 27Kg

Categories:

  • Cabinet enclosures > Network cabinet
  • LEGRAND > ENCLOSURES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 600,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)186.386
  • Weight (g)32 000.00
Product characteristics
Linkeo pivoting 19'' cabinets
  • Cabinet composed of:
    • base (wall fixing), can accept 19'' PDU
    • pivoting body allowing free access to the rear of the cabinet to facilitate installation and maintenance. Reversible pivoting direction. Delivered ready-assembled
  • Depth 610 mm
  • Capacity: : 9 U
  • Height: : 471 mm
  • Width: : 600 mm
  • Loading capacity: : 27 kg
General characteristics
Linkeo 19'' and 10'' wall-mounting cabinets
  • IP 20 - IK 08
  • Equipped with:
    • 1 reversible door made of screen-printed safety glass and with integrated lock
    • 2 x 19'' uprights with U marking and adjustable in depth
    • 3 pre-cut cable entries (top, bottom and rear). 1 brush for a cable entry. Top perforations for natural ventilation
    • panels with automatic grounding (ready assembled version)
    • earthing kit (flatpack version)
  • Anthracite grey RAL 7016

ETIM for 646221 Cabinets and enclosures (EC002500)

Feature nameHeight (EF000040)
Feature value492 mm
Feature nameModel (EF000010)
Feature valueWith swing frame
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of height units (EF003561)
Feature value9
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameWith front door (EF007377)
Feature valueYes
Feature nameNumber of doors (EF000122)
Feature value1
Feature nameMounting level (EF006795)
Feature valueFront
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameType of profile rail (EF006796)
Feature valueL-shaped
Feature nameModular spacing (EF008458)
Feature value482.6 mm (19 inch)
Feature nameDemountable (EF007551)
Feature valueYes
Feature nameWith roof plate (EF007375)
Feature valueYes
Feature nameWith earthing (EF007376)
Feature valueYes
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWith sidewall (EF007383)
Feature valueYes
Feature nameDepth (EF000049)
Feature value615 mm
Feature nameMax. load capacity (EF000258)
Feature value27 kg
Feature nameColour (EF000007)
Feature valueGrey
Feature nameType of ventilation (EF000249)
Feature valuePassive
Feature nameRAL-number (EF000116)
Feature value7016
Feature nameWidth (EF000008)
Feature value600 mm

DATASHEET - PDF

Title
Size
Type
646221 EN_646221.pdf
568 Kbytes
