644214 LEGRAND 10 C20-C19 LOCK 1.5M B CABLES
644214
LEGRAND
10 C20-C19 LOCK 1.5M B CABLES

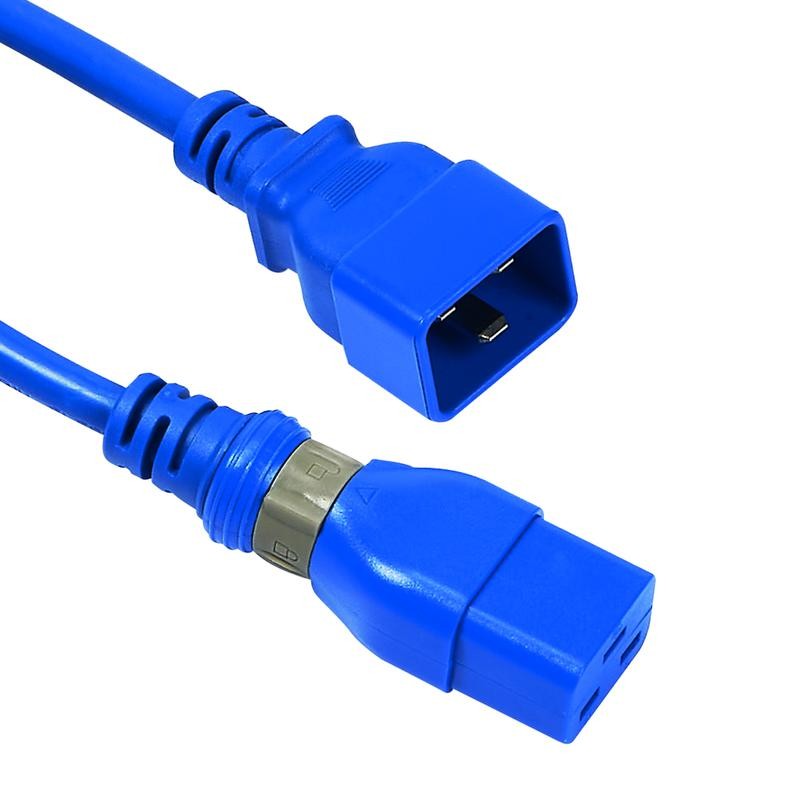

Set of 10 C20-C19 1.5m power cables with blue plug lock
Batteries, chargers and power cords > Power cord
VARIOUS VDI
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Connection 1 | Other |
|---|---|
| Cable entry connection 1 | Straight |
| Connection 2 | Other |
| Connection type according to IEC 60320, connection 2 | C1 |
| Cable entry connection 2 | Straight |
| System of connectors connected to the system | No |
| Number of threads | 3 |
| Nominal Conductor Section | 1.5 mm² |
| Longitude | 1.5 m |
| Cover material | Polyvinyl chloride (PVC) |
| Temperature resistance | -20-70 °C |
| Nominal intensity | 10 A |
|---|---|
| Nominal Voltage | 250-250 V |
| Outer Cover Color | Blue |
| Coiled cable | No |
| With cable switch | No |
| Outer diameter approx. | 8.5 mm |
| Reaction class to fire according to EN 13501-6 | none |
| Reaction to fire according to EN 13501-6: Smoke production | none |
| Reaction to fire according to EN 13501-6: Flammable drops/particles | none |
| Reaction to fire according to EN 13501-6: Acidity | none |
| Halogen-free | No |
| Feature Name | Feature Value |
|---|---|
| Number of cores (EF001792) | 3 |
| Nominal current (EF000001) | 10 A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579) | None |
| Reaction-to-fire according to EN 13501-6: Smoke production (EF011578) | None |
| Connection 2 (EF000322) | Other |
| Reaction-to-fire according to EN 13501-6: Class (EF011577) | None |
| Connection 1 (EF000321) | Other |
| System-oriented connector system (EF008067) | No |
| Nominal cross section conductor (EF000060) | 1.5 mm² |
| Temperature resistance (EF003788) | -20 °C |
| Outer diameter approx. (EF003921) | 8.5 mm |
| Material outer sheath (EF001625) | Polyvinyl chloride (PVC) |
| Reaction-to-fire according to EN 13501-6: Acidity (EF011580) | None |
| Spiralized cable (EF003787) | No |
| Nominal voltage (EF005127) | 250 V |
| With cord switch (EF006031) | No |
| Colour outer sheath (EF001618) | Blue |
| Cable entry connection 1 (EF016788) | Straight |
| Cable entry connection 2 (EF016789) | Straight |
| Connection type according to IEC 60320, connection 1 (EF016687) | C19 |
| Connection type according to IEC 60320, connection 2 (EF016688) | C20 |
| Length (EF001438) | 1.5 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 644214 EN_644201.pdf | 101 Kbytes |
 |
