LEGRANDVARIOUS VDI644209 LEGRAND 10 C20-C19 LOCK 2M RG CABLES
LEGRAND 644209 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

644209 LEGRAND 10 C20-C19 LOCK 2M RG CABLES

Code: 644209

Manufacturer: LEGRAND

Description:

10 C20-C19 LOCK 2M RG CABLES

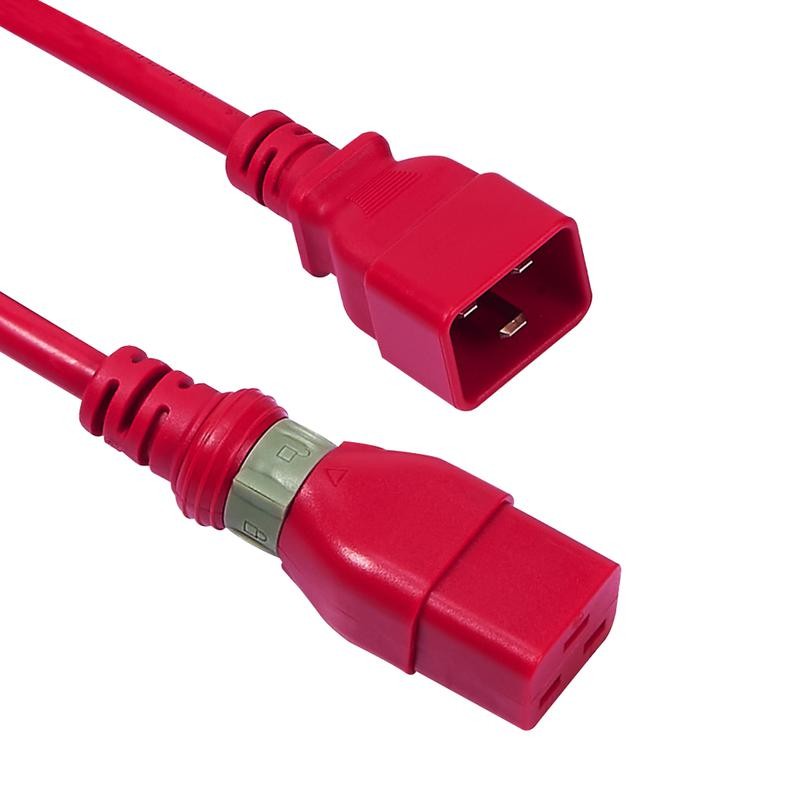

Set of 10 C20-C19 2m power cables with red plug lock

Categories:

  • Batteries, chargers and power cords > Power cord
  • LEGRAND > VARIOUS VDI

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 301,94 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Power cables used to connect active equipment (servers) to a PDU. The unique C19 plug swivel mechanism, which fits any standard C20 input, prevents accidental disconnection from the server.
Connection 1Other
Cable entry connection 1Straight
Connection 2Other
Cable entry connection 2Straight
System of connectors connected to the systemNo
Number of threads3
Nominal Conductor Section1.5 mm²
Longitude2 m
Cover materialPolyvinyl chloride (PVC)
Temperature resistance-20-70 °C
Nominal intensity10 A
Nominal Voltage250-250 V
Outer Cover ColorRed
Coiled cableNo
With cable switchNo
Outer diameter approx.8.5 mm
Reaction class to fire according to EN 13501-6none
Reaction to fire according to EN 13501-6: Smoke productionnone
Reaction to fire according to EN 13501-6: Flammable drops/particlesnone
Reaction to fire according to EN 13501-6: Aciditynone
Halogen-freeNo

ETIM for 644209 Batteries chargers and power cords (EC001576)

Feature nameNumber of cores (EF001792)
Feature value3
Feature nameNominal current (EF000001)
Feature value10 A
Feature nameReaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579)
Feature valueNone
Feature nameReaction-to-fire according to EN 13501-6: Smoke production (EF011578)
Feature valueNone
Feature nameConnection 2 (EF000322)
Feature valueOther
Feature nameReaction-to-fire according to EN 13501-6: Class (EF011577)
Feature valueNone
Feature nameConnection 1 (EF000321)
Feature valueOther
Feature nameSystem-oriented connector system (EF008067)
Feature valueNo
Feature nameNominal cross section conductor (EF000060)
Feature value1.5 mm²
Feature nameTemperature resistance (EF003788)
Feature value-20 °C
Feature nameOuter diameter approx. (EF003921)
Feature value8.5 mm
Feature nameMaterial outer sheath (EF001625)
Feature valuePolyvinyl chloride (PVC)
Feature nameReaction-to-fire according to EN 13501-6: Acidity (EF011580)
Feature valueNone
Feature nameSpiralized cable (EF003787)
Feature valueNo
Feature nameNominal voltage (EF005127)
Feature value250 V
Feature nameWith cord switch (EF006031)
Feature valueNo
Feature nameColour outer sheath (EF001618)
Feature valueRed
Feature nameCable entry connection 1 (EF016788)
Feature valueStraight
Feature nameCable entry connection 2 (EF016789)
Feature valueStraight
Feature nameConnection type according to IEC 60320, connection 1 (EF016687)
Feature valueC19
Feature nameConnection type according to IEC 60320, connection 2 (EF016688)
Feature valueC20
Feature nameLength (EF001438)
Feature value2 m

DATASHEET - PDF

Title
Size
Type
644209 EN_644201.pdf
101 Kbytes
