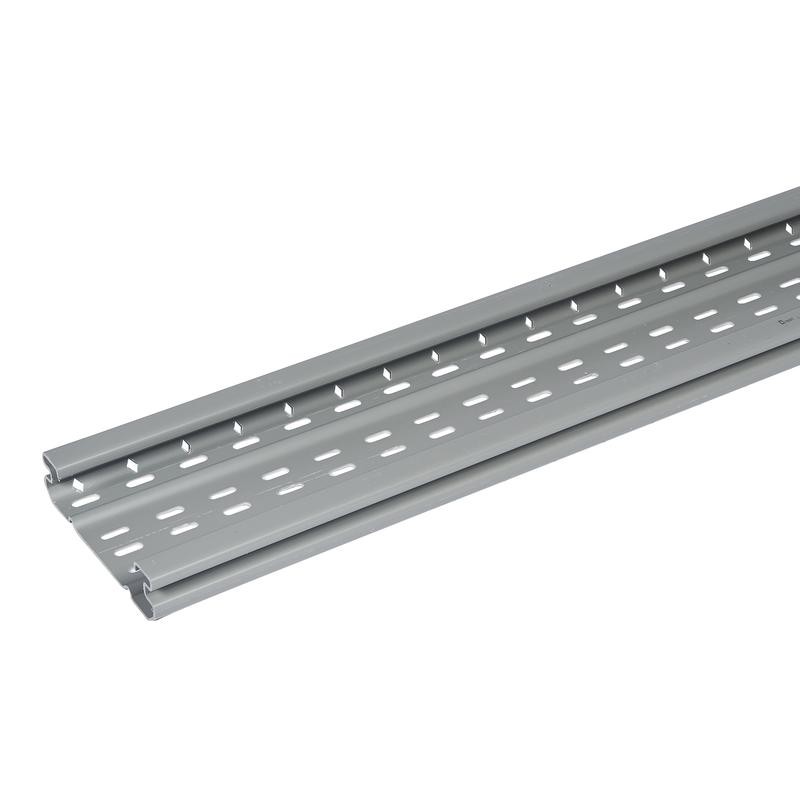

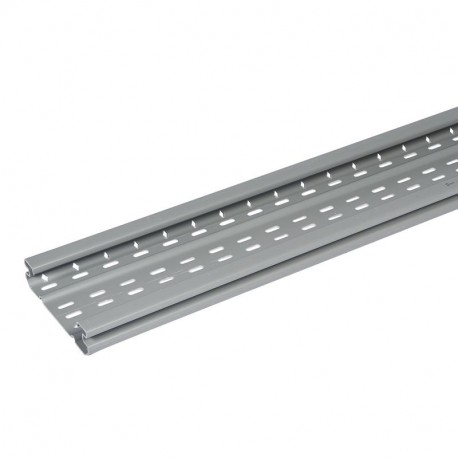

637731 LEGRAND 02B OMEGA-TRAY PERF 200X50
Code: 637731
Manufacturer: LEGRAND
Description:
02B OMEGA-TRAY PERF 200X50
OMEGA-TRAY PERFORATED 200X50
Legrand PVC Cable Tray Perforated 200mm x 50mm x 3m Length
OMEGA cable tray - 200x50 - Perforated - 3m - Grey RAL7030
Categories:
- Cable carrying systems > Cable tray/wide span cable tray
- LEGRAND > OMEGA PVC TRAYS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
- More Info
- ETIM
- Reviews
* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
| Height | 50 mm |
|---|---|
| Width | 200 mm |
| Material thickness | 2.5 mm |
| Length | 3000 mm |
| Usable cross section | 7934 mm² |
| With cover | No |
| Side perforation | No |
| Bottom perforation | Yes |
| NATO-mounting holes | No |
| Model | Without connector |
| Suitable for circuit integrity | No |
|---|---|
| Material | Plastic |
| Operating / setting temperature | -5-60 °C |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Untreated |
| Colour | Grey |
| RAL-number | 7030 |
| Storage temperature | -20-60 °C |
| Halogen free | No |
ETIM for 637731 Cable tray, ladder and wire basket systems (EC000047)
Feature name
Feature value
Feature nameHeight (EF000040)
Feature value50 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial thickness (EF000386)
Feature value2.5 mm
Feature nameBottom perforation (EF004545)
Feature valueYes
Feature nameMaterial quality (EF001257)
Feature valuePolyvinyl chloride (PVC)
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameRAL-number (EF000116)
Feature value7030
Feature nameSuitable for circuit integrity (EF007806)
Feature valueNo
Feature nameWith cover (EF007965)
Feature valueNo
Feature nameNATO-mounting holes (EF006059)
Feature valueNo
Feature nameModel (EF000010)
Feature valueCoupler not included
Feature nameSide perforation (EF001122)
Feature valueNo
Feature nameUseful cross section (EF005140)
Feature value7934 mm²
Feature nameColour (EF000007)
Feature valueGrey
Feature nameLength (EF001438)
Feature value3000 mm
Feature nameWidth (EF000008)
Feature value200 mm
