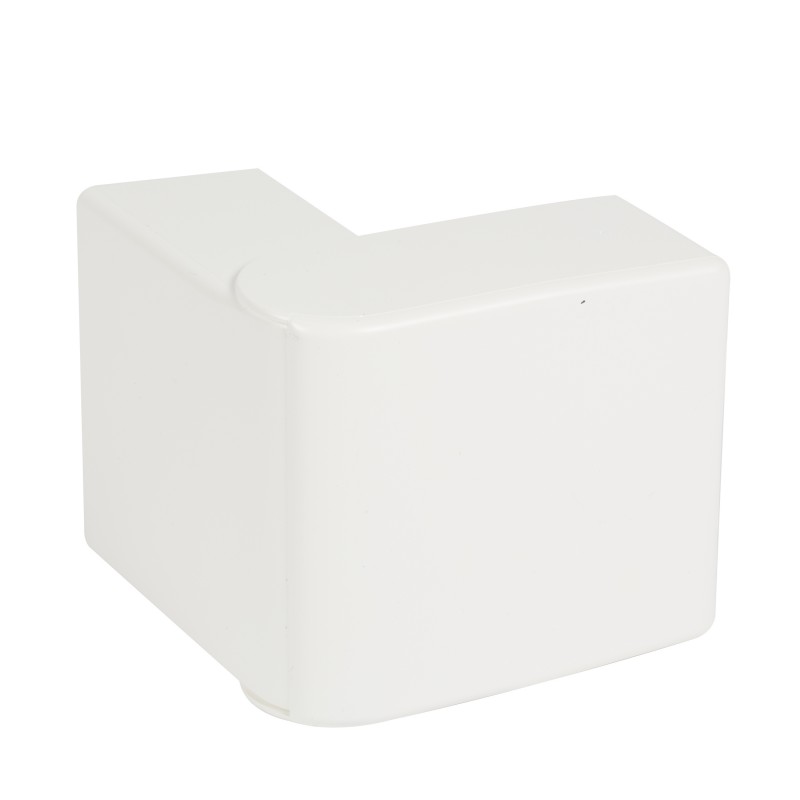

611722 LEGRAND 02B-OUTER ANGLE 100X50 SH
611722
LEGRAND
10
02B-OUTER ANGLE 100X50 SH
Outer angle - for DLP channel Halogen-free 100x50 - White color
External angle for DLP channel Halogen-free 100x50 - White
Installation ducts for wall and ceiling > Outer corner for wall duct
EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Number of tops | 0 |
|---|---|
| Symmetrical | Yes |
| Model | Molded cover |
| Angle | 60-120 ° |
| Material | Plastic |
| Material quality | Acrylonitrile Butadiene Styrene (ABS) |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Colour | White |
| RAL number | 9003 |
| With protective film | No |
| With conduit connector | No |
|---|---|
| Floor mounting hole | No |
| Method of mounting the lids | With separation |
| With cable clamp | No |
| Protection Class (IP) | IP3X |
| Impact resistance | IK07 |
| Operating Temperature | 15-60 °C |
| Width | 122 mm |
| Height | 110 mm |
| Depth | 50 mm |
| Storage temperature | -25-60 °C |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Moulded hood |
| Number of covers (EF004430) | 0 |
| With protective foil (EF005266) | No |
| Degree of protection (IP) (EF005474) | IP3X |
| Material (EF002169) | Plastic |
| Bottom perforation (EF004545) | No |
| Material quality (EF001257) | Acrylonitrile butadiene styrene (ABS) |
| Halogen free (EF000025) | Yes |
| Angle (EF005434) | 60 ° |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| Depth (EF000049) | 50 mm |
| Operating temperature (EF001742) | 15 °C |
| Mounting method cover (EF002922) | Spanned |
| Symmetric (EF005329) | Yes |
| Surface protection (EF000139) | Untreated |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9003 |
| Width (EF000008) | 100 mm |
| With cable fixing clip (EF004815) | No |
| With duct connector (EF004826) | No |
