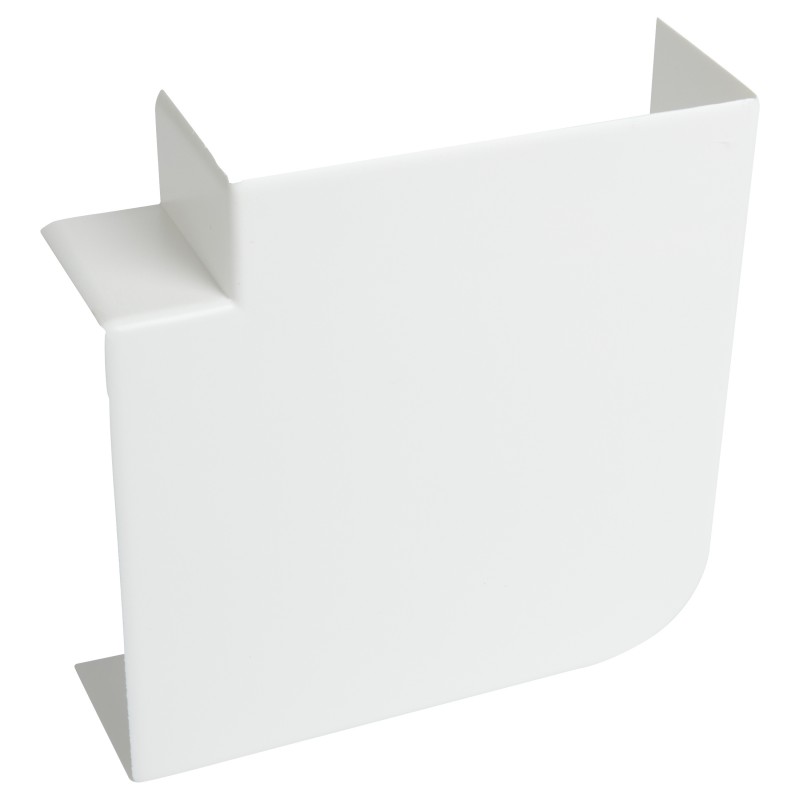

611713 LEGRAND DLPSH-ANGLE PLANE 130X50
611713
LEGRAND
5
DLPSH-ANGLE PLANE 130X50
Angle plane 90° - for channel DLP halogen-free 130x50 - white color
Flat angle 90° for DLP channel Halogen-free 130x50 - White
Installation ducts for wall and ceiling > Flat bend for wall duct
EUROQUINT INSTALLATION CABLE TRUNKING
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Angles to channel 130x50 - Angle plane 90°General characteristics
Accessories for Channels DLP halogen-free - IP 40 - IK 07, meet the standard UNE en 50085-2-1| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP3X |
| Material (EF002169) | Plastic |
| Bottom perforation (EF004545) | No |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Angle (EF005434) | 90 ° |
| Direction (EF005209) | Rising/descending |
| Operating temperature (EF001742) | 15 °C |
| Symmetric (EF005329) | Yes |
| Surface protection (EF000139) | Untreated |
| With cable fixing clip (EF004815) | No |
| Model (EF000010) | Base unit and cover |
| Number of covers (EF004430) | 0 |
| With protective foil (EF005266) | No |
| Impact strength (EF004293) | IK07 |
| Anti-bacterial treatment (EF023790) | No |
| Depth (EF000049) | 50 mm |
| Mounting method cover (EF002922) | Spanned |
| Colour (EF000007) | White |
| Width (EF000008) | 130 mm |
| With duct connector (EF004826) | No |
