LEGRANDEVOLUTIONARY DLP INSTALLATION CABLE TRUNKING611712 LEGRAND 02B-FLAT ANGLE 100X50 SH

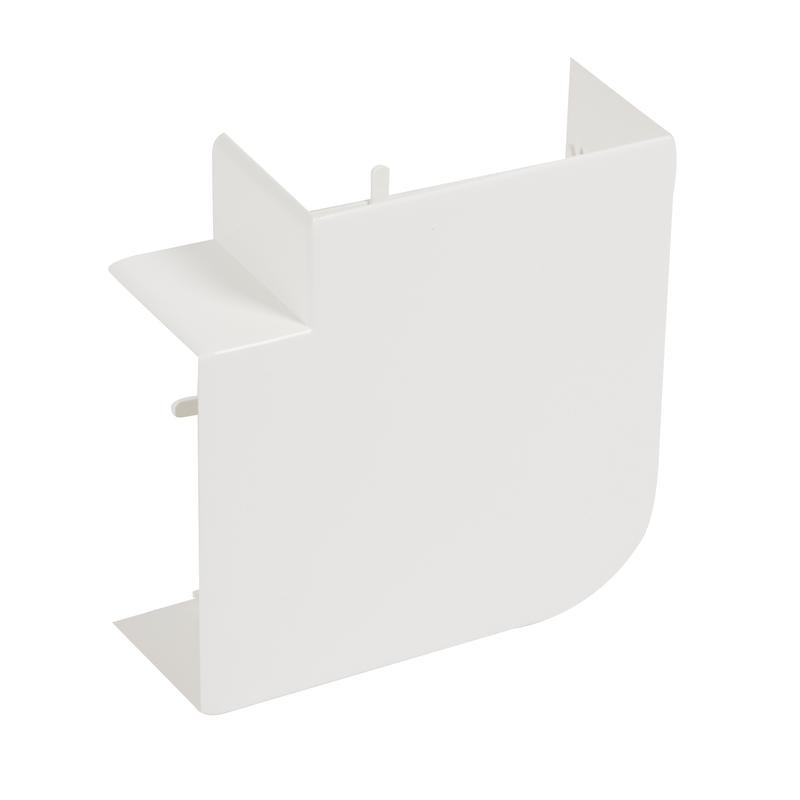

LEGRAND 611712 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

611712 LEGRAND 02B-FLAT ANGLE 100X50 SH

Code: 611712

Manufacturer: LEGRAND

Description:

02B-FLAT ANGLE 100X50 SH
Flat angle 90° - for DLP channel Halogen-free 100x50 - White color
Flat angle 90° for DLP channel Halogen-free 100x50 - White

Categories:

  • Installation ducts for wall and ceiling > Flat bend for wall duct
  • LEGRAND > EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 192,46 €

Unit Price: 19,246 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Fixed flat support for DLP channel of dimensions 100x50mm, with a flat angle of 90 degrees. This bracket is supplied with an adapter that makes it easy to attach the accessory to the channel. It respects the protection index and improves aesthetics by covering the cut. Available in white and halogen-free.
Number of tops0
addressIncreasing/decreasing
SymmetricalYes
ModelTop and bottom
Angle90-90 °
MaterialPlastic
Material qualityAcrylonitrile Butadiene Styrene (ABS)
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
ColourWhite
RAL number9003
With protective filmNo
With conduit connectorNo
Floor mounting holeNo
Method of mounting the lidsWith separation
With cable clampNo
Protection Class (IP)IP3X
Impact resistanceIK07
Operating Temperature15-60 °C
Width135 mm
Height52 mm
Depth50 mm
Storage temperature-25-60 °C

ETIM for 611712 Cable trunking systems for wall and ceilings (EC000876)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP3X
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameBottom perforation (EF004545)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valueAcrylonitrile butadiene styrene (ABS)
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameAngle (EF005434)
Feature value90 °
Feature nameDirection (EF005209)
Feature valueRising/descending
Feature nameOperating temperature (EF001742)
Feature value15 °C
Feature nameSymmetric (EF005329)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameWith cable fixing clip (EF004815)
Feature valueNo
Feature nameModel (EF000010)
Feature valueBase unit and cover
Feature nameNumber of covers (EF004430)
Feature value0
Feature nameWith protective foil (EF005266)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameDepth (EF000049)
Feature value50 mm
Feature nameMounting method cover (EF002922)
Feature valueSpanned
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value100 mm
Feature nameWith duct connector (EF004826)
Feature valueNo
