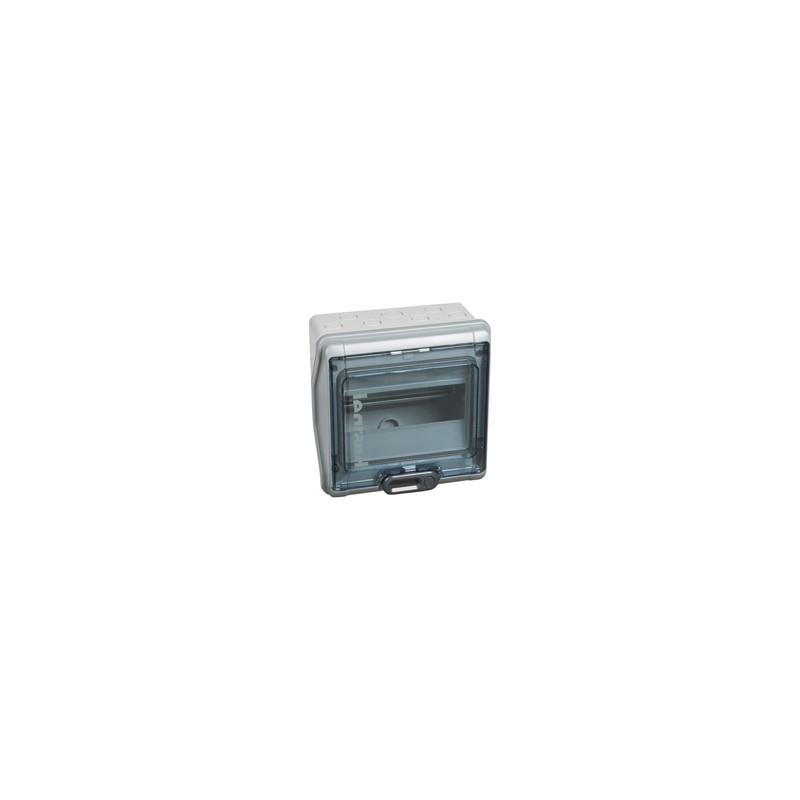

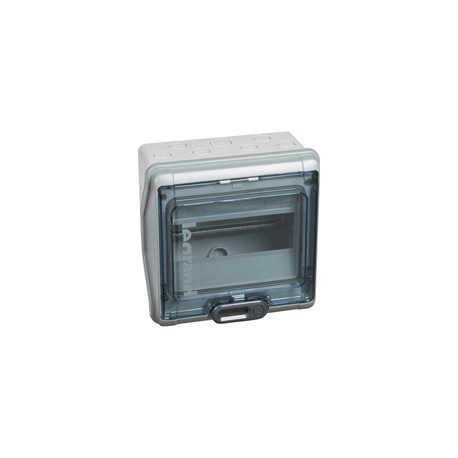

601998 LEGRAND BOX MOD. WATERPROOF IP65 8 MOD
601998
LEGRAND
BOX MOD. WATERPROOF IP65 8 MOD
Cabinets PLEXO³ - IP65 - IK09 - 8 modules - 1 row
Plexo³ waterproof modular box - IP65- IK09 - 8mod - 1 row
Distribution boards > Small distribution board
DIN MODULAR BOXES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)6
- Volume (dm3)32.852
- Weight (g)4 550.00
- Number of rows : 1
- Number of modules : 8
- Self-extinguishing: resistance to incandescent wire 650°C.
- Allows to achieve assemblies conform to IEC 61 439 - 3
- Weatherproof cabinets - IP 65 - IK 09 - Class II
- Door and cabinet fully reversible. Removable chassis and faceplates from 2-row versions up
- 2-position rail for modular products and moulded cases. Spacing between rails 150 mm
- Can be fitted with perforated plates and solid faceplates for mounting non-modular products
- Lockable door handle, sealable cover and faceplate
- Shock-resistant polystyrene material
- Box colour light grey L750A, cover colour dark grey R746A
- Supplied without terminal blocks
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 200 mm |
| Type of door (EF004464) | EV000426 |
| Inner depth (EF001131) | 48.5 mm |
| Transparent cover/door (EF006244) | Yes |
| Type of closure (EF004462) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | No |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 1 |
| Cover model (EF009212) | Closed |
| Signal passing door (EF015941) | Yes |
| RAL-number (EF000116) | 7046 |
| Built-in depth (EF000218) | 111.6 mm |
| Type of covering (EF000339) | Door |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| Width in number of modular spacings (EF002950) | 8 |
| Built-in height (EF000332) | 196 mm |
| EMC-version (EF001062) | No |
| Neutral terminal block (EF015777) | No |
| Earthing terminal block (EF015776) | No |
| Depth (EF000049) | 115.6 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 200 mm |
| Built-in width (EF000846) | 196 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 601998 EN_601998.pdf | 1 Mbytes |
 |
