LEGRANDDIN MODULAR BOXES601996 LEGRAND BOX MOD. IP65 WATERPROOF 6 MOD

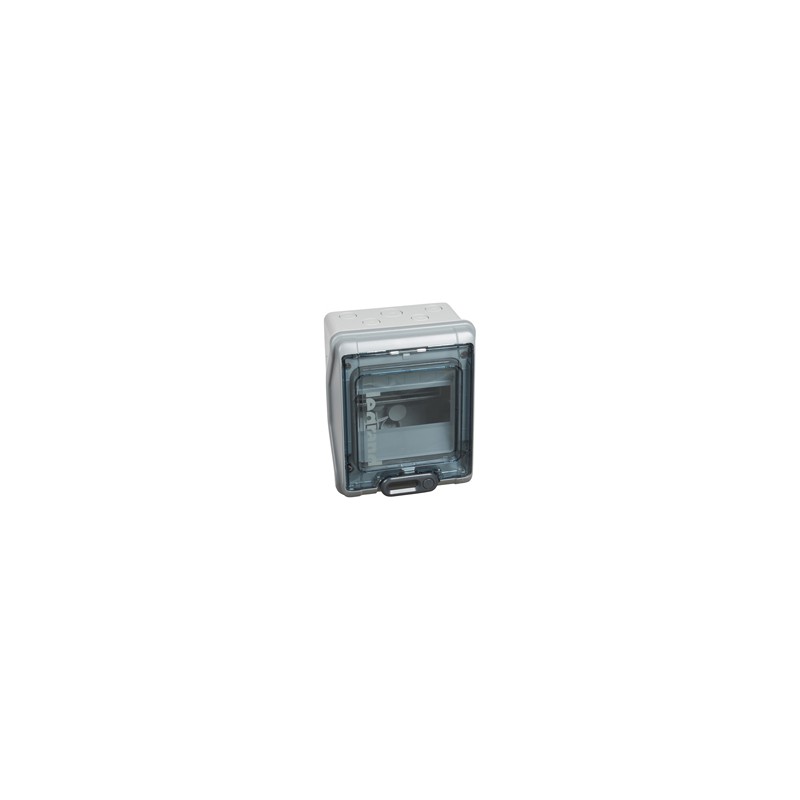

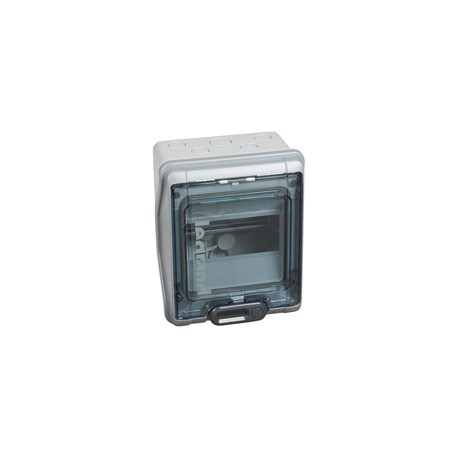

LEGRAND 601996 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

601996 LEGRAND BOX MOD. IP65 WATERPROOF 6 MOD

Code: 601996

Manufacturer: LEGRAND

Description:

BOX MOD. IP65 WATERPROOF 6 MOD
BOX MOD. WATERPROOF IP65 6 MOD
Cabinets PLEXO³ - IP65 - IK09 - 6 modules - 1 row
Plexo³ Waterproof Modular Box - IP65- IK09 - 6mod - 1 row

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > DIN MODULAR BOXES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 121,03 €

Unit Price: 20,172 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)6
  • Volume (dm3)27.055
  • Weight (g)3 882.00
Product characteristics
Cabinets 2 to 8 modules
  • Number of rows : 1
  • Number of modules : 6
General characteristics
Plexo³ - IP 65 weatherproof cabinets, multifunction sleeves and accessories
  • Self-extinguishing: resistance to incandescent wire 650°C.
  • Allows to achieve assemblies conform to IEC 61 439 - 3
  • Weatherproof cabinets - IP 65 - IK 09 - Class II
  • Door and cabinet fully reversible. Removable chassis and faceplates from 2-row versions up
  • 2-position rail for modular products and moulded cases. Spacing between rails 150 mm
  • Can be fitted with perforated plates and solid faceplates for mounting non-modular products
  • Lockable door handle, sealable cover and faceplate
  • Shock-resistant polystyrene material
  • Box colour light grey L750A, cover colour dark grey R746A
  • Supplied without terminal blocks

ETIM for 601996 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value200 mm
Feature nameType of door (EF004464)
Feature valueEV000426
Feature nameInner depth (EF001131)
Feature value48.5 mm
Feature nameTransparent cover/door (EF006244)
Feature valueYes
Feature nameType of closure (EF004462)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNumber of rows (EF000266)
Feature value1
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameSignal passing door (EF015941)
Feature valueYes
Feature nameRAL-number (EF000116)
Feature value7046
Feature nameBuilt-in depth (EF000218)
Feature value111.6 mm
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value6
Feature nameBuilt-in height (EF000332)
Feature value196 mm
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameNeutral terminal block (EF015777)
Feature valueNo
Feature nameEarthing terminal block (EF015776)
Feature valueNo
Feature nameDepth (EF000049)
Feature value115.6 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value164 mm
Feature nameBuilt-in width (EF000846)
Feature value160 mm

DATASHEET - PDF

Title
Size
Type
601996 EN_601996.pdf
1 Mbytes
