LEGRANDDIN MODULAR BOXES601838 LEGRAND BOX MOD. IP65 WATERPROOF 4X18MOD

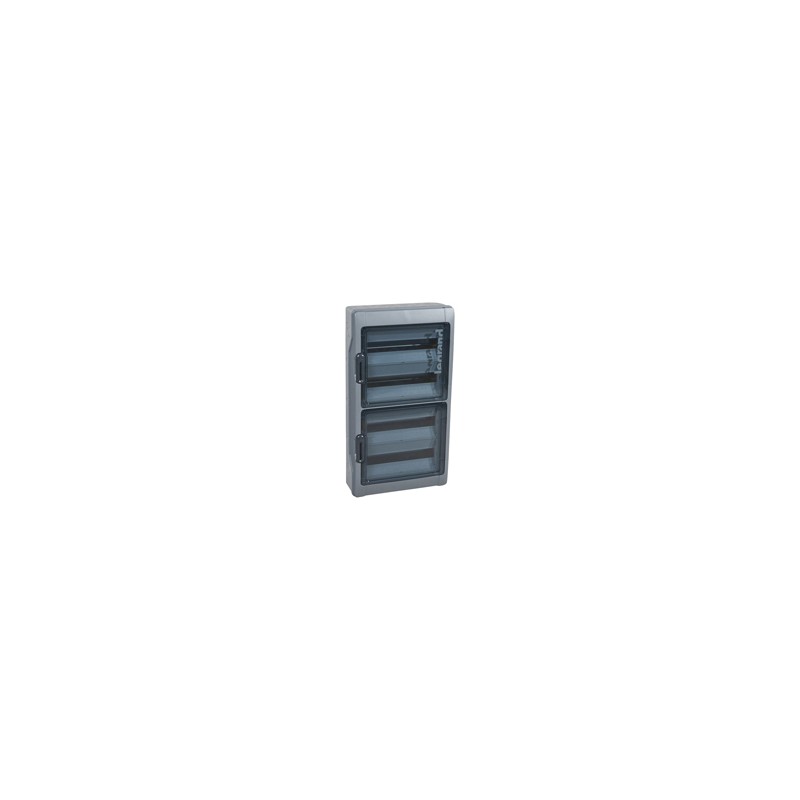

LEGRAND 601838 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

601838 LEGRAND BOX MOD. IP65 WATERPROOF 4X18MOD

Code: 601838

Manufacturer: LEGRAND

Description:

BOX MOD. IP65 WATERPROOF 4X18MOD
BOX MOD. WATERPROOF IP65 4X18MOD
Cabinets PLEXO³ - IP65 - IK09 - 4 rows - 18 modules
Plexo³ waterproof modular box - IP65- IK09 - 4 rows of 18mod

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > DIN MODULAR BOXES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 257,07 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)69.99
  • Weight (g)8 274.00
Product characteristics
Cabinets 18 modules per row
  • Number of rows : 4
General characteristics
Plexo³ - IP 65 weatherproof cabinets, multifunction sleeves and accessories
  • Self-extinguishing: resistance to incandescent wire 650°C.
  • Allows to achieve assemblies conform to IEC 61 439 - 3
  • Weatherproof cabinets - IP 65 - IK 09 - Class II
  • Door and cabinet fully reversible. Removable chassis and faceplates from 2-row versions up
  • 2-position rail for modular products and moulded cases. Spacing between rails 150 mm
  • Can be fitted with perforated plates and solid faceplates for mounting non-modular products
  • Lockable door handle, sealable cover and faceplate
  • Shock-resistant polystyrene material
  • Box colour light grey L750A, cover colour dark grey R746A
  • Supplied without terminal blocks

ETIM for 601838 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value822 mm
Feature nameType of door (EF004464)
Feature valueEV000426
Feature nameInner depth (EF001131)
Feature value78 mm
Feature nameTransparent cover/door (EF006244)
Feature valueYes
Feature nameType of closure (EF004462)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNumber of rows (EF000266)
Feature value4
Feature nameCover model (EF009212)
Feature valueClosed
Feature nameSignal passing door (EF015941)
Feature valueYes
Feature nameRAL-number (EF000116)
Feature value7046
Feature nameBuilt-in depth (EF000218)
Feature value157 mm
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value18
Feature nameBuilt-in height (EF000332)
Feature value818 mm
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameNeutral terminal block (EF015777)
Feature valueNo
Feature nameEarthing terminal block (EF015776)
Feature valueNo
Feature nameDepth (EF000049)
Feature value161 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value448 mm
Feature nameBuilt-in width (EF000846)
Feature value444 mm

DATASHEET - PDF

Title
Size
Type
601838 EN_601838.pdf
1 Mbytes
