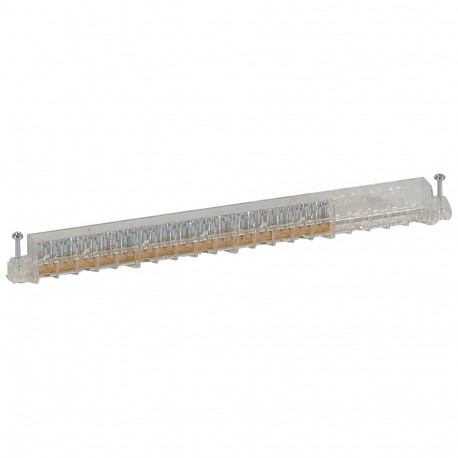

LEGRAND 601292 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

601292 LEGRAND EARTH TERMINAL 30 HOLES

Code: 601292

Manufacturer: LEGRAND

Description:

EARTH TERMINAL 30 HOLES
TERMINAL BLOCK EARTH-30 HOLES
Terminal block - earth - 30 holes
30-connection earthing terminal blocks

Categories:

  • Energy distribution systems > Rail terminal bar
  • LEGRAND > SPLITTERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 153,81 €

Unit Price: 15,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)10
  • Volume (dm3)2.35
  • Weight (g)1 318.00
Product characteristics
Accessories
Terminal blocks for 1, 2, 3 and 4 rows of 12 modules
General characteristics
Surface mounting cabinets Nedbox - 8 to 48 modules
  • IP 40 - IK 07 with door
  • IP 30 - IK 05 without door
  • Class II
  • White RAL 9003
  • Allows to achieve assemblies conform to IEC 61439-3
  • Self extinguishing 650° C
  • Polysterene material
  • Can be equipped with reversible plastic or metal door
  • Chassis can be clipped removed and tipped back to facilitate cabling
  • Supplied without terminal blocks

ETIM for 601292 Power distribution systems (EC000275)

Feature nameHeight (EF000040)
Feature value14 mm
Feature nameNominal current (EF000001)
Feature value76 A
Feature nameConnection type (EF000124)
Feature valueScrewing
Feature nameMounting method (EF000003)
Feature valueScrew
Feature nameContact safe (EF004521)
Feature valueYes
Feature nameSuitable for extra fine-strand conductors (EF016328)
Feature valueNo
Feature nameSuitable for extra fine-strand conductors without cable end sleeve (EF016329)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameConductor cross section, output (EF016331)
Feature value1.5 mm²
Feature nameSuitable for fine strand conductors without cable end sleeve (EF016327)
Feature valueNo
Feature nameSuitable for stranded conductors (EF007818)
Feature valueYes
Feature nameDepth (EF000049)
Feature value16.5 mm
Feature nameConductor cross section, input (EF016330)
Feature value1.5 mm²
Feature nameSuitable for fine strand conductors (EF007804)
Feature valueYes
Feature nameWidth (EF000008)
Feature value276 mm
Feature nameSuitable for solid conductors (EF007816)
Feature valueYes
Feature nameNumber of outputs (EF000319)
Feature value29
Feature nameNumber of inputs (EF000318)
Feature value1
