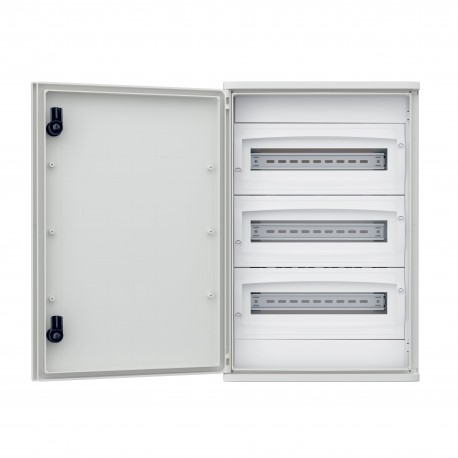

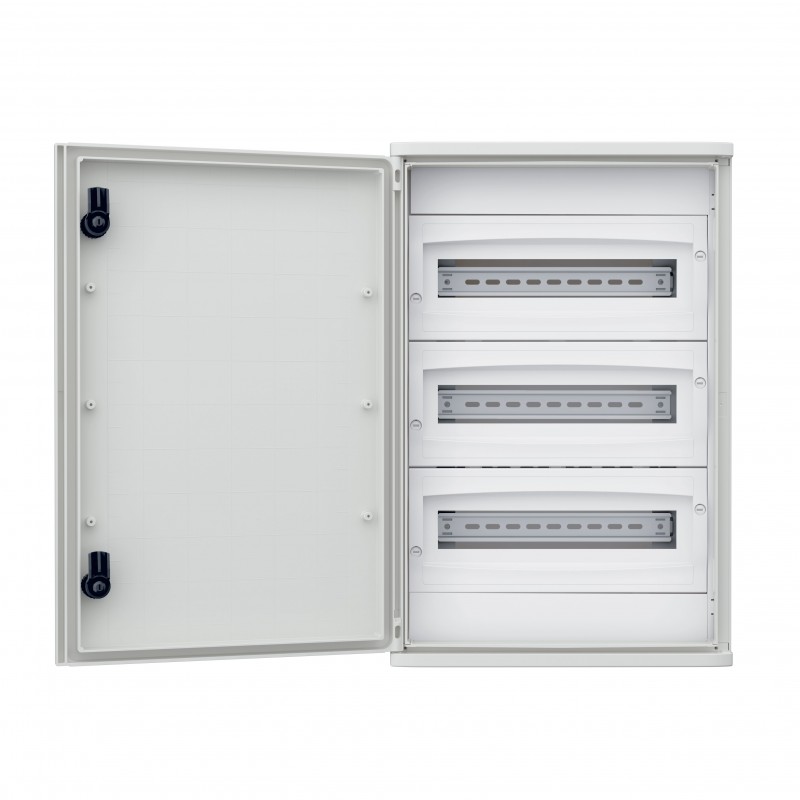

433002 LEGRAND PLASTIC MOD CHASSIS 500X500
433002
LEGRAND
PLASTIC MOD CHASSIS 500X500
Chassis ready to use with insulating faceplates RAL 7035 for cabinets 500x500mm - 63 modules
Ready-to-use modular chassis for cabinets - 500x500 - plastic
Distribution boards > Panel for distribution board
ATLANTIC-MARINA CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)11.55
- Weight (g)3 506.00
- Supplied complete with 15 mm depth symmetrical rails, uprights and faceplates
- Self extinguishing 750 °C acc. to IEC EN 60695-2-11
- Single row faceplates, height 150 mm
- Independent of the depth of the cabinets
- 63 modules (3 rows of 21)
- Supplied with 1 blanking plate
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 500 mm |
| With cover (EF000361) | Yes |
| Number of modular spacings per DIN-rail (EF001233) | 21 |
| Number of DIN-rails (EF001232) | 3 |
| With N-PE clamp (EF007962) | No |
| Depth (EF000049) | 85 mm |
| Type of covering (EF000339) | Viewing window |
| With mounting plate (EF000118) | No |
| Width (EF000008) | 500 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 433002 EN_433002.pdf | 5 Mbytes |
 |
