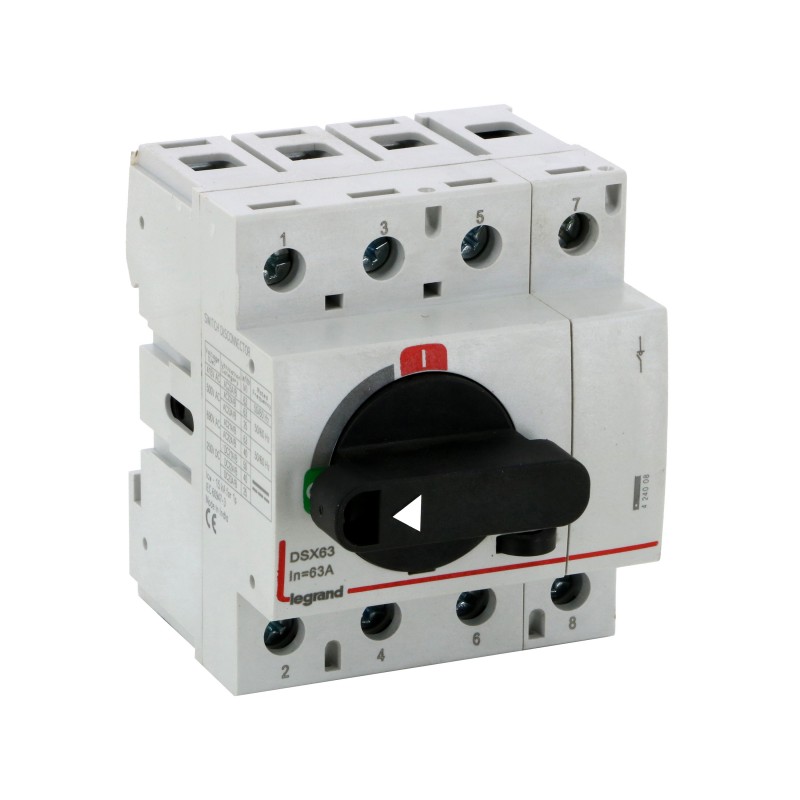

424008 LEGRAND DSX SD DIN DISCONNECTOR 4P 63A
424008
LEGRAND
DSX SD DIN DISCONNECTOR 4P 63A
DSX SD DIN - 63A - 4P disconnect switch - front direct control - black handle
DSX SD DIN - 63A - 4P disconnect switch - direct front control - black
Low-voltage industrial components > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Number of switches | 1 |
| Maximum Rated Operating Voltage Ue AC | 690 V |
| Permanent nominal current Iu | 63 A |
| Permanent current assigned to AC-23, 400 V | 63 A |
| Permanent current assigned with AC-21, 400 V | 63 A |
| Icw short-duration rated current resistance | 1.5 kA |
| Rated operating power at 400V AC-23 | 25.2 kW |
| Conditional Short-Circuit Current Rating Iq | 3 kA |
| Number of poles | 4 |
| Number of auxiliary contacts normally closed | 4 |
| Number of auxiliary contacts normally open | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Optional Tension Release | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Execution of the actuator element | Rotary knob (knob) |
| Interlockable | No |
|---|---|
| Main Current Circuit Connection Type | Cable clamp |
| Degree of protection (IP), front | IP20 |
| Degree of protection (NEMA) | 1 |
| Width | 70 mm |
| Height | 83 mm |
| Depth | 67.2 mm |
| Operating Temperature | -25-70 °C |
| Storage temperature | -25-70 °C |
| Type of voltage | AC/DC |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal capacity | 25-70 mm² |
| Connection type | Cable |
| Label Space/Print Area | No |
| Contains battery and/or accumulator | No |
| IEC Designation | Not Applicable , Not Applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Item Composition (Pack1) | Not applicable |
| Battery or accumulator (Pack2) | Not applicable |
| Item Composition (Pack2) | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Height (EF000040) | 83 mm |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Rated permanent current at AC-23, 400 V (EF011777) | 63 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Interlockable (EF006281) | No |
| Rated short-time withstand current lcw (EF007050) | 1.5 kA |
| Voltage release optional (EF007491) | No |
| Degree of protection (NEMA) (EF011959) | 1 |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Cable clamp |
| Version as emergency stop installation (EF006959) | Yes |
| Number of switches (EF005586) | 1 |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Rotating button |
| Conditioned rated short-circuit current Iq (EF001444) | 3 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 25.2 kW |
| Rated permanent current Iu (EF001389) | 63 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Motor drive optional (EF007386) | No |
| Rated permanent current at AC-21, 400 V (EF009165) | 63 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Depth (EF000049) | 67.2 mm |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Width (EF000008) | 70 mm |
