LEGRANDDPX3 MOLDED BOX423875 LEGRAND DPX3 125HP 4P TERMINALS

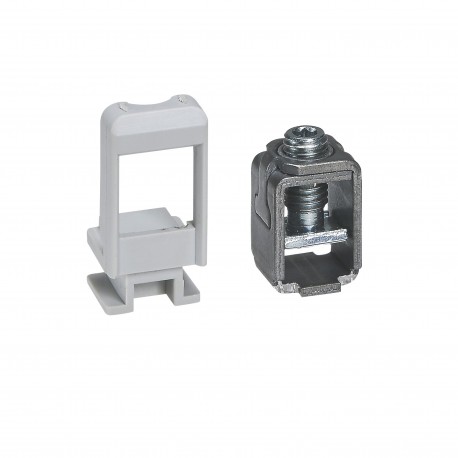

LEGRAND 423875 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

423875 LEGRAND DPX3 125HP 4P TERMINALS

Code: 423875

Manufacturer: LEGRAND

Description:

DPX3 125HP 4P TERMINALS
Cage terminals for Cu/Al cables for DPX³125 HP 4P - set of 4
Set of 4 connection terminals for DPX³ 125 HP - 4P

Categories:

  • Energy distribution systems > Rail terminal bar
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.211
  • Weight (g)117.00
Product characteristics
Connection accessories
Cage terminals
  • For Cu/Al cables, 1 x 50 mm² for flexible and rigid cables
  • Set of 4 terminals for DPX3 125 HP 4P
General characteristics
DPX³ 125 HP - equipment and accessories

ETIM for 423875 Power distribution systems (EC000275)

Feature nameHeight (EF000040)
Feature value24 mm
Feature nameNominal current (EF000001)
Feature value125 A
Feature nameConnection type (EF000124)
Feature valueScrew-/spring clamp connection
Feature nameMounting method (EF000003)
Feature valueScrew
Feature nameContact safe (EF004521)
Feature valueNo
Feature nameSuitable for extra fine-strand conductors (EF016328)
Feature valueYes
Feature nameSuitable for extra fine-strand conductors without cable end sleeve (EF016329)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameSuitable for fine strand conductors without cable end sleeve (EF016327)
Feature valueYes
Feature nameSuitable for stranded conductors (EF007818)
Feature valueYes
Feature nameDepth (EF000049)
Feature value15 mm
Feature nameConductor cross section, input (EF016330)
Feature value2.5 mm²
Feature nameSuitable for fine strand conductors (EF007804)
Feature valueYes
Feature nameWidth (EF000008)
Feature value16 mm
Feature nameSuitable for solid conductors (EF007816)
Feature valueYes
Feature nameNumber of outputs (EF000319)
Feature value0
Feature nameNumber of inputs (EF000318)
Feature value4
