423831 LEGRAND DPX3 250HP 4P TERMINALS
423831
LEGRAND
DPX3 250HP 4P TERMINALS

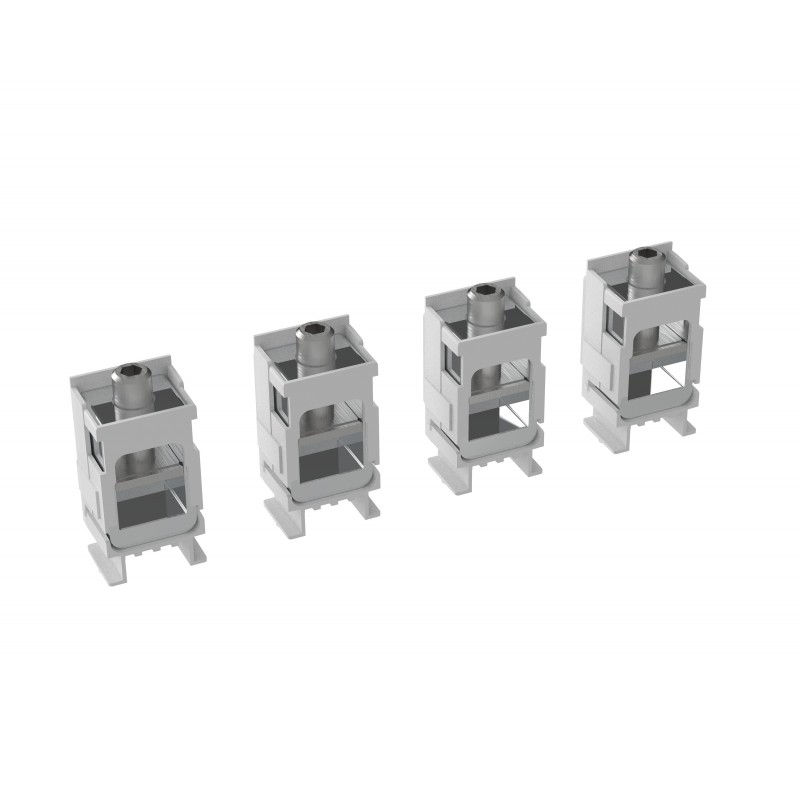

Cage terminals for Cu/Al cables for DPX³250 HP 4P - set of 4
Set of 4 connection terminals for DPX³ 250 HP - 4P
Energy distribution systems > Rail terminal bar
DPX3 MOLDED BOX
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.241
- Weight (g)195.00
Cage terminals
- For Cu/Al cables, 1 x 120 mm² for flexible cables and 1 x 150 mm² for rigid cable
- Set of 4 terminals for DPX3 250 HP 4P
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 38 mm |
| Nominal current (EF000001) | 250 A |
| Connection type (EF000124) | Screw-/spring clamp connection |
| Mounting method (EF000003) | Screw |
| Contact safe (EF004521) | No |
| Suitable for extra fine-strand conductors (EF016328) | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | Yes |
| Number of poles (EF001391) | 4 |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | Yes |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 18 mm |
| Conductor cross section, input (EF016330) | 2.5 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Width (EF000008) | 24 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 0 |
| Number of inputs (EF000318) | 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 423831 EN_423831.pdf | 126 Kbytes |
 |
